User Manual
DRIVING / CONTROLLING THE MODSTER DIGGER
Observe the safety instructions for driving in this manual!
Make yourself familiar with the driving behavior of the model step by step.
Stand behind the model and steer it away from yourself first. The model's response to the controls is
the same as when you would sit in the car driving it.
Let the model drive on you afterwards. The reaction direction is now mirror-inverted to the control
direction.
Start now with simple driving exercises. Gradually increase the driving speed and observe the driving
behavior. Always keep direct visual contact with the model.
Preparing to start
Please pay attention to the switch-on sequence. If this is not adhered to, unintentionally triggered
control commands can be sent to the model, which can lead to damage and injuries.
• Set the on / off switch (12) of the remote control to ON / ON. The remote control LED flashes.
• Set the model's ON / OFF switch (G) to ON. The LED on the remote control now lights up
continuously.

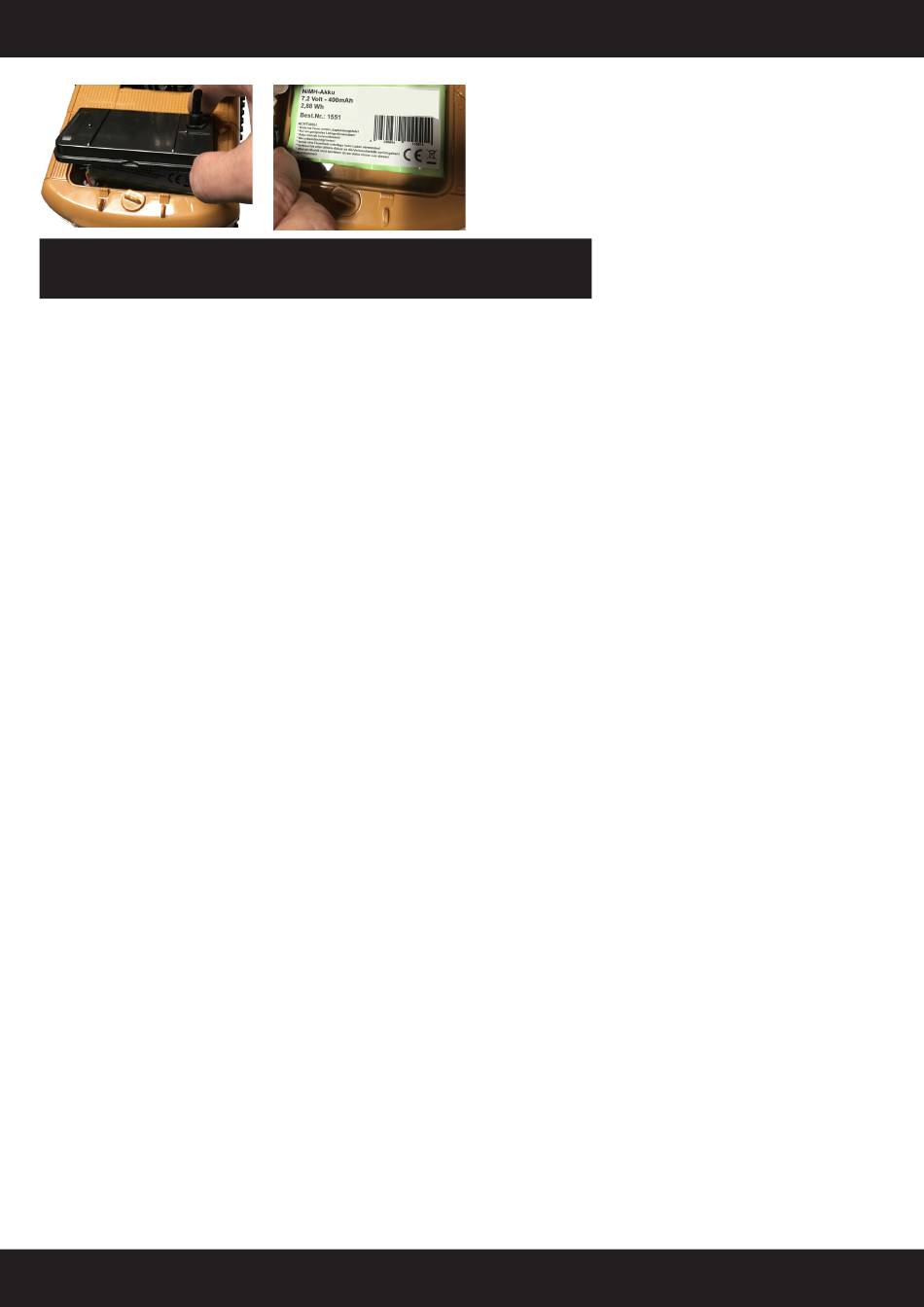

• After driving is completed, switch off in reverse order and remove the drive battery from the model.
Vehicle control system
Overload protection: All functions of the model are equipped with an overload protective coupling. If
the load is too high, this speaks, which is expressed in a rattling noise. If you hear it, immediately stop
the executed control command, to avoid damage.
Demo button (11): The model has a demo mode. If this is activated, the model shows all functions
automatically. You exit the demo mode by executing a control command or by pressing the demo
button (11) again.
Recording function (9): The model has a recording function of control commands. Press button 9 on
the remote control for this. All the control commands, that have now been carried out, are saved and,
after pressing the record button (9) again, the saved commands are carried out automatically.
Driving: The left control stick of the remote control (1) controls the left chain of the model, the right
lever (2) controls the right chain. To drive forward, push both levers forward, to reverse, push back.
Pushing just one lever forward will turn the model into the opposite direction of the control command,
allowing you to make a turn. Pushing one lever forward and the other one back makes the model turn
on the spot.
Control the upper-carriage and boom: With buttons 3 and 4 on the remote control, the upper-carriage
(D) can be turned approx. 300 ° to the right and left. Buttons 7 and 8 can be used to move the main
arm (C) up or down. Button 6 can be used to move the front arm (B) up or down. Button 5 can be
used to move the bucket (A) up or down.
31
MODSTER Digger
www.modster.at
