Wiremap Test
EN

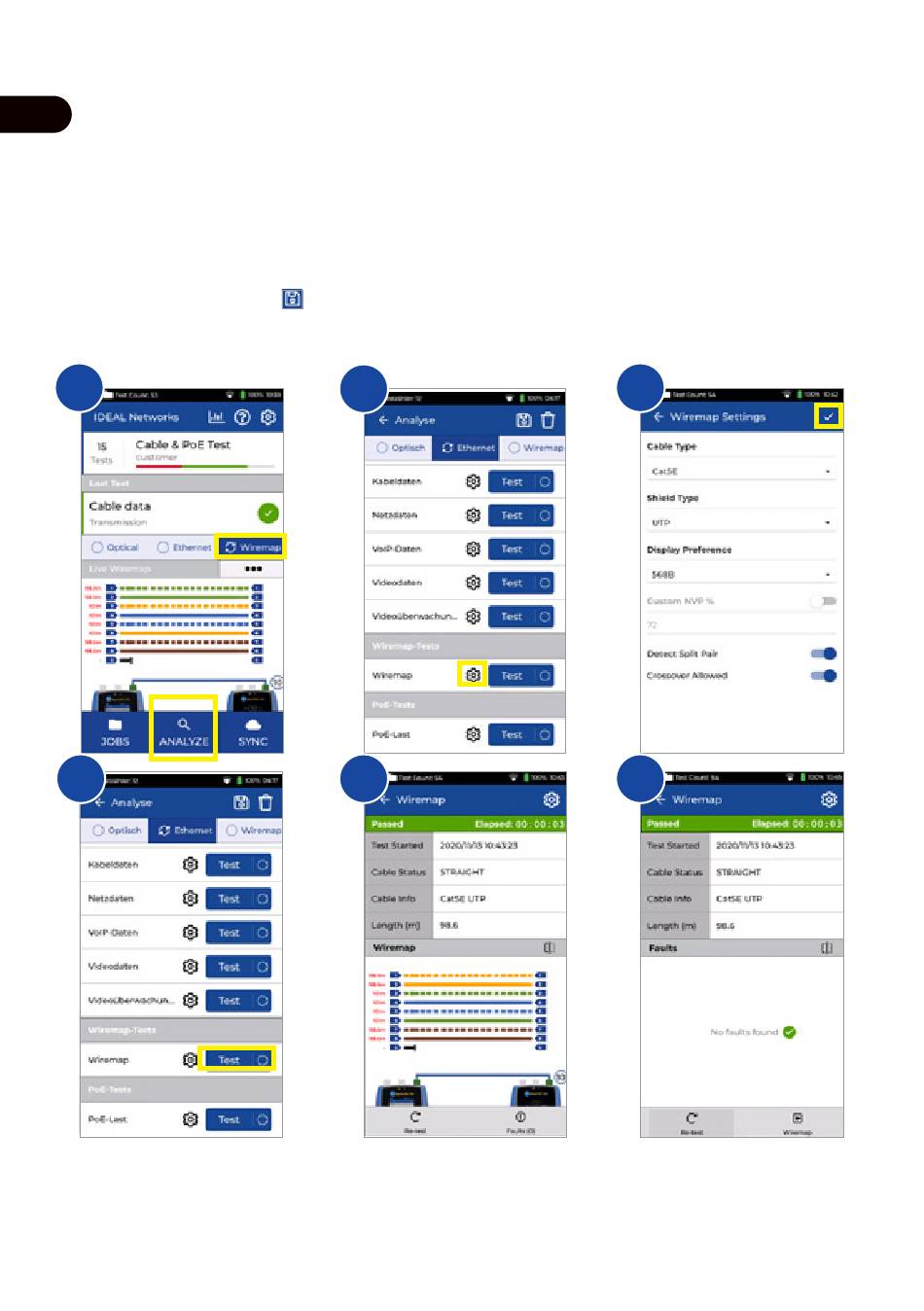

1. Connect both display and remote units to the cable under test
2. Select Wiremap interface
Set the Wiremap test via ANALYZE
3.
4. Set the cable type, Shield type, Display preference, Splitter and
crossover allowed then to save
5. Run Wiremap test and flip result page between graphics and tabular
6. Save the results
