Eltax evolution Power Tower 5.2 System Betriebsanleitung Seite 10

10

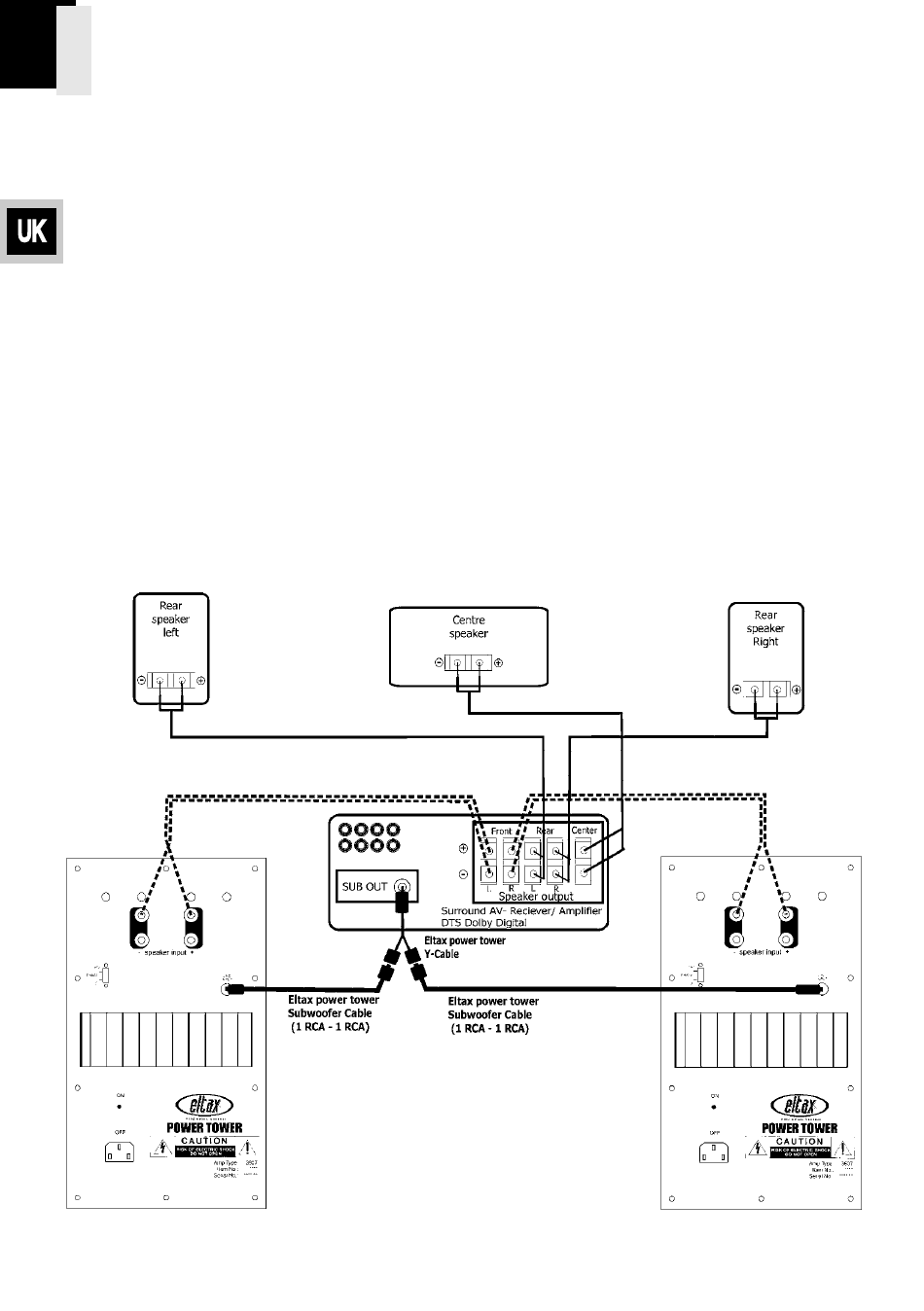

Option B
(see fig.2)
Option B is recommended for multi-channel amplifiers, receivers or processors
equipped with one low-level subwoofer (or LFE) output.
One pair of binding posts on each Power Tower is connected via high-level
(loudspeaker) cable to the amplifier or receiver, whilst the low-level subwoofer
UK
output is passed to each of the Power Tower's active low frequency element
via the supplied Y-splitter and low-level interconnect cable.
Connect the centre channel loudspeaker to the centre channel loudspeaker
output, and the surround loudspeakers to the surround loudspeaker outputs
of your amplifier or receiver.
Important Note: If your surround amplifier, receiver or processor has
integral bass management circuitry, ensure that your front left/right, centre
and surround channels are set to 'Small' and that the subwoofer output
is enabled for both two-channel and multi-channel listening. Suggested
crossover options are 80Hz and 100Hz. Please refer to the documentation
supplied with your amplifier, processor or receiver.
Fig.2
