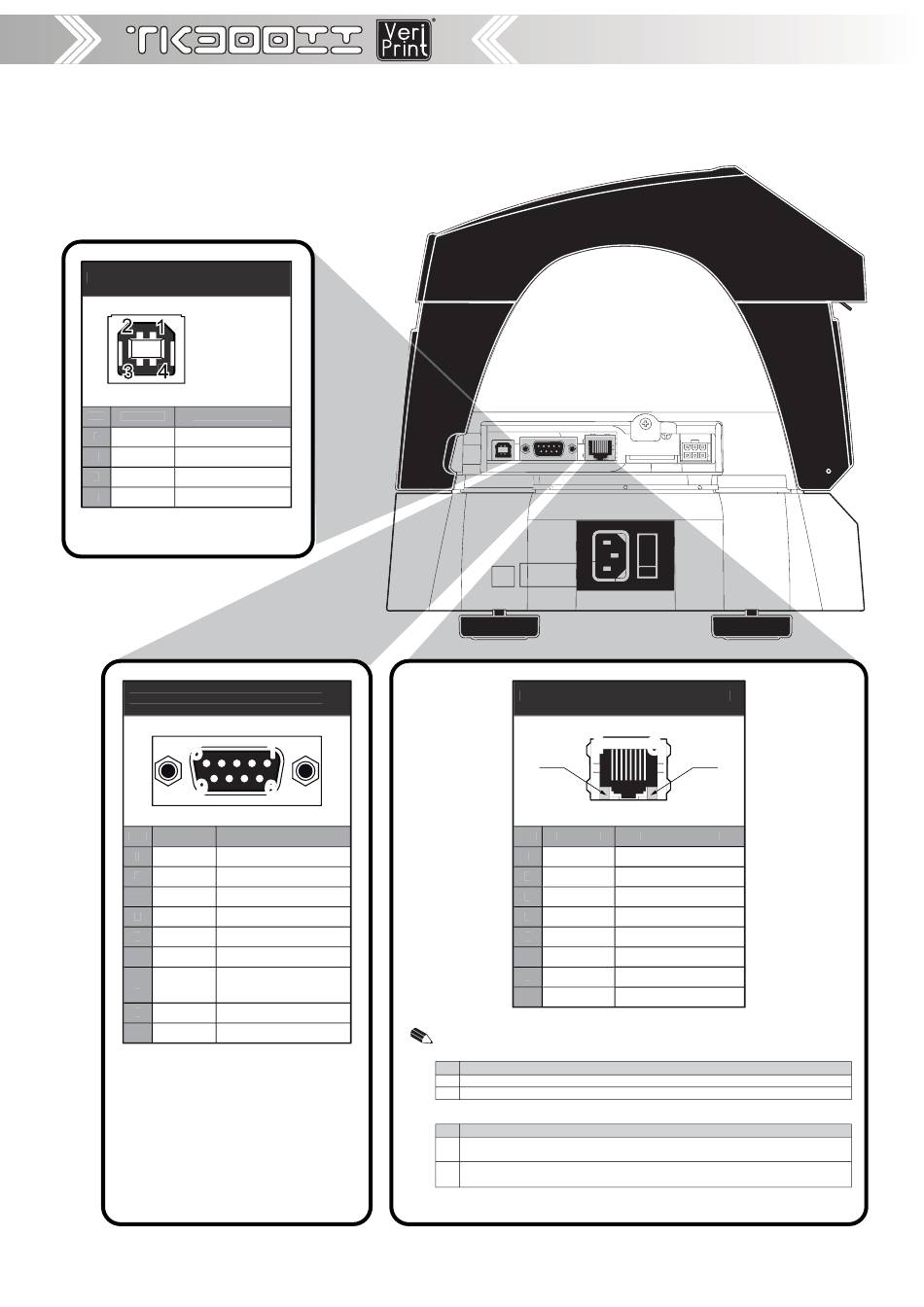

J5 - USB Connector
2 2 2 2 2 2
1 1 1 1
USB 1.1 PORT
USB 2.0 compatible
4 4 4 4
3 3 3 3 3 3 3 3
PIN
SIGNAL
DESCRIPTION
1
VBUS (in)
VBUS (in)
2
D -
Data -
3
D +
Data +
4
GND
Ground signal
J9 - RS232 Serial Connector
5
9
PIN
SIGNAL
DESCRIPTION
1
DTR
Data terminal ready
2
TX
Data transmission
3
RX
4
N.C.
5
GND
6
DTR
Data terminal ready
7
CTS
Ready to receive data
8
RTS
9
N.C.
1
6
Data reception
Not connected
Ground signal
Clear to send
Ready to send
Not connected
J16 - RJ45 Ethernet Connector
1 1
"Sx"
LED
PIN
SIGNAL
1
ETX+
2
ETX-
3
ERX+
4
+24 VT
5
+24 VT
6
ERX-
7
GND
8
GND
NOTE : The functionality of two leds, Sx and Dx, are specified in the following tables:
For 10Base-T connection :
LED HW version 2.00 or later
Sx
Link (yellow color): the led light on when a connection is active
Dx
Rx/Tx (green color): the led light on when occurs a data reception or transmission
For 10/100Base-Tx connection :
LED HW version 2.00 or later
Sx
The led light (yellow color) on when a connection is active and flashes wnen
occurs a data reception or transmission
Dx
The led light (green color) on when occurs a 100Mbit connection and off when
occurs a 10Mbit connection
NOTE : The printer automatically recognizes the type of connection (cross or pin-to-pin).
<10>
8 8
"Dx"
LED
DESCRIPTION
ETX+
ETX-
ERX+
Not connected
Not connected
ERX-
Not connected
Not connected
