written consent of the author. This also includes commercial use of the content and data. The text
and illustrations are based on the state of the art at the time of printing.

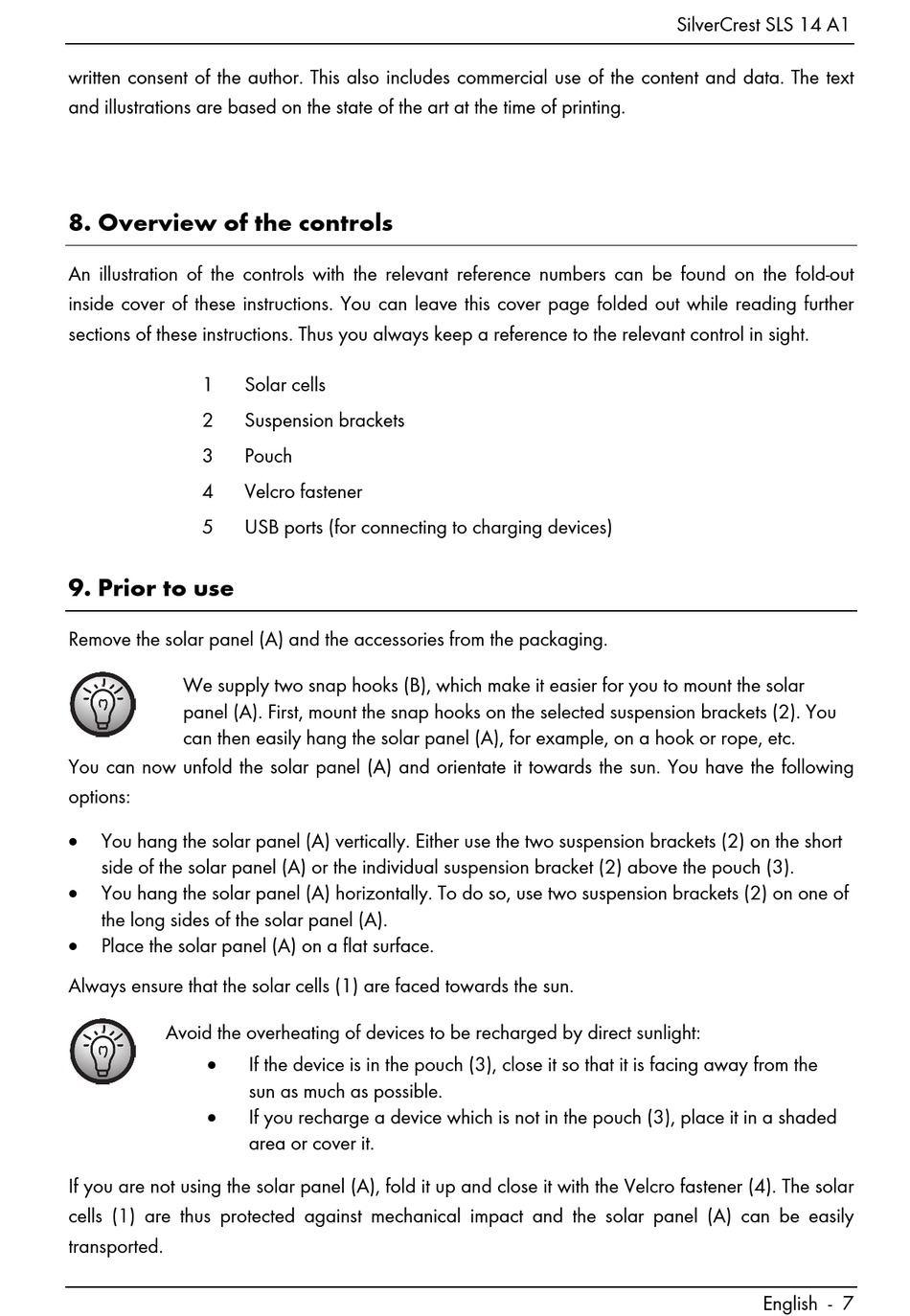

8. Overview of the controls

An illustration of the controls with the relevant reference numbers can be found on the fold-out
inside cover of these instructions. You can leave this cover page folded out while reading further
sections of these instructions. Thus you always keep a reference to the relevant control in sight.
1
2
3
4
5

9. Prior to use

Remove the solar panel (A) and the accessories from the packaging.
We supply two snap hooks (B), which make it easier for you to mount the solar
panel (A). First, mount the snap hooks on the selected suspension brackets (2). You
can then easily hang the solar panel (A), for example, on a hook or rope, etc.
You can now unfold the solar panel (A) and orientate it towards the sun. You have the following
options:

You hang the solar panel (A) vertically. Either use the two suspension brackets (2) on the short
side of the solar panel (A) or the individual suspension bracket (2) above the pouch (3).

You hang the solar panel (A) horizontally. To do so, use two suspension brackets (2) on one of
the long sides of the solar panel (A).

Place the solar panel (A) on a flat surface.
Always ensure that the solar cells (1) are faced towards the sun.
Avoid the overheating of devices to be recharged by direct sunlight:


If you are not using the solar panel (A), fold it up and close it with the Velcro fastener (4). The solar
cells (1) are thus protected against mechanical impact and the solar panel (A) can be easily
transported.
Solar cells
Suspension brackets
Pouch
Velcro fastener
USB ports (for connecting to charging devices)
If the device is in the pouch (3), close it so that it is facing away from the
sun as much as possible.
If you recharge a device which is not in the pouch (3), place it in a shaded
area or cover it.
SilverCrest SLS 14 A1
English - 7
