Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the owners' benefit, without intent to
infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or fitness for a particular
purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate"
ASRock Website: http://www.asrock.com

Werbung

Inhaltsverzeichnis
loading

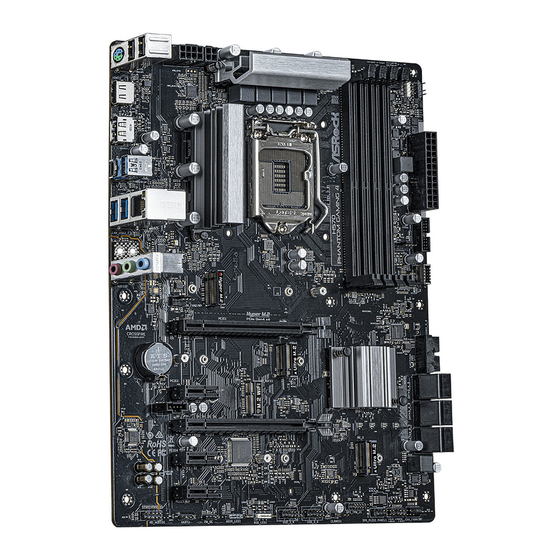

Inhaltszusammenfassung für ASROCK H570 Phantom Gaming 4

  • Seite 1 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Seite 2 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...
  • Seite 3 ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate Licensee to provide Intel with comments or suggestions regarding the Software. However, if Licensee provides Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, Licensee grants to Intel a non-exclusive, worldwide,...
  • Seite 5: Motherboard-Layout

    H570 Phantom Gaming 4 Motherboard Layout CPU_FAN2/WP CHA_FAN3/WP ATX12V1 ATX12V2 CPU_FAN1 USB 3.2 Gen2 T:USB31_TA_1 B: USB31_TC_1 USB 3.2 Gen1 Top: T: USB3_1 RJ-45 B: USB3_2 CHA_FAN1/WP CHA_FAN2/WP PCIE1 CMOS Battery Intel H570 PCIE2 M2_WIFI_CT1 T B1 PCIE3 AUDIO RoHS...
  • Seite 6 No. Description ATX 12V Power Connector (ATX12V1) ATX 12V Power Connector (ATX12V2) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) CPU/Water Pump Fan Connector (CPU_FAN2/WP) RGB LED Header (RGB_LED2) Addressable LED Header (ADDR_LED2) Chassis/Water Pump Fan Connector (CHA_FAN3/WP) ATX Power Connector (ATXPWR1)
  • Seite 7 H570 Phantom Gaming 4 I/O Panel No. Description No. Description USB 2.0 Ports (USB_1_2) USB 3.2 Gen1 Ports (USB3_1_2) USB 3.2 Gen2 Type-A Port USB 3.2 Gen2 Type-C Port (USB31_TA_1) (USB31_TC_1) LAN RJ-45 Port* DisplayPort 1.4 Line In (Light Blue)**...
  • Seite 8: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.
  • Seite 9: Specifications

    Gen Intel® Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium® and Celeron® support DDR4 up to 2666. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) • Supports ECC UDIMM memory modules (operate in non- ECC mode) • Max.
  • Seite 10 • 3 x PCI Express 3.0 x1 Slots • Supports AMD Quad CrossFireX and CrossFireX • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT) Graphics * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Seite 11 H570 Phantom Gaming 4 • Gigabit LAN 10/100/1000 Mb/s • Giga PHY Intel® I219V • Supports Wake-On-LAN • Supports Lightning/ESD Protection • Supports Energy Efficient Ethernet 802.3az • Supports PXE Rear Panel • 1 x PS/2 Mouse/Keyboard Port • 1 x HDMI Port • 1 x DisplayPort 1.4...
  • Seite 12 • 1 x 4 pin 12V Power Connector (Hi-Density Power Connec- tor) • 1 x Front Panel Audio Connector • 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • Seite 13: Hardware Monitor

    • ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.
  • Seite 14: Chapter 2 Installation

    Chapter 2 Installation This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.
  • Seite 15: Installing The Cpu

    H570 Phantom Gaming 4 2.1 Installing the CPU 1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Seite 17 H570 Phantom Gaming 4 Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.
  • Seite 18 2.2 Installing the CPU Fan and Heatsink...
  • Seite 19 H570 Phantom Gaming 4 2.3 Installing Memory Modules (DIMM) This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
  • Seite 21 H570 Phantom Gaming 4 2.4 Expansion Slots (PCI Express Slots) There are 5 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
  • Seite 22 PCIe Slot Configurations Gen Intel® Core Processors PCIE1 PCIE3 Single Graphics Card Gen4x16 Two Graphics Cards in Gen4x16 Gen3x4 CrossFireX Mode Gen Intel® Core Processors PCIE1 PCIE3 Single Graphics Card Gen3x16 Two Graphics Cards in Gen3x16 Gen3x4 CrossFireX Mode For a better thermal environment, please connect a chassis fan to the motherboard’s chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP or CHA_FAN4/WP) when using multiple graphics cards.
  • Seite 23 H570 Phantom Gaming 4 2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”.
  • Seite 24 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header Connect the power button, PLED+ PLED-...
  • Seite 25 H570 Phantom Gaming 4 Power LED and Speaker Please connect the SPEAKER DUMMY Header chassis power LED and DUMMY (7-pin SPK_PLED1) the chassis speaker to this (see p.1, No. 20) header. PLED+ PLED+ PLED- Serial ATA3 Connectors These six SATA3...
  • Seite 26 USB 3.2 Gen1 Headers There are two headers on Vbus Vbus Vbus IntA_PB_SSRX- Vertical: this motherboard. Each IntA_PB_SSRX+ IntA_PA_SSRX- (19-pin USB3_3_4) USB 3.2 Gen1 header can IntA_PA_SSRX+ IntA_PB_SSTX- (see p.1, No. 11) support two ports. IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ IntA_PB_D- IntA_PA_D- IntA_PB_D+ IntA_PA_D+ Dummy...
  • Seite 27 H570 Phantom Gaming 4 Chassis/Water Pump Fan This motherboard provides Connectors four 4-Pin water cooling (4-pin CHA_FAN1/WP) chassis fan connectors. If FAN_VOLTAGE (see p.1, No. 12) you plan to connect a 3-Pin FAN_SPEED FAN_SPEED_CONTROL (4-pin CHA_FAN2/WP) chassis water cooler fan, (see p.1, No.
  • Seite 28 ATX 12V Power This motherboard provides Connector an 8-pin ATX 12V power (8-pin ATX12V1) connector. To use a 4-pin (see p.1, No. 1) ATX power supply, please plug it along Pin 1 and Pin *Warning: Please make sure that the power cable connected is for the CPU and not the graphics card.
  • Seite 29 H570 Phantom Gaming 4 SPI TPM Header This connector supports SPI SPI_DQ3 +3.3V (13-pin SPI_TPM_J1) Trusted Platform Module (TPM) TPM_Present (see p.1, No. 21) SPI_MOSI system, which can securely RST# store keys, digital certificates, TPM_PIRQ passwords, and data. A TPM...
  • Seite 30 2.7 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT) Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT module and Intel®...
  • Seite 31 H570 Phantom Gaming 4 Step 3 Gently insert the WiFi/BT module or Intel® CNVi (Integrated WiFi/ BT) into the M.2 slot. Please be aware that the module only fits in one orientation. Step 4 Tighten the screw with a screwdriver to secure the module into place.
  • Seite 32 2.8 M.2_SSD (NGFF) Module Installation Guide (M2_1) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1) supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11 Gen Intel®...
  • Seite 33 H570 Phantom Gaming 4 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location A by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut.
  • Seite 34 XP941-512G (MZHPU512HCGL) SanDisk PCIe SD6PP4M-128G SanDisk PCIe SD6PP4M-256G TEAM PCIe3 x4 TM8FP2240G0C101 TEAM PCIe3 x4 TM8FP2480GC110 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...
  • Seite 35 H570 Phantom Gaming 4 2.9 M.2_SSD (NGFF) Module Installation Guide (M2_2) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_2) supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI...
  • Seite 36 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location A by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
  • Seite 37 H570 Phantom Gaming 4 M.2_SSD (NGFF) Module Support List (M2_2) Vendor Interface ADATA SATA3 AXNS330E-32GM-B ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AXNS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C ADATA PCIe3 x4 ASX7000NP-128GT-C ADATA PCIe3 x4 ASX8000NP-256GM-C ADATA PCIe3 x4 ASX7000NP-256GT-C ADATA...
  • Seite 38 SATA3 VLM100-120G-2280B-RD V-Color SATA3 VLM100-240G-2280RGB V-Color SATA3 VSM100-240G-2280 V-Color SATA3 VLM100-240G-2280B-RD SATA3 WDS100T1B0B-00AS40 SATA3 WDS240G1G0B-00RC30 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...
  • Seite 39 H570 Phantom Gaming 4 2.10 M.2_SSD (NGFF) Module Installation Guide (M2_3) The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_3) supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2...
  • Seite 40 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
  • Seite 41 H570 Phantom Gaming 4 M.2_SSD (NGFF) Module Support List (M2_3) Vendor Interface ADATA SATA3 AXNS330E-32GM-B ADATA SATA3 AXNS381E-128GM-B ADATA SATA3 AXNS381E-256GM-B ADATA SATA3 ASU800NS38-256GT-C ADATA SATA3 ASU800NS38-512GT-C ADATA PCIe3 x4 ASX7000NP-128GT-C ADATA PCIe3 x4 ASX8000NP-256GM-C ADATA PCIe3 x4 ASX7000NP-256GT-C ADATA...
  • Seite 42 SATA3 VLM100-120G-2280B-RD V-Color SATA3 VLM100-240G-2280RGB V-Color SATA3 VSM100-240G-2280 V-Color SATA3 VLM100-240G-2280B-RD SATA3 WDS100T1B0B-00AS40 SATA3 WDS240G1G0B-00RC30 PCIe3 x4 WDS256G1X0C-00ENX0 (NVME) PCIe3 x4 WDS512G1X0C-00ENX0 (NVME) For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...
  • Seite 43 H570 Phantom Gaming 4 2.11 ASRock Polychrome SYNC ASRock Polychrome SYNC is a lighting control utility specifically designed for unique indi- viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
  • Seite 44 Connecting the Addressable RGB LED Strip Connect your Addressable RGB LED strips to the Addressable LED Headers (ADDR_LED1 / ADDR_LED2) on the motherboard. ADDR_LED2 ADDR_LED1 DO_ADDR VOUT 1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
  • Seite 45 ASRock Polychrome SYNC Utility Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way! Drag the tab to customize your preference.
  • Seite 46 1 Einleitung Vielen Dank, dass Sie sich für das ASRock H570 Phantom Gaming 4 entschieden haben – ein zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualität und Beständigkeit erfüllt.
  • Seite 47: Technische Daten

    H570 Phantom Gaming 4 1.2 Technische Daten Plattform • ATX-Formfaktor • Feststoffkondensator-Design Prozessor • Unterstützt Intel® Core -Prozessoren der 10. Generation und Intel® Core -Prozessoren der 11. Generation (LGA1200) • Digi Power design • 8-Leistungsphasendesign • Unterstützt Intel® Turbo Boost Max Technology 3.0 Chipsatz • Intel®...
  • Seite 48 • 3 x PCI-Express-3.0-x1-Steckplatz • Unterstützt AMD Quad CrossFireX und CrossFireX • 1 x M.2-Sockel (Key E), unterstützt Typ-2230-Wi-Fi-/-BT-Modul und Intel® CNVi (WLAN/BT integriert) Grafikkarte * Integrierte Intel® UHD Graphics-Visualisierung und VGA- Ausgänge können nur mit Prozessoren unterstützt werden, die GPU- integriert sind.
  • Seite 49 H570 Phantom Gaming 4 Rückblende, • 1 x PS/2-Maus-/Tastaturanschluss • 1 x HDMI-Port • 1 x DisplayPort 1.4 • 1 x USB-3.2-Gen2-Type-A-Port (10 Gb/s) (ReDriver) (unterstützt Schutz gegen elektrostatische Entladung) • 1 x USB-3.2-Gen2-Type-C-Port (10 Gb/s) (ReDriver) (unterstützt Schutz gegen elektrostatische Entladung) • 2 x USB-3.2-Gen1-Ports (unterstützt Schutz gegen elektrostatische...
  • Seite 50 • 1 x 4-poliger 12-V-Netzanschluss (hochdichter Netzanschluss) • 1 x Audioanschluss an Frontblende • 1 x Thunderbolt Erweiterungskartenanschluss (5-polig) (unterstützt ASRock Thunderbolt 4 AIC-Karten) • 2 x USB 2.0-Stiftleisten (unterstützt 4 USB 2.0-Ports) (unterstützt Schutz gegen elektrostatische Entladung) • 2 x USB 3.2 Gen1-Stiftleiste (unterstützt vier USB 3.2 Gen1- Ports) (ASMedia ASM1074-Hub) (unterstützt Schutz gegen...
  • Seite 51 Zertifizie- rungen • ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich) * Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com Bitte beachten Sie, dass mit einer Übertaktung, zu der die Anpassung von BIOS- Einstellungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von Übertaktungswerkzeugen von Drittanbietern zählen, bestimmte Risiken verbunden...
  • Seite 52: Jumpereinstellung

    1.3 Jumpereinstellung Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper „kurzgeschlossen“. Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper „offen“. CMOS-löschen-Jumper (CLRMOS1) 2-pin Jumper (siehe S. 1, Nr. 22) CLRMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS.
  • Seite 53: Integrierte Stiftleisten Und Anschlüsse

    H570 Phantom Gaming 4 1.4 Integrierte Stiftleisten und Anschlüsse Integrierte Stiftleisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE Jumper- Kappen an diesen Stiftleisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen an diesen Stiftleisten und Anschlüssen können Sie das Motherboard dauerhaft beschädi- gen.
  • Seite 54 Betrieb-LED- und Bitte verbinden Sie die Betrieb- SPEAKER Lautsprecher-Stiftleiste LED des Gehäuses und den DUMMY DUMMY (7-polig, SPK_PLED1) Gehäuselautsprecher mit dieser (siehe S. 1, Nr. 20) Stiftleiste. PLED+ PLED+ PLED- Serial-ATA-III-Anschlüsse Diese sechs SATA-III-Anschlüsse Winkel rechts: unterstützen SATA-Datenkabel für (SATA3_0: interne Speichergeräte mit einer siehe S.
  • Seite 55 H570 Phantom Gaming 4 USB 3.2 Gen1-Stiftleisten Es gibt zwei Stiftleisten an Vbus Vbus Vbus IntA_PB_SSRX- Vertikal: diesem Motherboard. Jede USB IntA_PB_SSRX+ IntA_PA_SSRX- (19-polig, USB3_3_4) 3.2 Gen1-Stiftleiste kann zwei IntA_PA_SSRX+ IntA_PB_SSTX- (siehe S. 1, Nr. 11) Ports unterstützen. IntA_PA_SSTX- IntA_PB_SSTX+...
  • Seite 56 Gehäuse-/ Dieses Motherboard bietet Wasserpumpen- vier 4-polige Wasserkühlung- Lüfteranschlusse Gehäuselüfteranschlüsse Falls FAN_VOLTAGE (4-polig, CHA_FAN1/ Sie einen 3-poligen Gehäuse- FAN_SPEED FAN_SPEED_CONTROL Wasserkühlerlüfter anschließen (siehe S. 1, Nr. 12) möchten, verbinden Sie ihn bitte (4-polig, CHA_FAN2/ mit Kontakt 1 bis 3. (siehe S. 1, Nr. 29) (4-polig, CHA_FAN3/ (siehe S.
  • Seite 57 H570 Phantom Gaming 4 ATX-12-V- Dieses Motherboard bietet Netzanschluss einen 8-poligen ATX-12-V- (8-polig, ATX12V1) Netzanschluss. Bitte schließen (siehe S. 1, Nr. 1) Sie es zur Nutzung eines 4-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 5 an. *Warnung: Bitte stellen Sie...
  • Seite 58 SPI-TPM-Stiftleiste Dieser Anschluss unterstützt das SPI_DQ3 +3.3V SPI Trusted Platform Module- (13-polig, SPI_TPM_J1) TPM_Present (TPM) System, das Schlüssel, (siehe S. 1, Nr. 21) SPI_MOSI RST# digitale Zertifikate, Kennwörter TPM_PIRQ und Daten sicher aufbewahren kann. Ein TPM-System hilft zu- dem bei der Stärkung der Netz- SPI_TPM_CS# werksicherheit, schützt digitale RSMRST#...
  • Seite 59: Contenu De L'emballage

    à modification sans préavis. En cas de modifications du présent document, la version mise à jour sera disponible sur le site Internet ASRock sans notification préalable. Si vous avez besoin d’une assistance technique pour votre carte mère, veuillez visiter notre site Internet pour plus de détails sur le modèle que...
  • Seite 60: Spécifications

    (i5/i3), Pentium® et Celeron® prennent en charge DDR4 jusqu’à 2666. * Veuillez consulter la liste de prise en charge des mémoires sur le site Web d'ASRock pour de plus amples informations. (http://www. asrock.com/) • Prend en charge les modules mémoire UDIMM ECC (fonctionne en mode non-ECC) • Capacité...
  • Seite 61 H570 Phantom Gaming 4 • 3 x fentes PCI Express 3.0 x1 • Prend en charge AMD Quad CrossFireX et CrossFireX • 1 x socket M.2 (Touche E), prend en charge les modules WiFi/BT type 2230 et Intel® CNVi (WiFi/BT intégré) Graphiques * La technologie Intel®...
  • Seite 62 SATA3 6,0 Gb/s type 2260/2280/22110 touche M et M.2 PCI Express jusqu'à Gen3 x4 (32 Go/s)** ** Prend en charge Intel® Optane Technology ** Prend en charge les SSD NVMe comme disques de démarrage ** Prend en charge le kit ASRock U.2...
  • Seite 63 • 1 x connecteur audio panneau frontal • 1 x connecteur Thunderbolt AIC (5 broches) (Prise en charge de la carte ASRock Thunderbolt 4 AIC) • 2 x embases USB 2.0 (4 ports USB 2.0 pris en charge) (Protection contre les décharges électrostatiques) • 2 x embase USB 3.2 Gen1 (4 ports USB 3.2 Gen1 pris en charge)
  • Seite 64 • ErP/EuP Ready (alimentation ErP/EuP ready requise) tions * pour des informations détaillées de nos produits, veuillez visiter notre site : http://www.asrock.com Il est important de signaler que l’ o verclocking présente certains risques, incluant des modifications du BIOS, l’ a pplication d’une technologie d’ o verclocking déliée et l’utilisation d’...
  • Seite 65 H570 Phantom Gaming 4 1.3 Configuration des cavaliers (jumpers) L’illustration ci-dessous vous renseigne sur la configuration des cavaliers (jumpers). Lorsque le capuchon du cavalier est installé sur les broches, le cavalier est « court-circuité ». Si le capuchon du cavalier n’ e st pas installé sur les broches, le cavalier est « ouvert ».
  • Seite 66 1.4 Embases et connecteurs de la carte mère Les embases et connecteurs situés sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur ces embases ou connecteurs endommagera irrémédiablement votre carte mère.
  • Seite 67 H570 Phantom Gaming 4 Prise DEL d’alimentation et Veuillez brancher la DEL SPEAKER haut-parleur d'alimentation du châssis et le DUMMY DUMMY (SPK_PLED1 à 7 broches) haut-parleur du châssis sur ce (voir p.1, No. 20) connecteur. PLED+ PLED+ PLED- Connecteurs Serial ATA3 Ces six connecteurs SATA3 sont Angle droit :...
  • Seite 68 Embases USB 3.2 Gen1 Cette carte mère comprend deux Vbus Vbus Vbus IntA_PB_SSRX- Vertical: connecteurs. Chaque embase IntA_PB_SSRX+ IntA_PA_SSRX- (USB3_3_4 à 19 broches) USB 3.2 Gen1 peut prendre en IntA_PA_SSRX+ IntA_PB_SSTX- (voir p.1, No. 11) charge deux ports. IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ IntA_PB_D- IntA_PA_D- IntA_PB_D+...
  • Seite 69 H570 Phantom Gaming 4 Connecteurs du Cette carte mère est dotée ventilateur de châssis/ de quatre connecteurs pour pompe à eau ventilateur de châssis à FAN_VOLTAGE (CHA_FAN1/WP à refroidissement par eau à FAN_SPEED FAN_SPEED_CONTROL 4 broches) 4 broches. Si vous envisagez (voir p.1, No. 12) de connecter un ventilateur de (CHA_FAN2/WP à...
  • Seite 70 Connecteur Cette carte mère est dotée d’un d’alimentation ATX 12 V connecteur d’alimentation (ATX12V1 à 8 broches) ATX 12V à 8 broches. Pour (voir p.1, No. 1) utiliser une alimentation ATX à 4 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 5.
  • Seite 71 H570 Phantom Gaming 4 Embase SPI TPM Ce connecteur prend en charge SPI_DQ3 +3.3V (SPI_TPM_J1 à un module SPI TPM (Trusted TPM_Present 13 broches) Platform Module – Module de SPI_MOSI RST# (voir p.1, No. 21) plateforme sécurisée), qui per- TPM_PIRQ met de sauvegarder clés, certifi- cats numériques, mots de passe...
  • Seite 72: Contenuto Della Confezione

    Web per informazioni specifiche relative al modello attualmente in uso. È possibile trovare l'elenco di schede VGA più recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock http://www.asrock.com.
  • Seite 73 (i9/i7) supportano DDR4 fino a 2933; Core (i5/i3), Pentium® e Celeron® supportano DDR4 fino a 2666. * Per maggiori informazioni fare riferimento all'elenco dei supporti di memoria sul sito di ASRock. (http://www.asrock.com/) • Supporta moduli di memoria ECC UDIMM (funziona in modalità non ECC) • Capacità...
  • Seite 74 • 3 x alloggi PCI Express 3.0 x1 • Supporta AMD Quad CrossFireX e CrossFireX • 1 x Socket M.2 (Key E), supporta moduli di tipo 2230 WiFi/BT e Intel® CNVi (Integrated WiFi/BT) Grafica * La videografica integrata della scheda video UHD Intel® e le uscite VGA possono essere supportate soltanto con processori con GPU integrata.
  • Seite 75 H570 Phantom Gaming 4 • LAN Gigabit 10/100/1000 Mb/s • Giga PHY Intel® I219V • Supporto WOL (Wake-On-LAN) • Supporta protezione da fulmini/scariche elettrostatiche • Supporto Energy Efficient Ethernet 802.3az • Supporto PXE I/O pannello • 1 x porta mouse/tastiera PS/2 posteriore • 1 x porta HDMI...
  • Seite 76 • 1 x connettore alimentazione 12 V 4-pin (connettore alimentazione ad alta densità) • 1 x connettore audio pannello frontale • 1 connettore Thunderbolt AIC (5-pin) (supporta carta ASRock Thunderbolt 4 AIC) • 2 x connettori USB 2.0 (supporto di 4 porte USB 2.0) (Supporto protezione ESD) • 2 x connettore USB 3.2 Gen1 (supporto di 4 porte USB 3.2 Gen1)
  • Seite 77 • FCC, CE • ErP/EuP Ready (è necessaria alimentazione ErP/EuP ready) * Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclocking o l'utilizzo di strumenti di overclocking di terze parti.
  • Seite 78 1.3 Impostazione jumper L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper è posizionato sui pin, il jumper è "cortocircuitato". Se sui pin non è posizionato alcun cappuccio del jumper, il jumper è "aperto". Jumper per azzerare la CMOS (CLRMOS1) 2-pin Jumper...
  • Seite 79 H570 Phantom Gaming 4 1.4 Header e connettori su scheda Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocherà danni permanenti alla scheda madre.
  • Seite 80 Connettore LED Collegare i LED alimentazione e SPEAKER alimentazione e l’altoparlante a questo connettore. DUMMY DUMMY altoparlante (SPK_PLED1 a 7 pin) (vedere pag. 1, n. 20) PLED+ PLED+ PLED- Connettori Serial ATA3 Questi sei connettori SATA3 Angolo destro: supportano cavi dati SATA (SATA3_0: per dispositivi di archiviazione vedere pag.
  • Seite 81 H570 Phantom Gaming 4 Header USB 3.2 Gen1 Ci sono due connettori su questa Vbus Vbus Vbus IntA_PB_SSRX- Verticale: scheda madre. Ciascun header IntA_PB_SSRX+ IntA_PA_SSRX- (USB3_3_4 a 19 pin) USB 3.2 Gen1 può supportare IntA_PA_SSRX+ IntA_PB_SSTX- (vedere pag. 1, n. 11) due porte.
  • Seite 82 Connettori ventola Questa scheda madre è dotata chassis / pompa di quattro connettori ventola a dell'acqua 4 pin per il raffreddamento ad FAN_VOLTAGE (CHA_FAN1/WP a acqua del telaio. Se si decide di FAN_SPEED FAN_SPEED_CONTROL 4 pin) collegare una ventola telaio con (vedere pag. 1, n. 12) raffreddamento ad acqua a 3 pin, (CHA_FAN2/WP a collegarla al pin 1-3.
  • Seite 83 H570 Phantom Gaming 4 Connettore di Questa scheda madre è dotata di alimentazione ATX da 12 V un connettore di alimentazione (ATX12V1 a 8 pin) ATX da 12 V a 8 pin. Per (vedere pag. 1, n. 1) utilizzare un'alimentazione ATX a 4 pin, collegarla lungo il pin 1 e il pin 5.
  • Seite 84 Connettore SPI TPM Questo connettore supporta il SPI_DQ3 +3.3V (SPI_TPM_J1 a 13 pin) sistema SPI Trusted Platform TPM_Present (vedere pag. 1, n. 21) Module (TPM), che può SPI_MOSI RST# archiviare in modo sicuro chiavi, TPM_PIRQ certificati digitali, password e dati. Un sistema TPM permette anche di potenziare la sicurezza SPI_TPM_CS# della rete, di proteggere identità...
  • Seite 85: Contenido Del Paquete

    Podrá encontrar las últimas tarjetas VGA, así como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.
  • Seite 86: Especificaciones

    (i5/i3), Pentium® y Celeron® compatible con DDR4 de hasta 2666. * Para obtener más información, consulte la lista de memorias compatibles en el sitio web de ASRock. (http://www.asrock.com/) • Admite módulos de memoria UDIMM ECC (funcionamiento en modo no ECC) • Capacidad máxima de memoria del sistema: 128GB...
  • Seite 87 H570 Phantom Gaming 4 • Compatible con AMD Quad CrossFireX y CrossFireX • 1 x M.2 Socket (Tecla E), es compatible con los módulos WiFi/BT tipo 2230 e Intel® CNVi (WiFi/BT integrado) Gráficos * Intel® UHD Graphics Built-in Visuals y las salidas de VGA son compatibles únicamente con procesadores con GPU integrado.
  • Seite 88 6,0 Gb/s M.2 de tipo 2260/2280/22110 con clave M y el módulo PCI Express M.2 hasta Gen3 x4 (32 Gb/s)** ** Compatible con la tecnología Optane de Intel® ** Admite unidad de estado sólido de NVMe como disco de arranque ** Admite el kit U.2 de ASRock...
  • Seite 89 H570 Phantom Gaming 4 Conector • 1 x Conector SPI TPM • 1 x LED de alimentación y base de conexiones para el altavoz • 2 x Cabezales de indicador LED RGB * Admite una tira de LED de hasta 12 V/3 A (36 W) en total • 2 x Cabezales de LED direccionables...
  • Seite 90 • Preparado para ErP/EuP (se necesita una fuente de alimentación preparada para ErP/EuP) * Para obtener información detallada del producto, visite nuestro sitio Web: http://www.asrock.com Tenga en cuenta que hay un cierto riesgo implícito en las operaciones de overclocking, incluido el ajuste de la BIOS, aplicando la tecnología de overclocking liberada o utilizando las herramientas de overclocking de otros fabricantes.
  • Seite 91 H570 Phantom Gaming 4 1.3 Instalación de los puentes La instalación muestra cómo deben instalarse los puentes. Cuando la tapa de puente se coloca en los contactos, el puente queda “Corto”. Si no coloca la tapa de puente en los contactos, el puente queda “Abierto”.
  • Seite 92 1.4 Conectores y cabezales incorporados Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores dañará de forma permanente la placa base. Cabezal del panel del Conecte el botón de alimentación, PLED+...
  • Seite 93 H570 Phantom Gaming 4 LED de alimentación y Conecte el LED de alimentación SPEAKER base de conexiones para la del chasis y el altavoz del chasis a DUMMY DUMMY altavoz esta base de conexiones. (SPK_PLED1 de 7 contactos) (consulte la pág. 1, nº 20)
  • Seite 94 Cabezales USB 3.2 Gen1 Hay dos bases de conexiones en Vbus Vbus Vbus IntA_PB_SSRX- Vertical: esta placa base. Cada cabezal IntA_PB_SSRX+ IntA_PA_SSRX- (USB3_3_4 de USB 3.2 Gen1 admite dos IntA_PA_SSRX+ IntA_PB_SSTX- 19 contactos) puertos. IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ (consulte la pág. 1, nº 11) IntA_PB_D- IntA_PA_D- IntA_PB_D+...
  • Seite 95 H570 Phantom Gaming 4 Conectores del ventilador Esta placa base proporciona de la bomba de agua/ cuatro conectores para el chasis ventilador del chasis para FAN_VOLTAGE (CHA_FAN1/WP de refrigeración por agua de FAN_SPEED FAN_SPEED_CONTROL 4 contactos) 4 contactos. Si tiene pensando (consulte la pág. 1, nº 12)
  • Seite 96 Conector de alimentación Esta placa base contiene un ATX de 12 V conector de alimentación (ATX12V1 de ATX de 12V y 8 contactos. 8 contactos) Para utilizar una toma (consulte la pág. 1, nº 1) de alimentación ATX de 4 contactos, conéctela en los contactos del 1 al 5.
  • Seite 97 H570 Phantom Gaming 4 Conector SPI TPM Este conector es compatible SPI_DQ3 +3.3V (SPI_TPM_J1 de con el sistema SPI Módulo de TPM_Present 13 contactos) Plataforma Segura (TPM, en SPI_MOSI RST# (consulte la pág. 1, N.º 21) inglés), que puede almacenar de...
  • Seite 98: Комплект Поставки

    ASRock также можно найти самый последний перечень поддерживаемых VGA- карт и ЦП. Веб-сайт ASRock http://www.asrock.com. 1.1 Комплект поставки • Материнская плата ASRock H570 Phantom Gaming 4 (форм-фактор ATX) • Краткое руководство по установке ASRock H570 Phantom Gaming 4 • Диск с ПО ASRock H570 Phantom Gaming 4 • 2 кабеля...
  • Seite 99: Технические Характеристики

    H570 Phantom Gaming 4 1.2 Технические характеристики Платформа • Форм-фактор ATX • Схема на основе твердотельных конденсаторов ЦП • Поддерживаются процессоры Gen Intel® Core 10 поколения и процессоры Gen Intel® Core 11 поколения (LGA1200) • Digi Power design • Система питания 8 • Поддерживается...
  • Seite 100 • 3 слота PCI Express 3.0 x1 • Поддержка AMD Quad CrossFireX и CrossFireX • 1 слот M.2 (ключ E) для модуля WiFi/BT типа 2230 и Intel® CNVi (встроенные WiFi/BT) Графиче- * Встроенный видеоадаптер Intel® UHD Graphics и выходы VGA поддерживаются только при использовании ЦП со ская...
  • Seite 101 H570 Phantom Gaming 4 • Gigabit Ethernet 10/100/1000 Мбит/с • Giga PHY Intel® I219V • Поддерживается пробуждение по ЛВС • Молниезащита и защита от электростатических разрядов • Поддерживается Energy Efficient Ethernet 802.3az • Поддерживается PXE Тыловые • 1 x порт PS/2 для мыши/клавиатуры...
  • Seite 102 высокой плотности) • 1 аудиоразъем для передней панели • 1 AIC-разъем Thunderbolt (5-контактный) (Поддерживает карту ASRock Thunderbolt 4 AIC) • 2 x колодки USB 2.0 (4 порта USB 2.0) (с защитой от электростатических разрядов) • 2 колодка USB 3.2 Gen1 (4 порта USB 3.2 Gen1) (концентратор...
  • Seite 103 H570 Phantom Gaming 4 Контроль • Тахометр: Вентилятор ЦП; Вентилятор или помпа водяного охлаждения ЦП; Вентилятор или помпа водяного оборудова- охлаждения корпуса ния • Бесшумная работа (с автоматической регулировкой скорости вращения в зависимости от температуры ЦП): Вентилятор ЦП; Вентилятор или помпа водяного охлаждения ЦП;...
  • Seite 104 1.3 Установка перемычек Установка перемычек показана на рисунке. При установке перемычки-колпачка на контакты перемычка «замкнута». Если перемычка-колпачок на контакты не установлена, перемычка «разомкнута». Перемычка сброса настроек CMOS 2-pin Jumper (CLRMOS1) (см. стр. 1, № 22) CLRMOS1 используется для удаления данных CMOS. Чтобы сбросить и обнулить параметры...
  • Seite 105 H570 Phantom Gaming 4 1.4 Колодки и разъемы, расположенные на системной плате Расположенные на системной плате колодки и разъемы НЕ являются перемычками. НЕ устанавливайте на эти колодки и разъемы перемычки- колпачки. Установка перемычек-колпачков на эти колодки и разъемы может вызвать неустранимое повреждение системной платы.
  • Seite 106 Колодка светодиодного Предназначена для SPEAKER индикатора питания и подключения светодиодного DUMMY DUMMY динамика корпуса индикатора питания и (7-контактная, SPK_ динамика корпуса. PLED1) (см. стр. 1, № 20) PLED+ PLED+ PLED- Разъемы Serial ATA3 Эти шесть разъемов Правый угол: SATA3 предназначены для (SATA3_0: подключения...
  • Seite 107 H570 Phantom Gaming 4 Колодки USB 3.2 Gen1 На материнской плате имеется Vbus Vbus Vbus IntA_PB_SSRX- Вертикальный: две колодки. Каждая колодка IntA_PB_SSRX+ IntA_PA_SSRX- (19-контактная, USB 3.2 Gen1 поддерживает IntA_PA_SSRX+ IntA_PB_SSTX- USB3_3_4) два порта. IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ (см. стр. 1, № 11)
  • Seite 108 Разъемы для Данная системная вентилятора или плата оснащена четыре помпы водяного 4-контактными разъемами для охлаждения корпуса системы водяного охлаждения FAN_VOLTAGE FAN_SPEED (4-контактный CHA_ корпуса. 3-контактную FAN_SPEED_CONTROL FAN1/WP) систему водяного охлаждения (см. стр. 1, № 12) корпуса следует подключать к (4-контактный CHA_ контактам...
  • Seite 109 H570 Phantom Gaming 4 Разъем питания АТХ 12 Эта материнская плата В оснащена 8-контактным (8-контактов, разъемом питания АТХ ATX12V1) 12 В. Чтобы использовать (см. стр. 1, № 1) 4-контактный разъем питания ATX, подключите его вдоль контакта 1 и контакта 5. *Внимание! Убедитесь, что...
  • Seite 110 колодка SPI ТРМ Этот разъем обеспечивает SPI_DQ3 (13-контактная, SPI_ поддержку системы SPI +3.3V TPM_Present TPM_J1) Trusted Platform Module SPI_MOSI (См. стр. 1, № 21) (TPM), которая способна RST# обеспечить надежное TPM_PIRQ хранение ключей, цифровых сертификатов, паролей и данных. Система ТРМ также SPI_TPM_CS# повышает...
  • Seite 111: Conteúdo Da Embalagem

    H570 Phantom Gaming 4 1 Introdução Obrigado por adquirir a placa mãe ASRock H570 Phantom Gaming 4, uma confiável placa mãe ASRock produzida sob rigoroso controle de qualidade consistente. Esta placa principal oferece um excelente desempenho com um design robusto em conformidade com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.
  • Seite 112 (i5/ i3), Pentium® e Celeron® suportam DDR4 até 2666. * Por favor, consulte a Lista de Suporte de Memória no site da ASRock para obter mais informação. (http://www.asrock.com/) • Suporta módulos de memória ECC UDIMM (opera em modo não-ECC) • Capacidade máxima da memória do sistema: 128GB • Suporta Extreme Memory Profile (XMP) 2.0 da Intel®...
  • Seite 113 H570 Phantom Gaming 4 • 3 x Slots PCI Express 3.0 x1 • Suporta AMD Quad CrossFireX e CrossFireX • 1 x soquete M.2 (Chave E), suporta Módulo tipo 2230 WiFi/BT e Intel® CNVi (WiFi/BT Integrado) Gráficos * Os gráficos incorporados Intel® UHD e as saídas VGA só podem ser suportados com processadores com GPU integrada.
  • Seite 114 • 1x soquete M.2 Ultra (M2_3), suporta chave M tipo 2260/2280/22110 módulo M. 2 SATA3 6,0 Gb/s e módulo M.2 PCI Express até Gen3 x4 (32 Gb/s) ** ** Suporta a tecnologia Intel® Optane ** Suporta NVMe SSD como discos de inicialização ** Suporta Kit ASRock U.2...
  • Seite 115 • 1 x Conector de energia 4-pinos 12V (Conector de energia de alta densidade) • 1 x Conector de áudio do painel frontal • 1 Conector Thunderbolt AIC (5-pinos) (Suporta Placa ASRock Thunderbolt 4 AIC) • 2 x Plataformas USB 2.0 (Suporta 4 portas USB 2.0) (Suporta Proteção ESD)
  • Seite 116 • Preparada para ErP/EuP (é necessária uma fonte de alimentação preparada para ErP/EuP) * Para obter informações detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das definições na BIOS, a aplicação de tecnologia Untied Overclocking ou a utilização...
  • Seite 117 H570 Phantom Gaming 4 1.3 Configuração dos jumpers A imagem abaixo mostra como os jumpers são configurados. Quando a tampa do jumper é colocada nos pinos, o jumper é "Curto". Se não for colocada uma tampa de jumper nos pinos, o jumper é "Aberto".
  • Seite 118 1.4 Suportes e conectores onboard Os conectores e suportes onboard NÃO são jumpers. NÃO coloque tampas de jumpers sobre estes terminais e conectores. Colocar tampas de jumpers sobre os terminais e conec- tores irá causar danos permanentes à placa-mãe. Suporte do painel de Ligue o botão de alimentação, PLED+ PLED-...
  • Seite 119 H570 Phantom Gaming 4 LED de alimentação e Conecte o LED de alimentação SPEAKER Cabeçote de Autofalante do chassi e o autofalante do chassi DUMMY DUMMY (SPK_PLED1 de 7 pinos) a este cabeçote. (ver p.1, N.º 20) PLED+ PLED+ PLED- Conectores série ATA3 Estes seis conectores SATA3 Ângulo Reto:...
  • Seite 120 Plataformas USB 3.2 Há dois cabeçotes nesta placa- Vbus Vbus Vbus IntA_PB_SSRX- Gen1 mãe. Cada suporte USB 3.2 IntA_PB_SSRX+ IntA_PA_SSRX- Vertical: Gen1 pode suportar duas portas. IntA_PA_SSRX+ IntA_PB_SSTX- (USB3_3_4 de 19 pinos) IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ (ver p.1, N.º 11) IntA_PB_D- IntA_PA_D- IntA_PB_D+ IntA_PA_D+ Dummy...
  • Seite 121 H570 Phantom Gaming 4 Chassis / Conectores da Esta placa mãe fornece três ventoinha de bomba de conectores do chassi de água refrigeração a água de 4 pinos. FAN_VOLTAGE (CHA_FAN1/WP de Se você pretende conectar um FAN_SPEED FAN_SPEED_CONTROL 4 pinos) ventilador de refrigeração a água (ver p.1, N.º...
  • Seite 122 Conector de alimentação Esta placa-mãe inclui um de 12V ATX conector de alimentação de 12V (ATX12V1 de 8 pinos) ATX de 8 pinos. Para utilizar (ver p.1, N.º 1) uma fonte de alimentação ATX de 4 pinos, introduza-a no Pino 1 e Pino 5. *Aviso: Certifique-se que o cabo de força conectado é...
  • Seite 123 H570 Phantom Gaming 4 Plataforma SPI TPM Este conector suporta um SPI_DQ3 +3.3V (SPI_TPM_J1 de sistema com SPI Módulo de TPM_Present 13 pinos) Plataforma Confiável (TPM), SPI_MOSI RST# (ver p.1, No. 21) que pode armazenar com TPM_PIRQ segurança chaves, certificados digitais, senhas e dados. Um sistema TPM também ajuda a...
  • Seite 124: Zawartość Opakowania

    1 Wprowadzenie Dziękujemy za zakupienie płyty głównej ASRock H570 Phantom Gaming 4, niezawodnej płyty głównej produkowanej z konsekwentnie wykonywaną przez firmę ASRock, rygorystyczną kontrolą jakości. Płyta ta zapewnia doskonałą jakość działania i solidną konstrukcję, spełniającą zobowiązanie firmy ASRock do dostarczania produktów o wysokiej jakości i wytrzymałości.
  • Seite 125 (i9/i7) obsługują DDR4 do 2933; Core (i5/i3), Pentium® i Celeron® obsługują DDR4 do 2666. * Sprawdź listę obsługiwanej pamięci na stronie internetowej ASRock w celu uzyskania dalszych informacji. (http://www.asrock.com/) • Obsługa modułów pamięci ECC UDIMM (działanie w trybie non-ECC) • Maks. wielkość pamięci systemowej: 128GB • Obsługa Intel®...
  • Seite 126 • 3 x gniazda PCI Express 3.0 x1 • Obsługa AMD Quad CrossFireX i CrossFireX • 1 x gniazdo M.2 (Key E), z obsługą modułu WiFi/BT typu 2230 i Intel® CNVi (Zintegrowany WiFi/BT) Grafika * Wbudowana grafika Intel® UHD i wyjścia VGA są obsługiwane wyłącznie z procesorami, które mają...
  • Seite 127 H570 Phantom Gaming 4 • Gigabit LAN 10/100/1000 Mb/s • Giga PHY Intel® I219V • Obsługa Wake-On-LAN • Obsługa zabezpieczenia przed wyładowaniami atmosferycznymi/ • Obsługa Energy Efficient Ethernet 802.3az • Obsługa PXE Tylny panel • 1 x port myszy/klawiatury PS/2 • 1 x port HDMI...
  • Seite 128 • 1 x 4 pinowe 12V złącze zasilania (Złącze zasilania Hi-Density) • 1 x złącze audio na panelu przednim • 1 x złącze Thunderbolt AIC (5-pinowe) (Obsługa kart ASRock Thunderbolt 4 AIC) • 2 x złącza główkowe USB 2.0 (Obsługa 4 portów USB 2.0) (Obsługa zabezpieczenia ESD)
  • Seite 129 H570 Phantom Gaming 4 Monitor • Obrotomierz wentylatora: CPU, CPU/pompa wodna, wentylatory sprzętu obudowy/pompy wodnej • Cichy wentylator (Automatyczna regulacja prędkości obrotowej wentylatora obudowy przez temperaturę CPU): CPU, CPU/ pompa wodna, wentylatory obudowy/pompy wodnej • Kontrola wielu prędkości obrotowych wentylatora: CPU, CPU/ pompa wodna, wentylatory obudowy/pompy wodnej • Monitorowanie napięcia: CPU Vcore, PCH, DRAM, VCCIO,...
  • Seite 130 1.3 Ustawienia zworek Ta ilustracja pokazuje ustawienia zworek. Po umieszczeniu nasadki zworki na pinach, zworka jest “Zwarta”. Jeśli nasadka zworki nie jest umieszczona na pinach, zworka jest “Otwarta”. Zworka usuwania danych z pamięci CMOS (CLRMOS1) 2-pin Jumper (sprawdź s.1, Nr 22) CLRMOS1 umożliwia usunięcie wszystkich danych z pamięci CMOS.
  • Seite 131 H570 Phantom Gaming 4 1.4 Wbudowane złącza główkowe i inne złącza Wbudowane złącza główkowe i inne złącza są bezzworkowe. NIE należy umieszczać zworek nad tymi złączami główkowymi i złączami. Umieszczanie zworek nad złączami główkowymi i złączami spowoduje trwałe uszkodzenie płyty głównej.
  • Seite 132 Dioda LED zasilania i Podłącz to tego złącza SPEAKER złącze główkowe głośnika główkowego diodę LED zasilania DUMMY DUMMY (7-pinowe SPK_PLED1) obudowy i głośnik obudowy . (sprawdź s.1, Nr 20) PLED+ PLED+ PLED- Złącza Serial ATA3 Te sześć złączy SATA3 obsługuje Kąt prosty: kable danych SATA dla (SATA3_0:...
  • Seite 133 H570 Phantom Gaming 4 Złącza główkowe USB 3.2 Na tej płycie głównej znajdują Vbus Vbus Vbus IntA_PB_SSRX- Gen1 się dwa złącza główkowe. Każde IntA_PB_SSRX+ IntA_PA_SSRX- Pionowy: złącze główkowe USB 3.2 Gen1 IntA_PA_SSRX+ IntA_PB_SSTX- (19-pinowe USB3_3_4) może obsługiwać dwa porty. IntA_PA_SSTX-...
  • Seite 134 Złącze /wentylatora Ta płyta główna udostępnia pompy wodnej obudowy cztery 4-pinowe złącza obudowy (4-pinowe CHA_FAN1/ wentylatora chłodzenia FAN_VOLTAGE wodnego. Jeśli planowane FAN_SPEED FAN_SPEED_CONTROL (sprawdź s.1, Nr 12) jest podłączenie 3-pinowego (4-pinowe CHA_FAN2/ wentylatora chłodzenia wodnego obudowy, należy go podłączyć (sprawdź s.1, Nr 29) do pinów 1-3.
  • Seite 135 H570 Phantom Gaming 4 Złącze zasilania ATX 12V Ta płyta główna udostępnia (8-pinowe ATX12V1) 8-pinowe złącze zasilania ATX (sprawdź s.1, Nr 1) 12V. W celu użycia 4-pinowego zasilacza ATX, należy podłączyć je wzdłuż pinu 1 i pinu 5. *Ostrzeżenie: Upewnij się, że podłączony kabel zasilający...
  • Seite 136 złącze główkowe SPI TPM To złącze obsługuje system SPI_DQ3 +3.3V (13-pinowe SPI_TPM_J1) SPI Trusted Platform Module TPM_Present (sprawdź s.1, Nr 21) (TPM), który może bezpiecznie SPI_MOSI przechowywać klucze, RST# TPM_PIRQ certyfikaty cyfrowe, hasła i dane. System TPM pomaga także w zwiększeniu zabezpieczenia sieci, SPI_TPM_CS# ochronie cyfrowych danych...
  • Seite 137 H570 Phantom Gaming 4 1 개요 ASRock H570 Phantom Gaming 4 마더보드를 구입해 주셔서 감사합니다 . 이 마더보드 는 ASRock 의 일관되고 엄격한 품질관리 하에 생산되어 신뢰성이 우수합니다 . 품질 과 내구성에 대한 ASRock 의 기준에 부합하는 우수한 성능과 견고한 설계를 제공합니...
  • Seite 138 (i9/i7) 은 DDR4 최대 2933 지원 , Core (i5/i3), Pentium® 및 Celeron® 은 DDR4 최대 2666 을 지원합니다 . * 추가 정보를 원하시면 ASRock 웹사이트에 있는 메모리 지원 목록을 참조하십시오 . (http://www.asrock.com/) • ECC UDIMM 메모리 모듈 ( 비 -ECC 모드에서 작동함 ) 지원...
  • Seite 139 H570 Phantom Gaming 4 • PCI Express 3.0 x1 슬롯 3 개 • AMD Quad CrossFireX 및 CrossFireX 지원 • M.2 소켓 (E 키 ) 1 개 , 타입 2230 WiFi/BT 모듈 및 Intel® CNVi( 통합형 WiFi/BT) 지원 * Intel® UHD 그래픽스 빌트 - 인 비주얼과 VGA 출력은 GPU 통...
  • Seite 140 • Ultra M.2 소켓 (M2_3) 1 개 , M 키 타입 2260/2280/22110 M.2 SATA3 6.0 Gb/s 모듈 지원 및 Gen3 까지의 M.2 PCI Express 모 듈 4 개 지원 (32 Gb/s)** ** Intel® Optane 기술 지원 ** NVMe SSD 를 부팅 디스크로 사용 가능하도록 지원 ** ASRock U.2 키트 지원...
  • Seite 141 • 4 핀 12V 전원 커넥터 1 개 ( 고밀도 전원 커넥터 ) • 전면 패널 오디오 커넥터 1 개 • Thunderbolt AIC 커넥터 1 개 (5 핀 )(ASRock Thunderbolt 4 AIC 카드 지원 ) • USB 2.0 헤더 2 개 (USB 2.0 포트 4 개 지원 ) (ESD 보호 지원 ) •...
  • Seite 142 인증 • ErP/EuP 사용 가능 (ErP/EuP 사용 가능 전원공급장치 필요 ) * 자세한 제품 정보에 대해서는 당사 웹사이트를 참조하십시오 : http://www.asrock.com BIOS 설정을 조정하거나 Untied Overclocking Technology 를 적용하거나 타업체 의 오버클로킹 도구를 사용하는 것을 포함하는 오버클로킹에는 어느 정도의 위...
  • Seite 143 H570 Phantom Gaming 4 1.3 점퍼 설정 그림은 점퍼를 어떻게 설정하는지 보여줍니다 . 점퍼 캡을 핀에 씌우면 점퍼가 “단 락” 됩니다 . 점퍼 캡을 핀에 씌우지 않으면 점퍼가 “단선”됩니다 . Clear CMOS 점퍼 (CLRMOS1) (1 페이지 , 22 번 항목 참...
  • Seite 144 1.4 온보드 헤더 및 커넥터 온보드 헤더와 커넥터는 점퍼가 아닙니다 . 점퍼 캡을 온보드 헤더와 커넥터에 씌우지 마십시오 . 점퍼 캡을 온보드 헤더와 커넥터에 씌우면 마더보드가 영구 적으로 손상됩니다 . 섀시의 전원 버튼 , 리셋 버튼 , 시스템 패널 헤더 PLED+ PLED- (9 핀...
  • Seite 145 H570 Phantom Gaming 4 전원 LED 및 스피커 헤더 섀시 전원 LED 와 섀시 스피커 SPEAKER (7 핀 SPK_PLED1) 를 이 헤더에 연결하십시오 . DUMMY DUMMY (1 페이지 , 20 번 항목 참 조 ) PLED+ PLED+ PLED- 시리얼 ATA3 커넥터...
  • Seite 146 USB 3.2 Gen1 헤더 이 마더보드에는 헤더 두 개가 Vbus Vbus Vbus IntA_PB_SSRX- 수직 : 있습니다 . 각 USB 3.2 Gen1 헤 IntA_PB_SSRX+ IntA_PA_SSRX- (19 핀 USB3_3_4) IntA_PA_SSRX+ 더는 포트 두 개를 지원할 수 IntA_PB_SSTX- (1 페이지 , 11 번 항목 있습니다...
  • Seite 147 H570 Phantom Gaming 4 섀시 / 워터 펌프 팬 커 이 마더보드에는 4 핀 수냉식 섀시 팬 커넥터 4 개가 탑재되 넥터 (4 핀 CHA_FAN1/WP) 어 있습니다 . 3 핀 섀시 수냉식 FAN_VOLTAGE (1 페이지 , 12 번 항목 쿨러 팬을 연결하려는 경우 핀...
  • Seite 148 ATX 12V 전원 커넥터 이 마더보드에는 8 핀 ATX (8 핀 ATX12V1) 12V 전원 커넥터가 탑재되어 (1 페이지 , 1 번 항목 참 있습니다 . 4 핀 ATX 전원공급 조 ) 장치를 사용하려면 핀 1 과 핀 5 을 따라 연결하십시오 . * 경고...
  • Seite 149 H570 Phantom Gaming 4 SPI TPM 헤더 이 커넥터는 키 , 디지털 인 SPI_DQ3 +3.3V (13 핀 SPI_TPM_J1) 증서 , 암호 및 데이터를 안 TPM_Present (1 페이지 , 21 번 항목 참 SPI_MOSI 전하게 보관할 수 있는 SPI RST# 조 )
  • Seite 150 さい。 ASRock のウェブサイ トでは、 最新の VGA カードおよび CPU サポート一覧も ご覧になれます。 ASRock ウェブサイ ト http://www.asrock.com. 1.1 パッケージの内容 • ASRock H570 Phantom Gaming 4 マザーボード (ATX フォームファクター) • ASRock H570 Phantom Gaming 4 クイックインストールガイ ド • ASRock H570 Phantom Gaming 4 サポート CD •...
  • Seite 151 H570 Phantom Gaming 4 1.2 仕様 • ATX フォームファクタ プラッ ト • 固体コンデンサ設計 フォーム • 第 10 世代 Intel® Core プロセッサおよび第 11 Gen Intel® プロセッサ (LGA1200) をサポートします Core • デジタル電源設計 • 8 電源フェーズ設計 • Intel® ターボブースト Max テク ノロジー 3.0 に対応...
  • Seite 152 • 1 x M.2 ソケッ ト (Key E)、 タイプ 2230 WiFi/BT モジュールと Intel® CNVi (統合 WiFi/BT) に対応 * Intel® UHD グラフ ィ ックス内蔵ビジュアルおよび VGA 出力は、 グラフ ィ ッ ク GPU に統合されたプロセッサーのみでサポートされます。 ス • 第 11 世代 Intel® Core プロセッサは、 Intel® X グラフ...
  • Seite 153 H570 Phantom Gaming 4 • 1 x PS/2 マウス / キーボードポート リアパネル • 1 x HDMI ポート • 1 x DisplayPort 1.4 • 1 x USB 3.2 Gen2 Type-A ポート (10 Gb/s) (リ ドライバ) ( 静電 気放電 (ESD) 保護に対応) • 1 x USB 3.2 Gen2 Type-C ポート (10 Gb/s) (リ ドライバ) ( 静電...
  • Seite 154 • 1 x SPI TPM ヘッダー コネクタ • 1 x 電源 LED とスピーカーヘッダー • 2 x RGB LED ヘッダー * 合計 12V/3A、 36W までの LED ストリ ップに対応 • 2 x アドレサブル LED ヘッダー * 合計 5V/3A、 15W までの LED ストリ ップに対応 •...
  • Seite 155 CPU PLL、 +12V、 +5V、 +3.3V • Microsoft® Windows® 10 64-bit 認証 • FCC、 CE • ErP/EuP Ready (ErP/EuP 対応電源供給装置が必要です) * 商品詳細については、 当社ウェブサイ トをご覧く ださい。 http://www.asrock.com BIOS 設定の調整、 アンタイ ドオーバークロックテク ノロジーの適用、 サードパー ティのオーバークロックツールの使用などを含む、 オーバークロックには、 一定の リスクを伴いますのでご注意く ださい。 オーバークロックするとシステムが不安定 になったり、 システムのコンポーネントやデバイスが破損するこ とがあります。 ご自...
  • Seite 156 1.3 ジャンパー設定 このイラストは、 ジャンパーの設定方法を示しています。 ジャンパーキャップがピンに被 さっていると、 ジャンパーは 「ショート」 です。 ジャンパーキャップがピンに被さっていない 場合には、 ジャンパーは 「オープン」 です。 CMOS ク リアジャンパー (CLRMOS1) 2-pin Jumper (p.1、 No. 22 参照) CLRMOS1 を使って CMOS 内のデータをクリアできます。 クリアして、 デフォルト設定に システムパラメーターをリセッ トするには、 コンピューターの電源を切り、 電源から電源 コードを抜いてく ださい。 15 秒間待ってから、 ジャンパーキャップを使用して CLRMOS1 上のピンを...
  • Seite 157 H570 Phantom Gaming 4 1.4 オンボードのヘッダーとコネクタ オンボードヘッダーとコネクタはジャンパーではありません。 これらヘッダーとコネ クタにはジャンパーキャップを被せないでく ださい。 ヘッダーおよびコネクタにジャ ンパーキャップを被せると、 マザーボードに物理損傷が起こるこ とがあります。 システムパネルヘッダー 電源ボタンを接続し、 ボタンを PLED+ PLED- (9 ピン PANEL1) リセッ トし、 下記のピン割り当て PWRBTN# (p.1、 No. 19 参照) に従って、 シャーシのシステムス テータス表示ランプをこのヘッ ダーにセッ トします。 ケーブルを RESET# HDLED- 接続するときには、 ピンの+と...
  • Seite 158 電源 LED とスピーカーヘ シャーシ電源 LED とシャーシス SPEAKER ッダー ピーカーをこのヘッダーに接続 DUMMY DUMMY (7 ピン SPK_PLED1) してく ださい。 (p.1、 No. 20 参照) PLED+ PLED+ PLED- シリアル ATA3 コネクタ これら 6 つの SATA3 コネクター 直角 : は、 最高 6.0 Gb/s のデータ転送 (SATA3_0: 速度で内部ストレージデバイス p.1、...
  • Seite 159 H570 Phantom Gaming 4 USB 3.2 Gen1 ヘッダー このマザーボードには 2 つの Vbus Vbus Vbus IntA_PB_SSRX- 垂直 : ヘッダーが装備されています。 IntA_PB_SSRX+ IntA_PA_SSRX- (19 ピン USB3_3_4) 各 USB 3.2 Gen1 ヘッダーは、 IntA_PA_SSRX+ IntA_PB_SSTX- (p.1、 No. 11 参照) 2 つのポートをサポートできま IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ す。...
  • Seite 160 シャーシ / ウォーターポ このマザーボードには 4 つの 4 ンプファンコネクタ ピン水冷却シャーシがコネクタ (4 ピン CHA_FAN1/WP) 用に装備されています。 3 ピン FAN_VOLTAGE (p.1、 No. 12 参照) のシャーシ水冷却ファンを接 FAN_SPEED FAN_SPEED_CONTROL (4 ピン CHA_FAN2/WP) 続する場合には、 ピン 1-3 に接 (p.1、 No. 29 参照) 続してく ださい。 (4 ピン CHA_FAN3/WP) (p.1、 No. 9 参照) (4 ピン...
  • Seite 161 H570 Phantom Gaming 4 ATX 12V 電源コネクタ このマザーボードは 8 ピン (8 ピン ATX12V1) ATX12V 電源コネクタが装備 (p.1、 No. 1 参照) されています。 4 ピンの ATX 電 源を使用するには、 ピン 1 と 5 に合わせて接続してく ださい。 * 警告 : 接続されている電源 ケーブルが、 グラフ ィ ッ クスカー...
  • Seite 162 SPI TPM ヘッダー このコネクタは SPI トラステッ SPI_DQ3 +3.3V (13 ピン SPI_TPM_J1) ド ・ プラッ トフォーム ・ モジュー TPM_Present (p.1、 No. 21 参照) ル (TPM) システムに対応する SPI_MOSI RST# ので、 鍵、 デジタル証明書、 パス TPM_PIRQ ワード、 データを安全に保管で きます。 TPM システムはまた、 ネッ トワークセキュリティを高 SPI_TPM_CS# め、...
  • Seite 163 上,我们不会另外进行通知。如果您需要与此主板相关的技术支持,请访问我 们的网站以具体了解所用型号的信息。您也可以在华擎网站上找到最新 VGA 卡和 CPU 支持列表。华擎网站 http://www.asrock.com。 1.1 包装清单 • 华擎 H570 Phantom Gaming 4 主板(ATX 规格尺寸) • 华擎 H570 Phantom Gaming 4 快速安装指南 • 华擎 H570 Phantom Gaming 4 支持光盘 • 2 x 串行 ATA (SATA) 数据线(选购) • 4 x 螺丝(供 M.2 插座使用)(选购)...
  • Seite 164 (i9/i7) 可支持的 DDR4 的最高频率为 2933;Core (i5/i3)、Pentium® 和 Celeron® 可支持的 DDR4 的最 高频率为 2666。 * 请参阅华擎网站上的 Memory Support List(内存支持列表) 了解详情。(http://www.asrock.com/) • 支持 ECC UDIMM 内存模块(非 ECC 模式操作) • 支持系统内存最大容量:128GB • 支持 Intel® Extreme Memory Profile (XMP) 2.0 扩充槽 第 11 代 Intel® Core 处理器...
  • Seite 165 H570 Phantom Gaming 4 • 3 x PCI Express 3.0 x1 槽 • 支持 AMD Quad CrossFireX 和 CrossFireX • 1 x M.2 Socket (Key E),支持类型 2230 WiFi/BT 模块和 Intel® CNVi ( 集成 WiFi/BT) * 只有 GPU 集成的处理器才支持 Intel® UHD Graphics 内置视效...
  • Seite 166 • 1 x PS/2 鼠标 / 键盘端口 后面板 I/O • 1 x HDMI 端口 • 1 x DisplayPort 1.4 • 1 x USB 3.2 Gen2 A 类型端口 (10 Gb/s) (ReDriver)(支持 ESD 保护) • 1 x USB 3.2 Gen2 C 类型端口 (10 Gb/s) (ReDriver)(支持 ESD 保护)...
  • Seite 167 • 1 x 8 针 12V 电源接口(高密度电源接口) • 1 x 4 针 12V 电源接口(高密度电源接口) • 1 x 前面板音频接口 • 1 x Thunderbolt AIC 接口(5 针)(仅支持 ASRock Thunderbolt 4 AIC 卡) • 2 x USB 2.0 接脚(支持 4 个 USB 2.0 端口,支持 ESD 保护)...
  • Seite 168 操作系统 • Microsoft® Windows® 10 64-bit 认证 • FCC、CE • ErP/EuP 支持(需要支持 ErP/EuP 的电源) * 有关详细产品信息,请访问我们的网站:http://www.asrock.com 须认识到超频会有一定风险,包括调整 BIOS 设置,应用“自由超频技术”, 或使用第三方超频工具。超频可能会影响到系统的稳定性,甚至对系统的组件 和设备造成损坏。执行这项工作您应自担风险和费用。我们对由于超频而造成 的损坏概不负责。...
  • Seite 169 H570 Phantom Gaming 4 1.3 跳线设置 此图显示如何设置跳线。将跳线帽装到这些针脚上时,跳线 “短接”。如果这些针 脚上没有装跳线帽,跳线 “开路”。 清除 CMOS 跳线 (CLRMOS1) (见第 1 页,第 22 个) 2-pin Jumper CLRMOS1 允许您清除 CMOS 中的数据。要清除和重置系统参数到默认设置,请关 闭计算机,从电源上拔下电源线插头。等候 15 秒后,使用跳线帽将 CLRMOS1 上 的针脚短接 5 秒。但是,请勿在更新 BIOS 后立即清除 CMOS。如果您需要在刚完 成 BIOS 更新后清除 CMOS,则必须先启动系统,并在关闭后再执行清除 CMOS 操...
  • Seite 170 1.4 板载接脚和接口 板载接脚和接口不是跳线。不要将跳线帽装到这些接脚和接口上。将跳线帽装 到这些接脚和接口上将会对主板造成永久性损坏。 系统面板接头 按照下面的针脚分配,将机箱 PLED+ PLED- (9 针 PANEL1) 上的电源按钮、重置按钮和系 PWRBTN# (见第 1 页, 第 19 个) 统状态指示灯连接到此接脚。 在连接线缆前请记下正负针 RESET# 脚。 HDLED- HDLED+ PWRBTN(电源按钮): 连接到机箱前面板上的电源按钮。您可以配置使用电源按钮关闭系统的方式。 RESET(重置按钮): 连接到机箱前面板上的重置按钮。如果计算机死机,无法执行正常重新启动, 按重置按钮重新启动计算机。 PLED(系统电源 LED): 连接到机箱前面板上的电源状态指示灯。系统操作操作时,此 LED 亮起。系统 处在 S1/S3 睡眠状态时,此 LED 闪烁。系统处在 S4 睡眠状态或关机 (S5) 时, 此...
  • Seite 171 H570 Phantom Gaming 4 电源 LED 和扬声器接脚 请将机箱电源 LED 和机箱扬声 SPEAKER (7 针 SPK_PLED1) DUMMY 器连接到此接脚。 DUMMY (见第 1 页,第 20 个) PLED+ PLED+ PLED- 串行 ATA3 接口 这六个 SATA3 接口支持最高 6.0 Gb/s 数据传输速率的内部存储 直角: 设备的 SATA 数据线。 (SATA3_0: 见第 1 页, 第 17 个)(上)...
  • Seite 172 USB 3.2 Gen1 接脚 此主板上有 2 个接脚。每个 Vbus Vbus Vbus IntA_PB_SSRX- USB 3.2 Gen1 接脚可以支持两 垂直: IntA_PB_SSRX+ IntA_PA_SSRX- (19 针 USB3_3_4) IntA_PA_SSRX+ 个端口。 IntA_PB_SSTX- (见第 1 页,第 11 个) IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ IntA_PB_D- IntA_PA_D- IntA_PB_D+ IntA_PA_D+ Dummy 直角: Dummy IntA_PA_D+ IntA_PB_D+ IntA_PA_D- (19 针...
  • Seite 173 H570 Phantom Gaming 4 机箱 / 水泵风扇接口 此主板提供四个 4 针水冷机箱 (4 针 CHA_FAN1/WP) 风扇接口。如果您打算连接 3 (见第 1 页, 第 12 个) 针 机箱水冷风扇,请将它连 FAN_VOLTAGE (4 针 CHA_FAN2/WP) 接到针脚 1-3。 FAN_SPEED FAN_SPEED_CONTROL (见第 1 页, 第 29 个) (4 针 CHA_FAN3/WP)...
  • Seite 174 ATX 12V 电源接口 此主板提供 8 针 ATX 12V 电 (8 针 ATX12V1) 源接口。要使用 4 针 ATX 电 (见第 1 页,第 1 个) 源,请沿针脚 1 和针脚 5 插接 它。 * 警告 : 请确保连接的电源线 用于 CPU,而非图形卡。不要 将 PCIe 电源线插接到此接口。 ATX 12V 电源接口 请将...
  • Seite 175 H570 Phantom Gaming 4 SPI TPM 接脚 此接口支持 SPI Trusted SPI_DQ3 +3.3V (13 针 SPI_TPM_J1) Platform Module(信任平台模 TPM_Present SPI_MOSI (参见第 1 页,第 21 个) 块,TPM)系统,可以安全地 RST# TPM_PIRQ 存储密钥、数字证书、密码和 数据。TPM 系统也可以帮助 增强网络安全,保护数字身份 SPI_TPM_CS# 和确保平台完整性。 RSMRST# SPI_MISO SPI_CS0 SPI_DQ2 Thunderbolt AIC 接口...
  • Seite 176 电子信息产品污染控制标示 依据中国发布的「电子信息产品污染控制管理办法」及 SJ/T 11364-2006「电子 信息产品污染控制标示要求」,电子信息产品应进行标示,藉以向消费者揭露 产品中含有的有毒有害物质或元素不致发生外泄或突变从而对环境造成污染或 对人身、财产造成严重损害的期限。依上述规定,您可于本产品之印刷电路板 上看见图一之标示。图一中之数字为产品之环保使用期限。由此可知此主板之 环保使用期限为 10 年。 图一 有毒有害物质或元素的名称及含量说明 若您欲了解此产品的有毒有害物质或元素的名称及含量说明,请参照以下表格 及说明。 有害物质或元素 部件名称 铅 (Pb) 镉 (Cd) 汞 (Hg) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 印刷电路板 及电子组件 外部信号连 接头及线材 O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定 的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 标准 规定的限量要求,然该部件仍符合欧盟指令...
  • Seite 177 H570 Phantom Gaming 4 1 簡介 感謝您購買華擎 H570 Phantom Gaming 4 主機板, 本主機板經華擎嚴格品管製作, 是一 套讓人信賴的可靠產品。本產品採耐用設計所展現的優異效能,完全符合華擎對品質 及耐用度的承諾。 由於主機板規格及 BIOS 軟體可能會更新, 所以本文件內容如有變更, 恕不另行 通知。如本文件有任何修改,可至華擎網站逕行取得更新版本,不另外通知。若 您需要與本主機板相關的技術支援,請上我們的網站瞭解有關您使用機型的特 定資訊。您也可以在華擎網站找到最新的 VGA 卡及 CPU 支援清單。華擎網站 http://www.asrock.com。 1.1 包裝內容 • 華擎 H570 Phantom Gaming 4 主機板(ATX 尺寸) • 華擎 H570 Phantom Gaming 4 快速安裝指南...
  • Seite 178 * 第10 代 Intel® Core (i9/i7) 支援最高 2933 DDR4 ; Core (i3)、 Pentium® 和 Celeron® 支援最高 2666 DDR4。 * 如需更多資訊,請參閱華擎網站上的記憶體支援表。 (http://www.asrock.com/) • 支援 ECC UDIMM 記憶體模組 ( 於非 ECC 模式下運作 ) • 最大系統記憶體容量:128GB • 支援 Intel® Extreme Memory Profile (XMP) 2.0 ®...
  • Seite 179 H570 Phantom Gaming 4 顯示卡 * 僅限整合 GPU 的處理器才可支援 Intel® UHD Graphics Built-in Visuals 及 VGA 輸出。 • 第 11 代 Intel® Core 處理器支援 Intel® X 顯示卡架構 (第 12 代 )。第 10 代 Intel® Core 處理器支援第 9 代顯示卡 • 顯示卡、 媒體和運算 : Microsoft DirectX 12、 OpenGL 4.5、 Intel®...
  • Seite 180 • 1 x USB 3.2 Gen2 C 類型連接埠 (10 Gb/s) (ReDriver) (支援靜電保護) • 2 x USB 3.2 Gen1 連接埠 (支援靜電保護) • 2 x USB 2.0 連接埠 (支援靜電保護) • 1 x RJ-45 LAN 連接埠,含 LED (ACT/LINK LED 及 SPEED LED) • HD 音訊插孔:線路輸入/前置喇叭/麥克風 儲存裝置...
  • Seite 181 H570 Phantom Gaming 4 * 如果 3-pin 或 4-pin 風扇使用中,可自動偵測 CPU_FAN2/ WP、CHA_FAN1/WP、CHA_FAN2/WP、CHA_FAN3/WP 和 CHA_FAN4/ WP。 • 1 x 24 pin ATX 電源接頭 • 1 x 8 pin 12V 電源接頭(高密度電源接頭) • 1 x 4 pin 12V 電源接頭(高密度電源接頭) • 1 x 前面板音訊接頭...
  • Seite 182 1.3 跳線設定 圖例顯示設定跳線的方式。 當跳線帽套在針腳上時, 該跳線為 「短路」 。 若沒有跳線帽套 在針腳上,該跳線為「開啟」。 清除 CMOS 跳線 (CLRMOS1) 2-pin Jumper (請參閱第 1 頁, 編號 22) 您可利用 CLRMOS1 清除 CMOS 中的資料。若要清除及重設系統參數為預設設定, 請先關閉電腦電源,再拔下電源供應器的電源線。在等待 15 秒後,請使用跳線帽讓 CLRMOS1 上的 pin 短路約 5 秒。 不過, 請不要在更新 BIOS 後立即清除 CMOS。 若您需 在更新...
  • Seite 183 H570 Phantom Gaming 4 1.4 板載排針及接頭 板載排針及接頭都不是跳線。 請勿將跳線帽套在這些排針及接頭上。 將跳線帽套 在排針及接頭上,將造成主機板永久性的受損。 系統面板排針 請依照以下的針腳排列將機殼 PLED+ PLED- (9-pin PANEL1) 上的電源按鈕、重設按鈕及系 PWRBTN# (請參閱第 1 頁, 編號 19) 統狀態指示燈連接至此排針。 在連接纜線之前請注意正負針 RESET# 腳。 HDLED- HDLED+ PWRBTN ( 電源按鈕 ): 連接至機殼前面板上的電源按鈕。 您可設定使用電源按鈕關閉系統電源的方式。 RESET ( 重設按鈕 ): 接至機殼前面板上的重設按鈕。 若電腦當機且無法執行正常重新啟動, 按下重設...
  • Seite 184 電源 LED 及喇叭排針 請將機殼電源 LED 及機殼喇叭 SPEAKER DUMMY (7-pin SPK_PLED1) 連接至此排針。 DUMMY (請參閱第 1 頁, 編號 20) PLED+ PLED+ PLED- Serial ATA3 接頭 這六組 SATA3 接頭皆支援內部 直角: 儲存裝置的 SATA 資料纜線,最 (SATA3_0: 高可達 6.0 Gb/s 資料傳輸率。 請參閱第 1 頁, 編號 17) * 若...
  • Seite 185 H570 Phantom Gaming 4 USB 3.2 Gen1 排針 本主機板上含有兩組排針。各 Vbus Vbus Vbus IntA_PB_SSRX- 垂直 : USB 3.2 Gen1 排針皆可支援兩 IntA_PB_SSRX+ IntA_PA_SSRX- IntA_PA_SSRX+ (19-pin USB3_3_4) 個連接埠。 IntA_PB_SSTX- (請參閱第 1 頁, 編號 11) IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ IntA_PB_D- IntA_PA_D- IntA_PB_D+ IntA_PA_D+ Dummy 直角:...
  • Seite 186 機殼/水冷幫浦風扇 本主機板配備四個 4-Pin 水冷 接頭 機殼風扇接頭。若您計畫連接 (4-pin CHA_FAN1/WP) 3-Pin CPU 機殼水冷風扇, 請接 FAN_VOLTAGE (請參閱第 1 頁, 編號 12) 至 Pin 1-3。 FAN_SPEED FAN_SPEED_CONTROL (4-pin CHA_FAN2/WP) (請參閱第 1 頁, 編號 29) (4-pin CHA_FAN3/WP) (請參閱第 1 頁, 編號 9) (4-pin CHA_FAN4/WP) (請參閱第 1 頁, 編號 18) FAN_SPEED_CONTROL CPU 風扇接頭...
  • Seite 187 H570 Phantom Gaming 4 ATX 12V 電源接頭 請將 ATX 12V 電源接至此接 (4-pin ATX12V2) 頭。 (請參閱第 1 頁, 編號 2) * 電源插頭僅能以單一方向插 入此連接器。 * 將 ATX 12V 4-pin 纜線連接 至 ATX12V2 屬於選擇性。 * 就進階超頻而言,建議將此 接頭與 ATX12V1 搭配使用。 前面板 Type C USB 3.2 本主機板具有一個前面板...
  • Seite 188 RGB LED 排針 RGB 排針用於連接 RGB LED (4-pin RGB_LED1) 延長線,可供使用者選擇各種 12V G R (請參閱第 1 頁, 編號 25) LED 照明效果。 警告:切勿以錯誤方向安裝 RGB LED 纜線,否則纜線可能 (4-pin RGB_LED2) 損壞。 (請參閱第 1 頁, 編號 7) * 關於這種排針的詳細說明, 請參閱第 39 頁。 可定址 LED 排針 此排針用於連接可讓使用者選...
  • Seite 189 Gen 10 (i9/i7) mendukung DDR4 hingga 2933; Core (i5/i3), Pentium® dan Celeron® mendukung DDR4 hingga 2666. * Lihat Daftar Dukungan Memori pada situs web ASRock untuk informasi selengkapnya. (http://www.asrock.com/) • Mendukung modul memori ECC UDIMM (berjalan dalam mode non-ECC) • Kapasitas maksimum memori sistem: 128GB • Mendukung Intel®...
  • Seite 190 • 3 x Slot PCI Express 3.0 x1 • Mendukung AMD Quad CrossFireX dan CrossFireX • 1 x Soket M.2 (Tombol E), mendukung modul jenis 2230 WiFi/ BT dan Intel® CNVi (WiFi/BT terintegrasi) Grafis * Intel® UHD Graphics Built-in Visuals dan output VGA hanya didukung dengan prosesor yang terintegrasi GPU.
  • Seite 191 H570 Phantom Gaming 4 I/O Panel • 1 x Port Mouse/Keyboard PS/2 Belakang • 1 x Port HDMI • 1 x DisplayPort 1.4 • 1 x Port USB 3.2 Gen2 Tipe-A (10 Gb/s) (ReDriver) (Mendukung Perlindungan ESD) • 1 x Port USB 3.2 Gen2 Tipe-C (10 Gb/s) (ReDriver) (Mendukung Perlindungan ESD) • 2 x Port USB 3.2 Gen1 (Mendukung Perlindungan dari ESD)
  • Seite 192 Konektor • 1 x Header SPI TPM • 1 x Header LED Daya dan Speaker • 2 x Header LED RGB * Mendukung total Strip LED hingga 12V/3A, 36W • 2 x Addressable LED Header * Mendukung total Strip LED hingga 5V/3A, 15W • 1 x Konektor Kipas CPU (4-pin) * Konektor Kipas CPU mendukung kipas CPU dengan daya kipas maksimum 1A (12W).
  • Seite 193 Sertifikasi • FCC, CE • Mendukung ErP/EuP (memerlukan catu daya untuk ErP/EuP) * Untuk informasi rinci tentang produk, kunjungi situs web kami: http://www.asrock.com Perlu diketahui, overclocking memiliki risiko tertentu, termasuk menyesuaikan pengaturan pada BIOS, menerapkan Teknologi Untied Overclocking, atau menggunakan alat bantu overclocking pihak ketiga.
  • Seite 194: Contact Information

    Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...
  • Seite 195: Declaration Of Conformity

    13848 Magnolia Ave, Chino, CA91710 Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product Product Name : Motherboard H570 Phantom Gaming 4 Model Number : Conforms to the following speci cations: FCC Part 15, Subpart B, Unintentional Radiators Supplementary Information: is device complies with part 15 of the FCC Rules. Operation is subject to the...
  • Seite 196: Eu Declaration Of Conformity

    EU Declaration of Conformity For the following equipment: Motherboard (Product Name) H570 Phantom Gaming 4 / ASRock (Model Designation / Trade Name) ASRock Incorporation (Manufacturer Name) 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address) EMC —Directive 2014/30/EU (from April 20th, 2016)

Inhaltsverzeichnis
