INSTALLATION

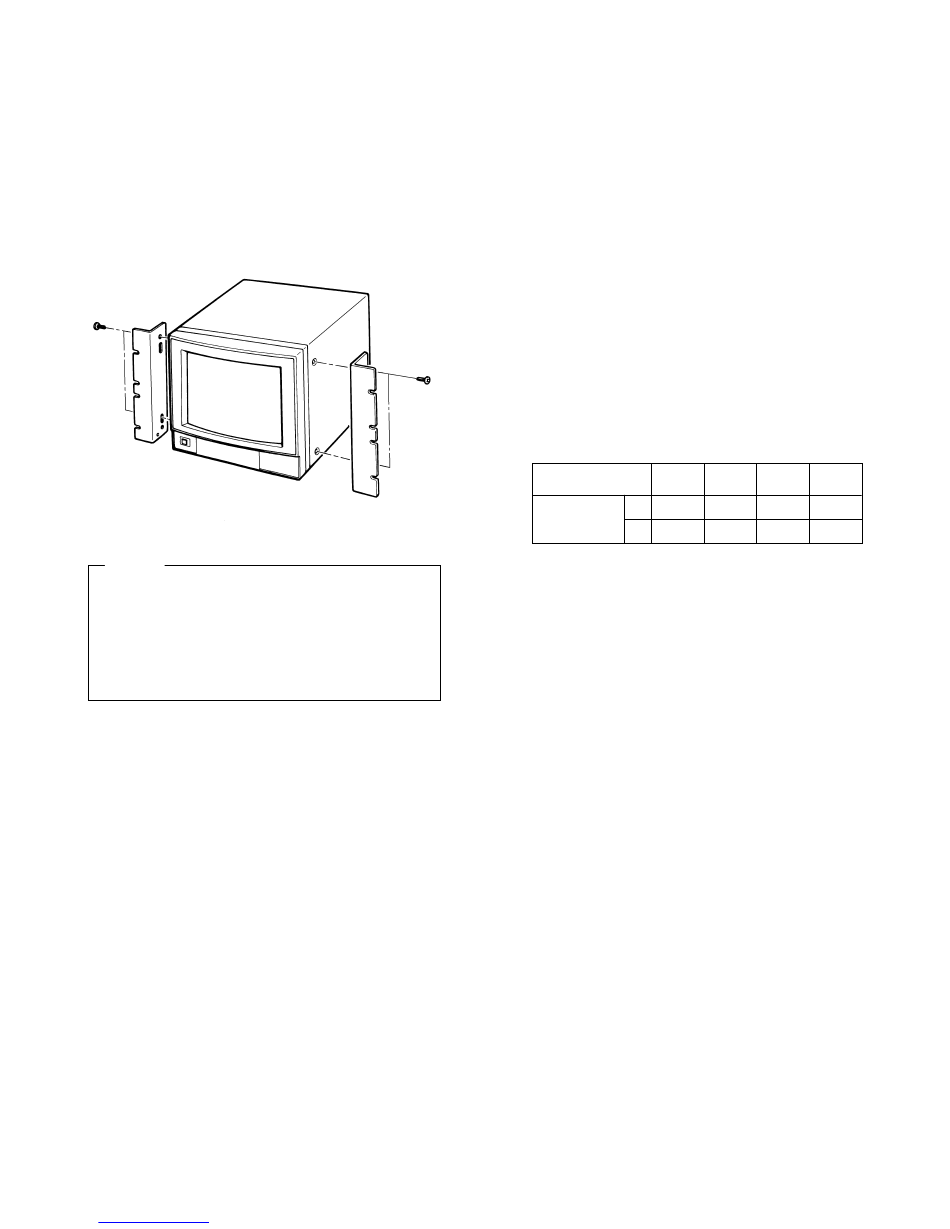

The Rack Angle Bracket WV-Q104 is provided for mounting
the Colour Video Monitor WV-CM1430 on the standard 19"
EIA rack.
(1) Remove four screws on both side of WV-CM1430.
These screws are no use after this.
(2) Fix the Rack Angle Bracket by using the supplied four
screws (M4 x 12).
(3) Mount the WV-CM1430 onto the rack by using the
eight screws (local procurement).
Cautions
• Do not block the ventilation opening or slots on the
cover to prevent the monitor from rising tempera-
ture. Always keep the temperature in the rack within
50°C (122°F).
• Secure the rear of the monitor to the rack by using
the additional mounting angles (procured locally)
when the vibration is added to the rack.
Downloaded from www.Manualslib.com manuals search engine

CABLE INFORMATION

Power Cable
1. Keep the Power Switch (1) in the OFF position during
installation.
2. Connect the Power Cord to a grounded electrical out-
let.
Video Cable
1. Use 75-ohm coaxial cable. [RG-59/U (3C-2V), RG-6/U
(5C-2V), RG-11/U (7C-2V), RG-15/U (10C-2V)]
2. Up to 10 monitors can be hooked up in this configura-
tion before signal loss occurs. Total cable length
should not exceed 150m (500 feet).
3. Wiring Precautions:
• Do not bend coaxial cable into a curve whose
radius is smaller than 10 times of its diameter:
• Never crush or pinch the cable.
All these will change the impedance of the cable and
cause poor picture quality.
M4 x 12
(4 pcs.)
Type of
coaxial cable
Recommended
maximum
cable length
-4-
RG-59/U RG-6U RG-11/U
(3C-2V) (5C-2V) (7C-2V)
(m) 250 500 600
(ft) 825 1,650 1,980
RG-15/U
(10C-2V)
800
2,640
