Wall mounting
• While mounting, take extra care or hire a technician to do it.
• Before mounting, make sure, that the wall is suitable for hanging
such devices. Producer is not responsible for damaged caused by
improper installation on a wall.
• Required tools are not included in set.
• Before drilling, make sure that there are not any wires inside a wall.

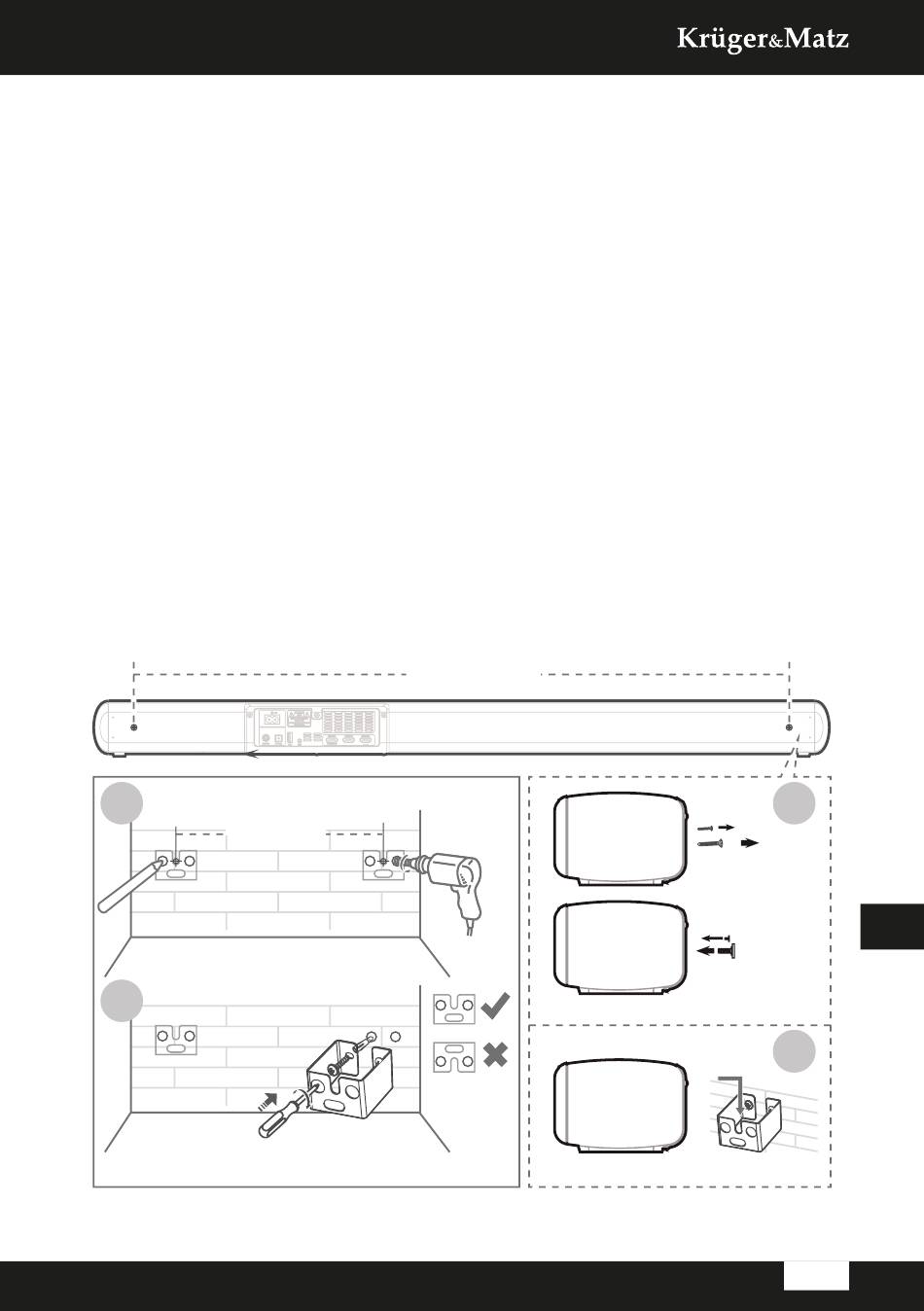

1. Drill 4 holes, parallel to each other (5,5 - 6 mm in diameter).
Distance between brackets must be 892 mm (see picture below).
2. Fix a dowel into each hole in the wall. Tighten the wall mount
brackets on the wall with screws. Make sure, that they are securely
installed.
3. Remove the screws from the back of the device. Install the wall
mounting screws into the back of the unit.
4. Slide the device into wall mount brackets.
1
892 mm
2
892 mm
3
Remove the
screws
Install the wall
mounting
screws
4 4
