Press button
to switch on the device. Press the sensor against the
surface. The sensor must be kept strictly perpendicular to the surface.
The result of coating thickness measurement will appear on the display.
If the device is in the single measurement mode, carry out the next
measurement three seconds after removing the device from the surface.

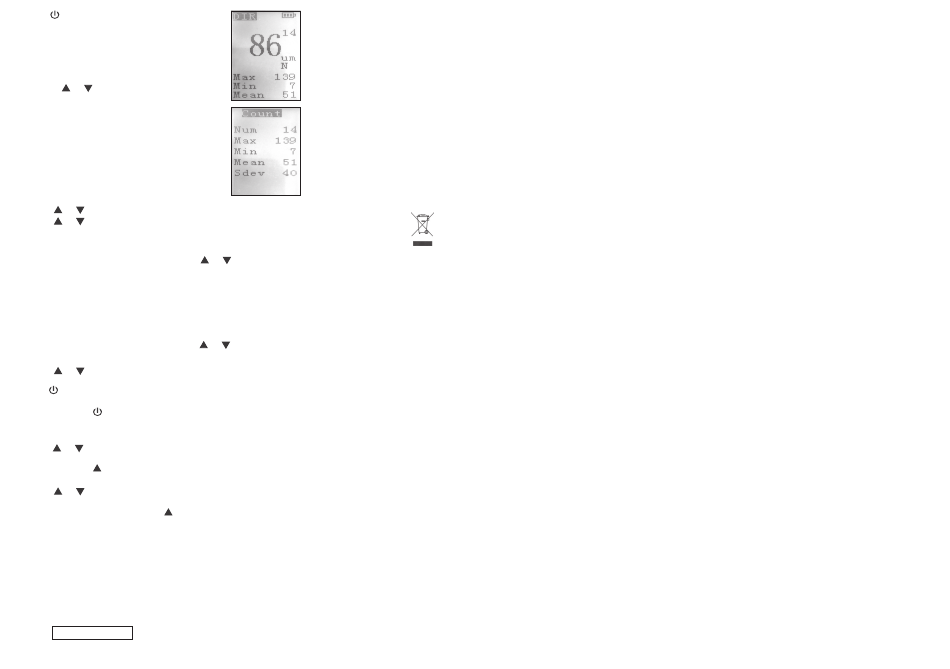

STATISTICS
Short press button ZERO/CAL to open the menu.
Press buttons
and
to select "COUNT"(Statistics) and press
buttons OK.
The device saves statistics on the last 80 measurements:
Num – the number of taken measurements (up to 80)
Max – maximal measurement value
Min – minimal measurement value
Mean – average value
Sdev – square deviation
If the number of measurements exceeds 80, new measurements will be
saved over the previous ones.
MEMORY
Short press button ZERO/CAL to open the menu.
Press buttons
and
to select "RECALL" (Memory) and press button OK.
Press buttons
and
, to view the results of taken measurements.
To exit the menu press button ESC required number of times.
MEMORY CLEANING
Short press button ZERO/CAL to open the menu. Pres buttons
press button OK. Select the measurement to be deleted and press button OK. Measurement result will
be deleted. To exit the menu press button ESC required number of times.
RESET TO FACTORY SETTINGS AND CALIBRATION
This function is used for the purpose of calibration. Prior to making measurements on a magnetic
surface carry out calibration on iron plate included in the delivery package, or on aluminum plate
before making measurements on a non-magnetic surface.
Short press button ZERO/CAL to open the menu. Press buttons
(reset to factory settings) and press button OK.
Press buttons
and
to select «Yes» and press button OK to confirm. The device will switch off
automatically.
Press button
to switch it on. Zero calibration is finished.
5 seconds after switching on the device press button ZERO/CAL. The device will switch off
automatically. Press button
to switch it on again.
Prepare film reference samples 50µm, 100µm, 250µm, 500µm и 1000µm.
Press button ZERO/CAL to open the menu and select "CALIBRATION".
Press buttons
and
, select «0» and press button OK to confirm.
Take the metal plate, put the sensor down onto the plare and do not detach the sensor from its surface
for 3 seconds. Press button
.
Press button OK. "Success" will appear on the display. Press button ESC to return to previous section.
Press buttons
and
, select «50» and press button OK to confirm.
Place the film 50µm on a metal plate. Bring the sensor down onto the surface and do not detach the
sensor from the surface for 3 seconds. Press button
.
Press button OK. "Success" will appear on the display. Press button ESC to return to previous section.
Thus, go through other calibration points using films 100µm, 250µm, 500µm и 1000µm included in
the delivery package.
Attention: It is recommended to make calibration at the mode of automatic probe and continuous
measurement.
DATA TRANSFER VIA USB INTERFACE
Connect the device with the PC or laptop by using of the USB cable included in the delivery package.
The program for transferring data to the PC is located on the CD included in the delivery package.
Run the program. Press the button OK. If the connection between the device and the program is
successful, a USB symbol will appear in the upper right corner of the display.
Data downloading
Press button
in the program.
The measuring results will be displayed in the program.
Attention: the program displays only the results of group measurements.
CARE AND MAINTENANCE
Attention! This device is a precision instrument and requires careful handling. Maintenance of the
following recommendations will extend the life of the device:
- Protect the device from bumps, falling and intense vibration; do not allow moisture, dust and foreign
objects get inside the device.
- If liquids get inside the device, first remove the batteries, then contact a service center.
- Do not store and use the device in increased humidity conditions.
- Do not store the product in rooms where temperature is below -10°С. After storage in low
temperature conditions and subsequent transfer to a warm room, the device heats up, causing
moisture condense inside the device and damage microcircuits.
- Do not expose the device to direct sunlight and protect it from prolonged exposure to sunlight and
high temperature.
- Clean the device with a soft cloth slightly made damp with a mild soap solution. Do not use cleaning
solvents or abrasives.
Failure to observe the following rules may lead to electrolyte leakage from the batteries and
damage the device:
- Remove the batteries from the device if you don't use it for a long time.
- Do not use batteries of different types, with different charge level.
- Do not leave discharged batteries in the device.
UTILIZATION
Expired tools, accessories and package should be passed for waste recycle. Please send the product to
the following address for proper recycle:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
Do not throw the product in municipal waste!
and
to select "DELETE" and
According to European directive 2002/96/ЕC expired measuring tools and their components must be
collected separately and submitted to environmentally friendly recycle of wastes.
WARRANTY
All CONDTROL GmbH products go through post-production control and are governed by the following
warranty terms. The buyer's right to claim about defects and general provisions of the current
legislation do not expire.
1) CONDTROL GmbH agrees to eliminate all defects in the product, discovered while warranty period,
that represent the defect in material or workmanship in full volume and at its own expense.
and
to select "RECOVERY"
2) The warranty period is 24 months and starts from the date of purchase by the end customer (see
the original supporting document).
3) The warranty doesn't cover defects resulting from wear and tear or improper use, malfunction of
the product caused by failure to observe the instructions of this user manual, untimely maintenance
and service and insufficient care, the use of non-original accessories and spare parts. Modifications in
design of the product relieve the seller from responsibility for warranty works. The warranty does not
cover cosmetic damage, that doesn't hinder normal operation of the product.
4) CONDTROL GmbH reserves the right to decide on replacement or repair of the device.
5) Other claims not mentioned above, are not covered by the warranty.
6) After holding warranty works by CONDTROL GmbH warranty period is not renewed or extended.
7) CONDTROL GmbH is not liable for loss of profit or inconvenience associated with a defect of the
device, rental cost of alternative equipment for the period of repair.
This warranty applies to German law except provision of the United Nations Convention on contracts
for the international sale of goods (CISG).
In warranty case please return the product to retail seller or send it with description of defect to the
following address:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
