QUICKSTART GUIDE (ENGLISH)
BOX CONTENTS
Please make sure the following items can be located in the box:
READ THE SAFETY AND WARRANTY INFORMATION BOOKLET BEFORE USING THIS
PRODUCT!

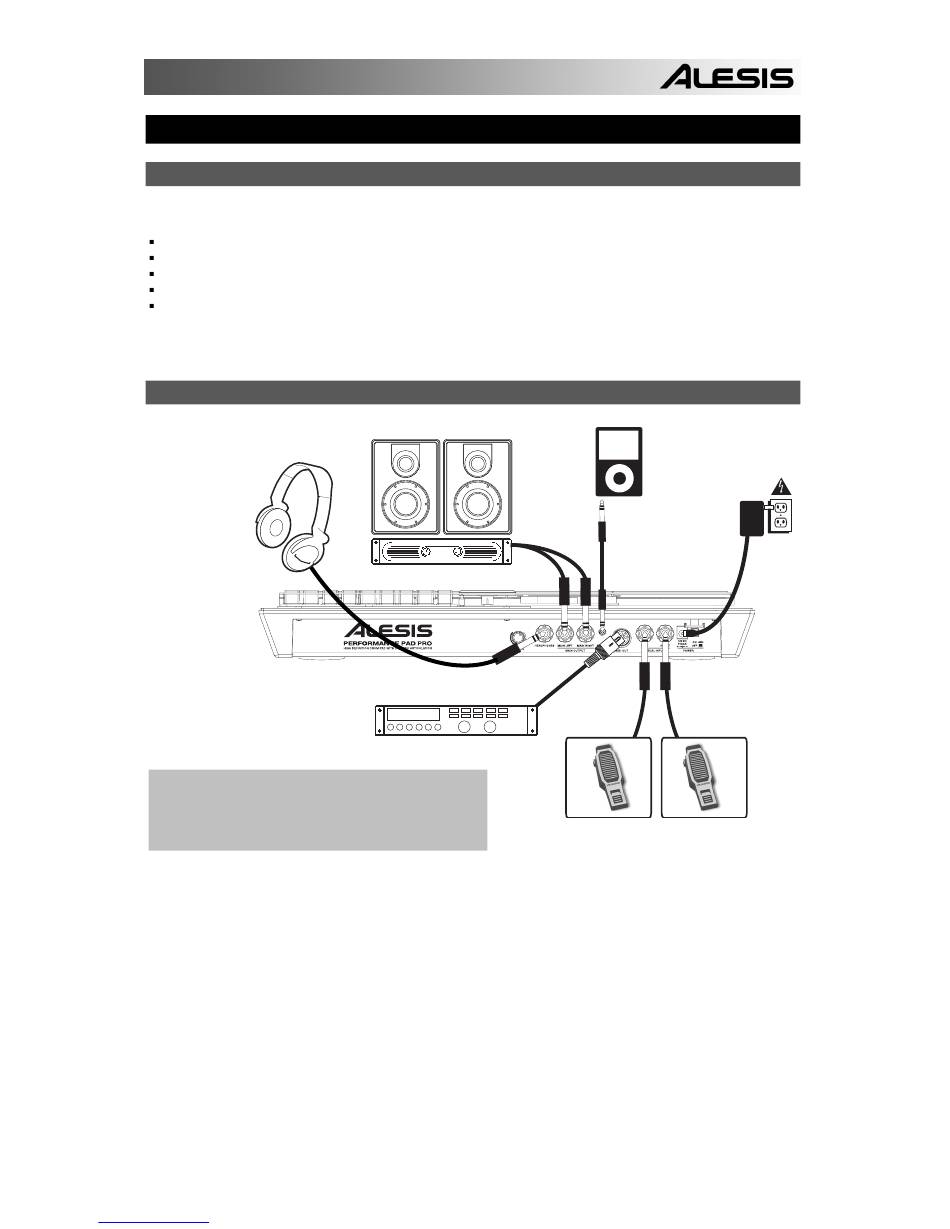

CONNECTION DIAGRAM

As you hook up the PerformancePad Pro, the
volume control on your power amp and the
PerformancePad Pro should be all the way down,
and power to both units should be off.
1.
2.
3.
4.
5.
6.
7.
Downloaded from www.Manualslib.com
PerformancePad Pro
Power Adapter (12V DC 500mA)
Quickstart Manual
Reference Manual
Safety and Warranty Information
2
Plug ¼" TS cables from the MAIN OUTPUTS to an amplifier, mixer, or speakesystem. For mono
sound, you can connect only one output.
Alternatively, you can connect a pair of ¼" TRS headphones to the PHONES OUTPUT.
If you have 1/4" TS footswitches, connect them to the Hi-Hat and Kick jacks.
Plug the included power adapter (12V DC 500mA) into the adapter jack and the adapter into a
power source.
Press the POWER switch to turn on the unit.
Tap the pads to hear sounds. You can switch among the three different sound categories for the
pads by pressing the corresponding button (DRUMS, PERC, BASS).
Adjust the volume control on the rear panel to a suitable listening level.
