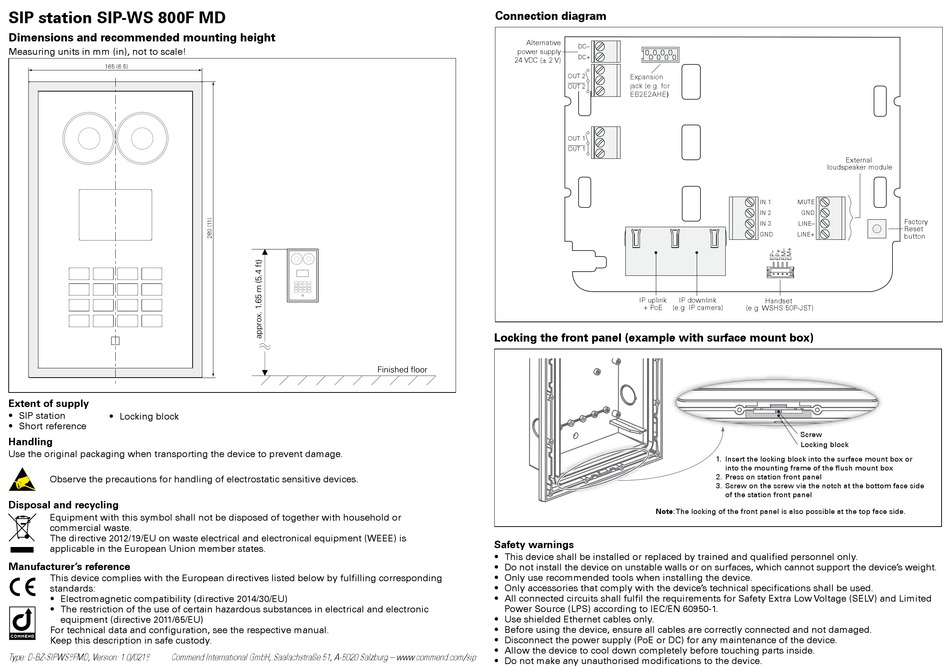

SIP station SIP-WS 800F MD
Dimensions and recommended mounting height
Measuring units in mm (in), not to scale!
Depth: 13 (0.51)
cavity wall mounting: 15 (0.59) ( shadow gap between front panel & wall)
165 (6.5)
Extent of supply
• SIP station
• Locking block
• Short reference
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or
commercial waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is
applicable in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical data and configuration, see the respective manual.
Keep this description in safe custody.
Type: D-BZ-SIPWS8FMD, Version: 1.0/0218 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com/sip
Connection diagram
Alternative
power supply
24 VDC (± 2 V)
Locking the front panel (example with surface mount box)
Finished floor
Safety warnings
• This device shall be installed or replaced by trained and qualified personnel only.
• Do not install the device on unstable walls or on surfaces, which cannot support the device's weight.
• Only use recommended tools when installing the device.
• Only accessories that comply with the device's technical specifications shall be used.
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are correctly connected and not damaged.
• Disconnect the power supply (PoE or DC) for any maintenance of the device.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
DC–
DC+
OUT 2 Expansion
jack (e.g. for
OUT 2
EB2E2AHE)
OUT 1
OUT 1
IP uplink IP downlink
+ PoE (e.g. IP camera)
(e.g. WSHS 50P-JST)
1. Insert the locking block into the surface mount box or
into the mounting frame of the flush mount box
2. Press on station front panel
3. Screw on the screw via the notch at the bottom face side
of the station front panel
Note: The locking of the front panel is also possible at the top face side.
External
loudspeaker module
IN 1 MUTE
IN 2 GND
Factory
LINE–
IN 3
Reset
GND LINE+
button
Handset
Screw
Locking block
