SIP stations SIP-WS 800P , SIP-WS 500P

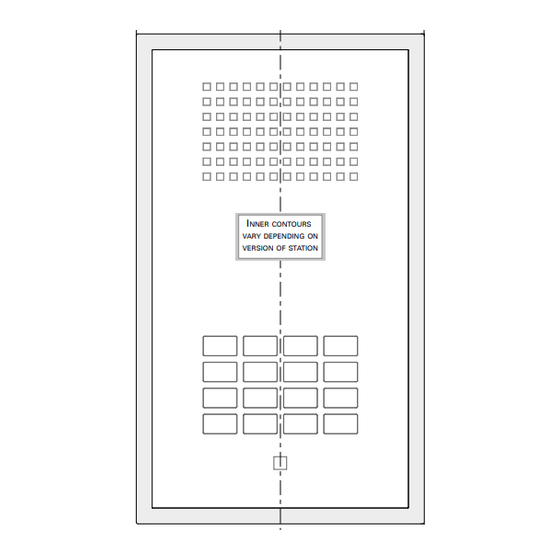

Dimensions and recommended mounting height
Measuring units in mm (in), not to scale!
Depth: 13 (0.51)
cavity wall mounting: 15 (0.59) ( shadow gap between front panel & wall)
165 (6.5)
I
NNER CONTOURS
VARY DEPENDING ON
VERSION OF STATION
Extent of supply
• SIP station
• Short reference
Safety warnings
• This device shall be installed or replaced by trained and qualified personnel only.
• Do not install the device on unstable walls or on surfaces, which cannot support the device's weight.
• Only use recommended tools when installing the device.
• Only accessories that comply with the device's technical specifications shall be used.
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are correctly connected and not damaged.
• Disconnect the power supply (PoE or DC) for any maintenance of the device.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
Connection diagram
Alternative
power supply
24 VDC (± 2 V)
Finished floor
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or
commercial waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is
applicable in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical data and configuration, see the respective manual.
Keep this description in safe custody.
Type: D-BZ-SIPWS8500P, Version: 1.0/1117 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com/sip
DC–
DC+
OUT 2 Expansion
jack (e.g. for
OUT 2
EB2E2AHE)
OUT 1
OUT 1
IP uplink IP downlink
+ PoE (e.g. IP camera)
(e.g. WSHS 50P-JST)
External
loudspeaker module
IN 1 MUTE
IN 2 GND
Factory
LINE–
IN 3
Reset
GND LINE+
button
Handset
