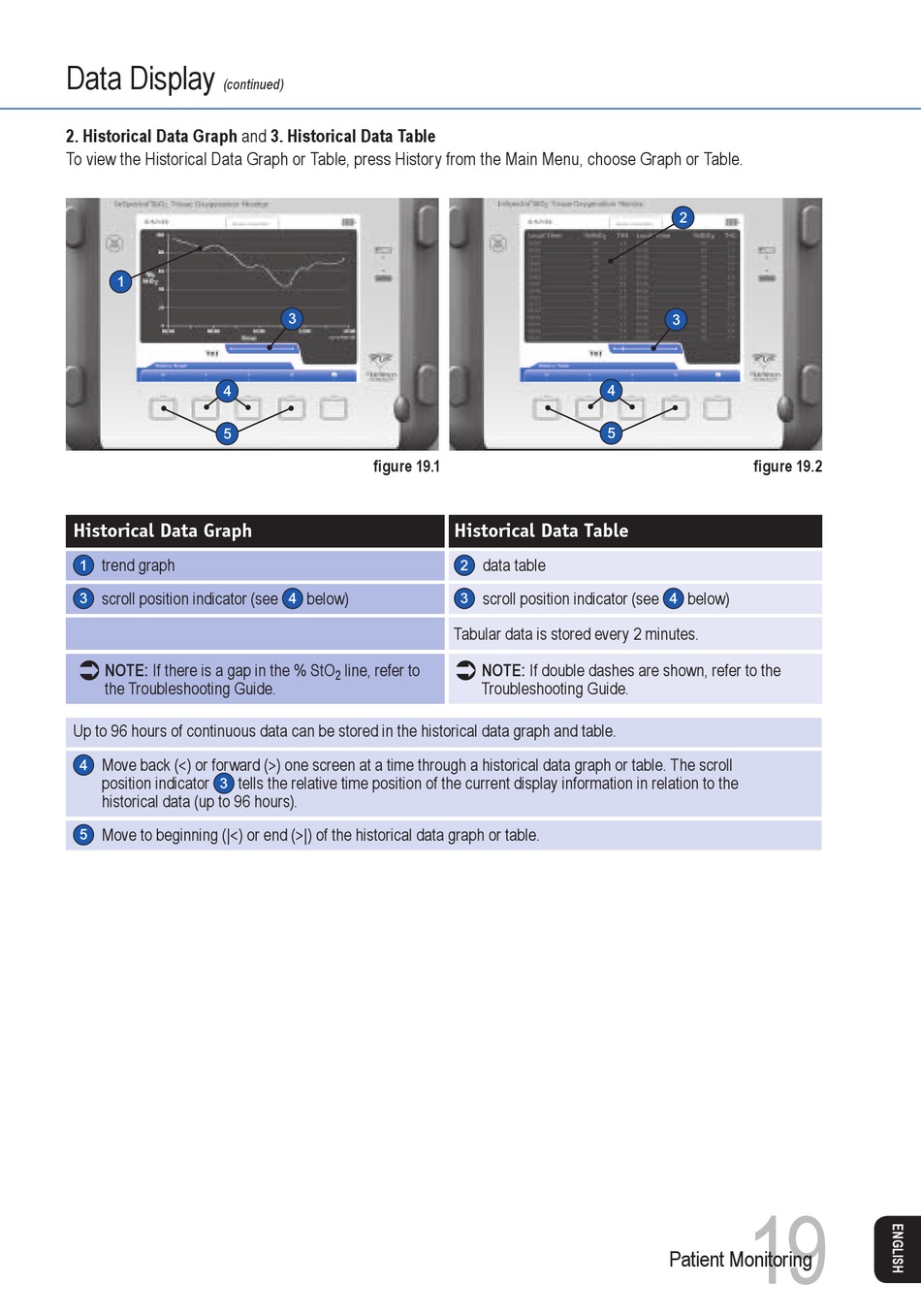

Data Display
(continued)
2. Historical Data Graph and 3. Historical Data table
To view the Historical Data Graph or Table, press History from the Main Menu, choose Graph or Table.
1
4
5
Historical Data Graph
trend graph
1
scroll position indicator (see
3

NotE: If there is a gap in the % StO
the Troubleshooting Guide.
Up to 96 hours of continuous data can be stored in the historical data graph and table.
Move back ( < ) or forward ( > ) one screen at a time through a historical data graph or table. The scroll
4
position indicator tells the relative time position of the current display information in relation to the
3
historical data (up to 96 hours).
Move to beginning (| < ) or end ( > |) of the historical data graph or table.
5
3
figure 19.1
Historical Data Table
2
below)
4 3
Tabular data is stored every 2 minutes.

line, refer to
2
4
5
data table
scroll position indicator (see
NotE: If double dashes are shown, refer to the
Troubleshooting Guide.
2
3
figure 19.2
below)
4
19
Patient Monitoring
