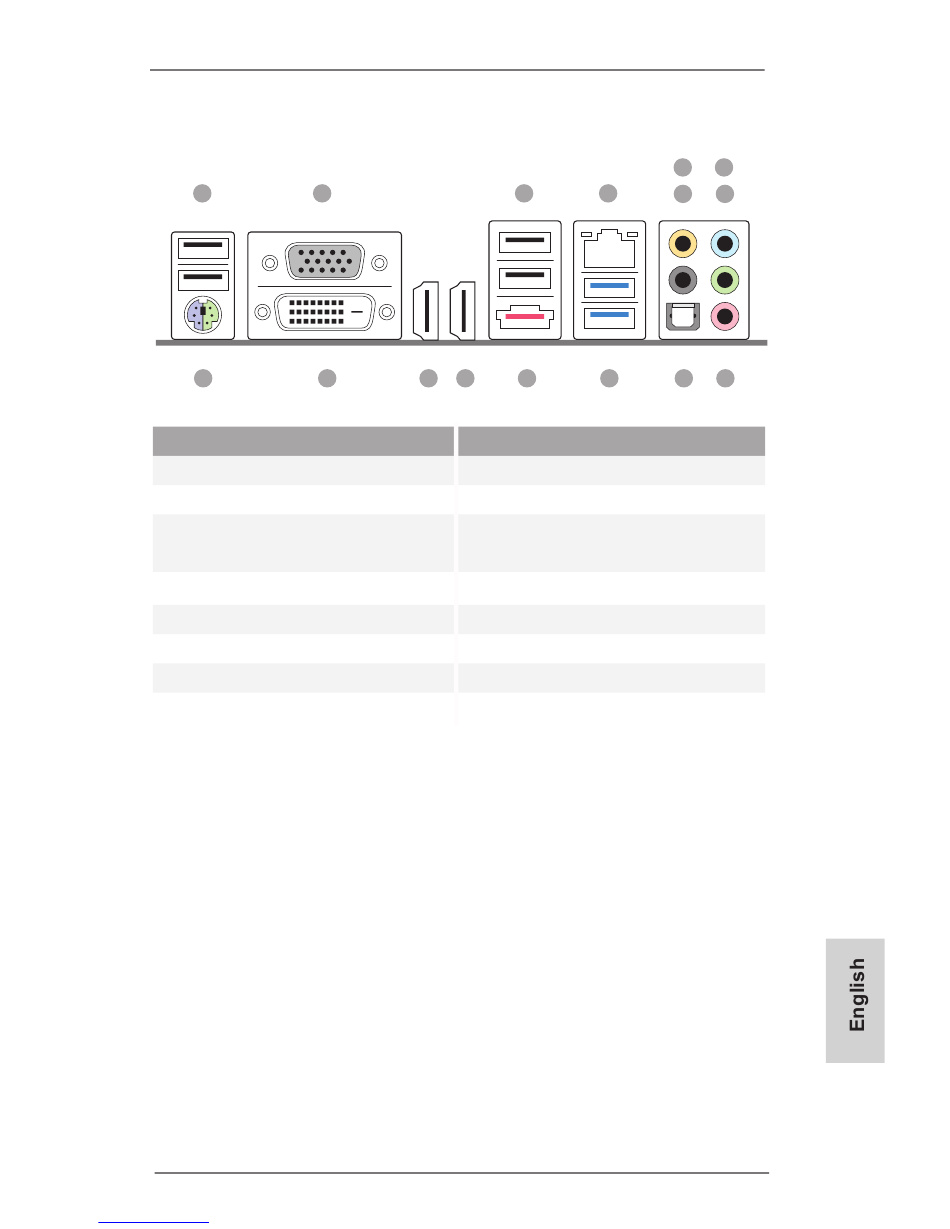

I/O Panel
No. Description
1
2
3
4
5
6
7
8
Downloaded from
www.Manualslib.com
1
2
16
15
USB 2.0 Ports (USB01)*
D-Sub Port
USB 2.0 Ports (USB23)*
LAN RJ-45 Port**
Central / Bass (Orange)
Rear Speaker (Black)
Line In (Light Blue)
Front Speaker (Lime)***
ASRock FM2A88X-ITX+ Motherboard
manuals search engine
3
14
13
12
No. Description
9
Microphone (Pink)
10
Optical SPDIF Out Port
USB 3.0 Ports (USB3_23)
11
(AMD A88X (Bolton-D4))
12
eSATA Connector
13
HDMI-In Port
14
HDMI-Out Port
15
DVI-D Port
16
PS/2 Mouse/Keyboard Port
5
7
4
6
8
11
10
9
5
