Pinbelegung

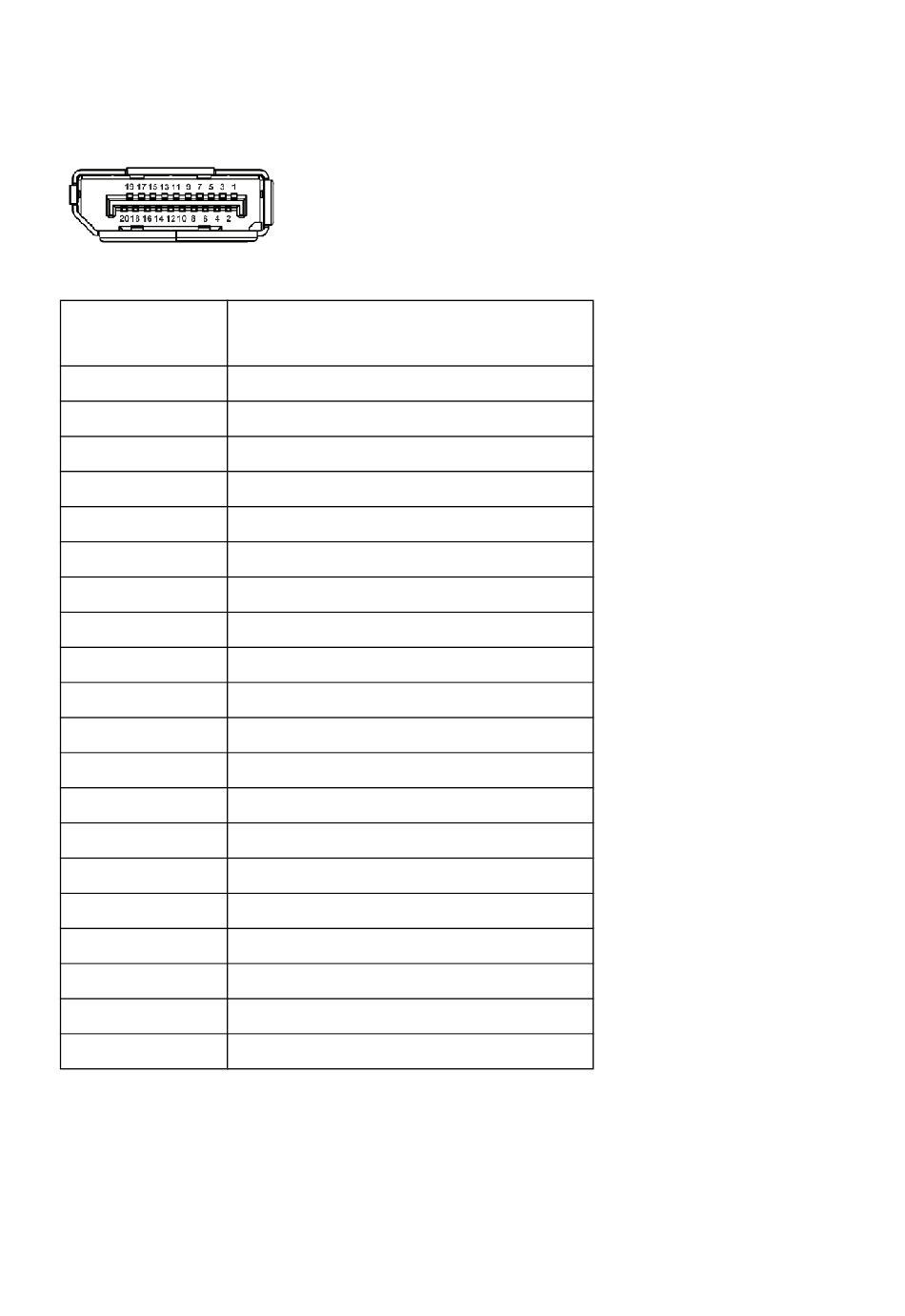

DisplayPort-Anschluss
Pin Nummer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Seite mit 20 Stiften des
angeschlossenen Signalkabels
ML3 (n)
GND
ML3 (p)
ML2 (n)
GND
ML2 (p)
ML1 (n)
GND
ML1 (p)
ML0 (n)
GND
ML0 (p)
GND
GND
AUX (p)
GND
AUX (n)
Hot-Plug-Erkennung
Re-PWR
+3,3 V DP_PWR
