Before connection, drain off a
sufficient amount of water to clean
the pipe from metal residues.
Connect the "Water" pipeline to
water mains and install a shut-off
valve and a filter on the pipe.
Ensure that the shut-off valve is
positioned so that it can be easily
operted by the operator at any
time.
Caution: if the water supply
pipe gets damaged, it should be
replaced with a new one while the
old damaged one should not be
used again.

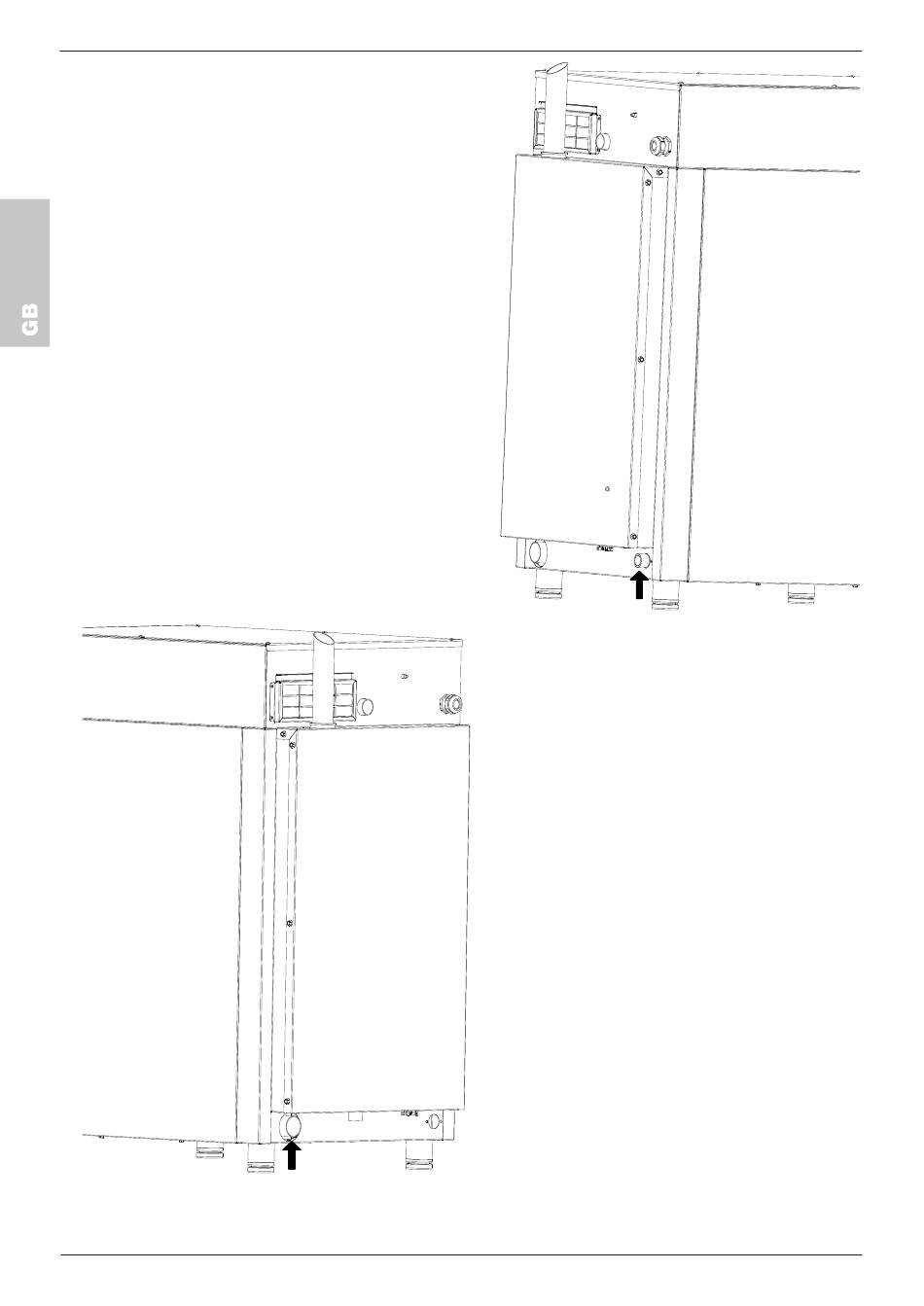

fig. 5
8
Ø40mm
A
G 3/4"
1.4. Drain connection
The oven is equipped with a
water drain; this device is placed
at the bottom of the rear part of
the appliance and has a tube
with diameter of 40 mm.
Connect the pipe of the drain-
ing device (fig. 5, ref. A). The
draining system consists of a
trap; it is advisable to connect
the pipe to an open funnel.
Make sure the internal trap is
full of water, otherwise fill it up
with water through the drin pre-
sent in the cooking chamber.
COMBIFIT installation, use and maintenance manual
