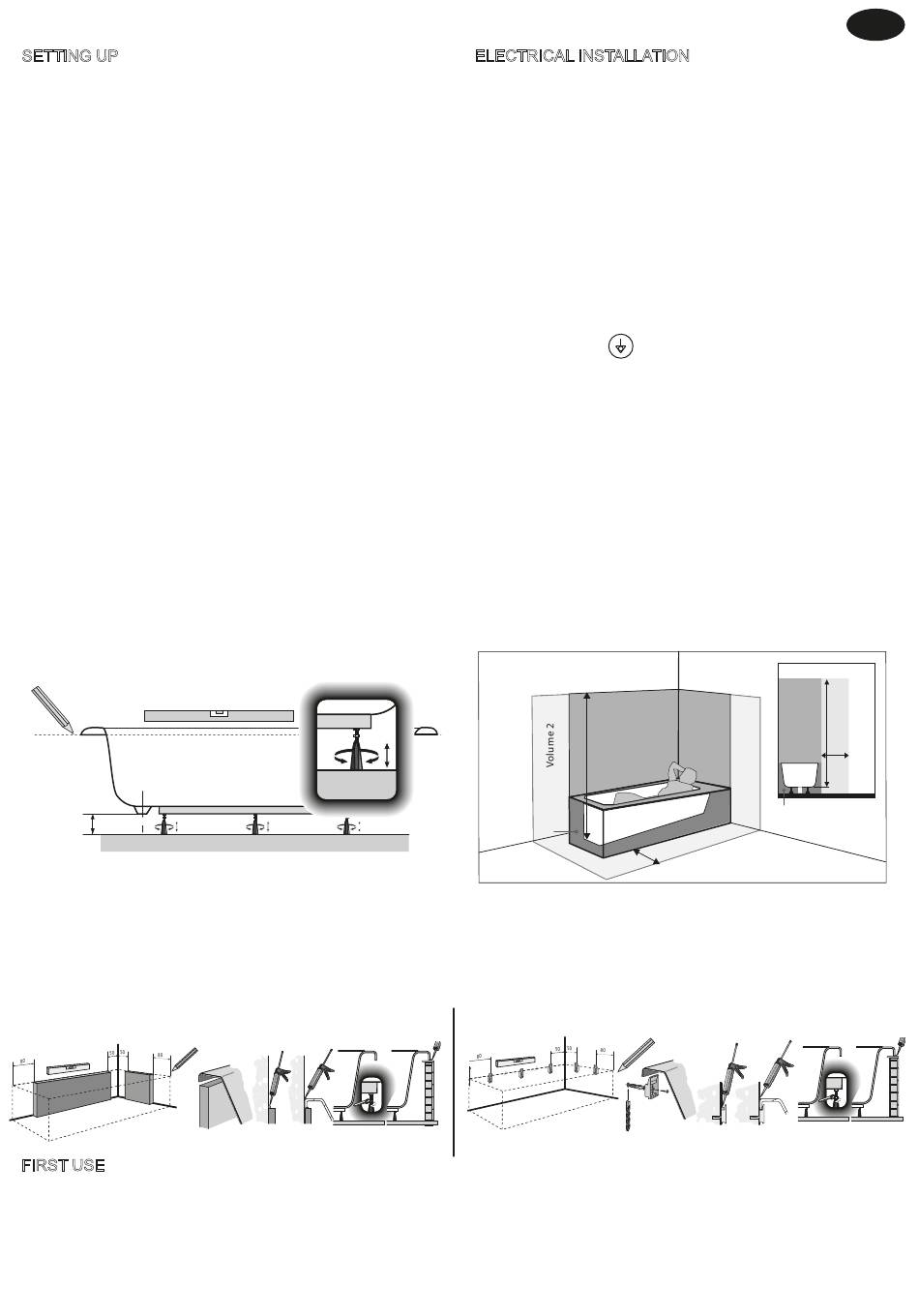

SETTING UP
Your bathtub has been factory tested and is ready to be
fitted and connected following the instructions below:
- To handle the bathtub, lift it by the edges only, never by the
pipework or any other item that is part of the system.
- Place the bathtub in its final position, adjusting the foot
height to ensure the top rim of the bathtub is perfectly
horizontal.
The feet supplied with the bathtub must not be removed,
modified, or locked.
Depending on the bathtub model, there are some assembly
instructions to be followed (see "BOXING THE BATHTUB
IN" section).
- Connect the drain outlet to the drain pipe. The drain outlet
must be connected to the waste pipe by a flexible hose and
the pipe fastened with sound absorbent collars.
- Install and connect the taps if access looks like being
difficult once the bathtub is completely installed. The taps on
the bath rim must be connected to the incoming supply by
flexible hoses and the collars fastened with sound
absorbent collars.
- In all cases check that the pipes, motors, and enclosures
are undamaged.
130 mini
Breeze block or other material fixed to the ground

FIRST USE

Before installing the covering, carry out a water test to make sure the balnéo is working properly.
The system comes with a water level detector that stops the hydromassage system working if the bathtub is empty:
- Check the bathtub is clean and fill it to above the nozzles.
- Start the motor up and let it run for roughly 20 minutes.
- Without emptying the bathtub, check there are no leaks.
- Now check the other functions of your bathtub.
INSTALLATION

ELECTRICAL INSTALLATION

The electrical power supply under the bathtub must not
contain any metal parts (armouring or sleeves, even
inaccessible). It must be made with insulated wires in an
insulating conduit or with multi-wire cables in an insulating
sleeve type A05 VV-F,
FR-N05 VV-U and R, U1000 R2V, etc. (The wire diameter is
determined according to system power).
The balnéo power supply cable is to be permanently
connected to the fixed power supply. The electrical
connection must be inside an IPX5 type junction box (not
supplied). This box must be accessible (e.g., behind an
inspection hatch) and connected in accordance with
standard NF C15-100 /A5.
The earth terminal
connected to the bathroom's earth circuit.
Apart from these measures, in order to avoid having the
bathtub permanently under power, provide for a two-pole
on/off switch which must be installed outside of volumes 0, 1,
and 2. This also makes the system start-up childproof and
enables it to be isolated (when leaving on holiday, for
example) from the rest of the mains circuit.
Warning: To avoid danger, if the power supply cable is
damaged it must be replaced by the manufacturer, by the
After-Sales dept., or by a similarly qualified person.
The electrical appliance supplied with a tension higher than
12V should not be accessible by a person in the bath-tub.
To prohibit all electrical materials with the top of the bath-tub.
Hidden volume
Fig.1
on the balnéo bathtub must be
Volume outside
Prohibited
Volume 1
2,25 m
Volume 0
0,60 m
Safety spacing
Optional extra: Kit ref. K000483
Ø 8
GB
Volume outside
Volume 2
Volume 1
2,25 m
0,60 m
Volume 0
Hidden volume
