Note: The output feed totals ("mL FED," "BOLUSES FED," "mL FLUSH") can be cleared at any time, and without clearing the input
settings, by doing the following:
• Start the pump RUNNING
HOLD
• Press
4
• Press CLEAR VOLUME
4

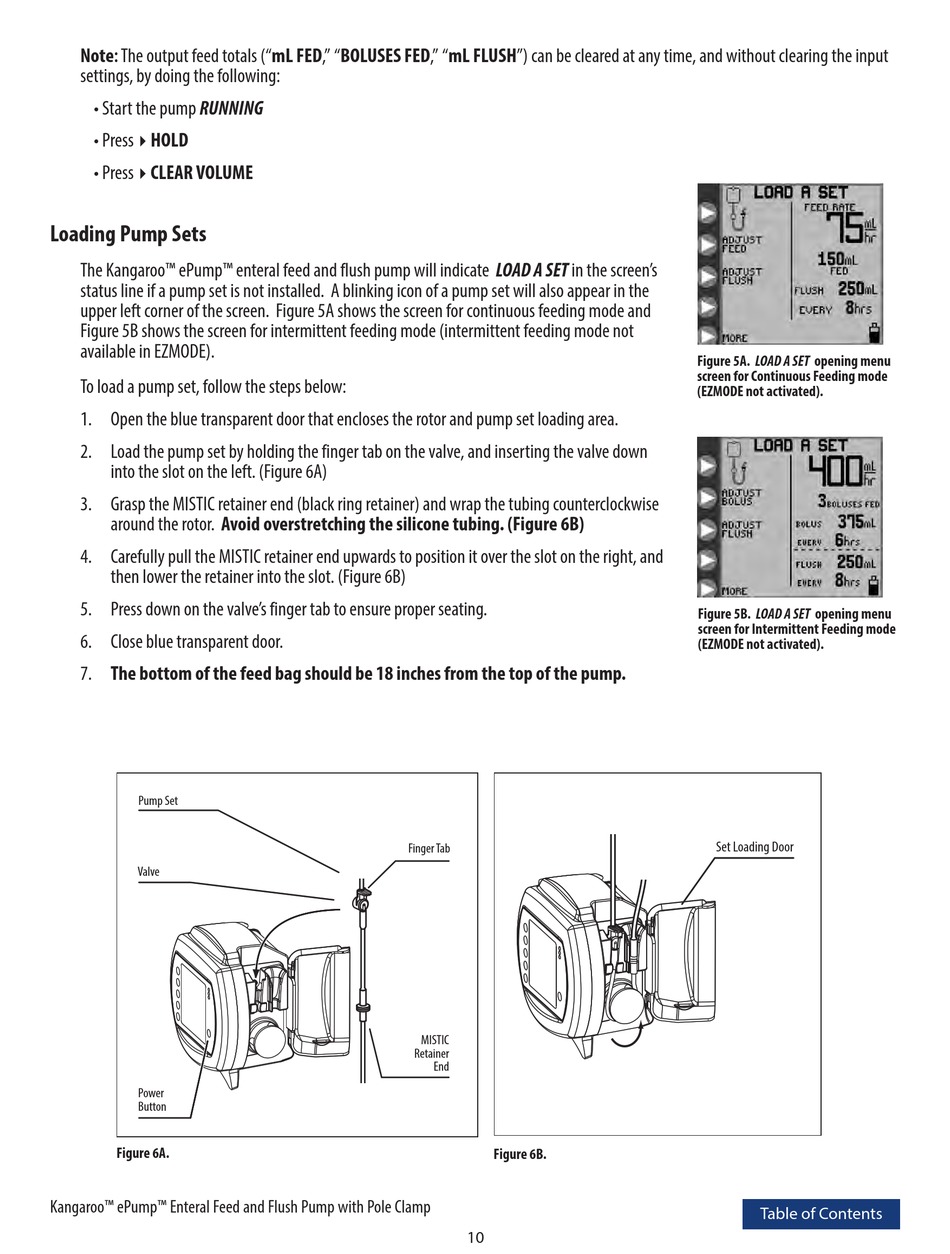

Loading Pump Sets

The Kangaroo™ ePump™ enteral feed and flush pump will indicate LOAD A SET in the screen's
status line if a pump set is not installed. A blinking icon of a pump set will also appear in the
upper left corner of the screen. Figure 5A shows the screen for continuous feeding mode and
Figure 5B shows the screen for intermittent feeding mode (intermittent feeding mode not
available in EZMODE).
To load a pump set, follow the steps below:
1. Open the blue transparent door that encloses the rotor and pump set loading area.
2. Load the pump set by holding the finger tab on the valve, and inserting the valve down
into the slot on the left. (Figure 6A)
3. Grasp the MISTIC retainer end (black ring retainer) and wrap the tubing counterclockwise
around the rotor. Avoid overstretching the silicone tubing. (Figure 6B)
4. Carefully pull the MISTIC retainer end upwards to position it over the slot on the right, and
then lower the retainer into the slot. (Figure 6B)
5. Press down on the valve's finger tab to ensure proper seating.
6. Close blue transparent door.
7. The bottom of the feed bag should be 18 inches from the top of the pump.
Pump Set
Valve
Power
Button
Figure 6A.
Kangaroo™ ePump™ Enteral Feed and Flush Pump with Pole Clamp
Finger Tab
MISTIC
Retainer
End
Figure 6B.
10
Figure 5A. LOAD A SET opening menu
screen for Continuous Feeding mode
(EZMODE not activated).
Figure 5B. LOAD A SET opening menu
screen for Intermittent Feeding mode
(EZMODE not activated).
Set Loading Door
