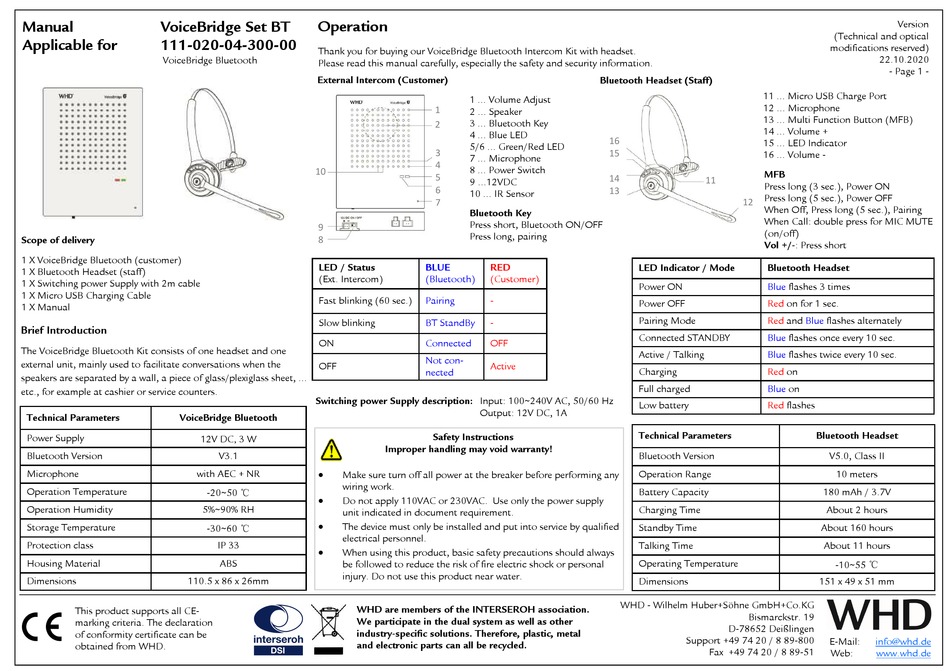

Manual
VoiceBridge Set BT
Applicable for
111-020-04-300-00
VoiceBridge Bluetooth
Scope of delivery
1 X VoiceBridge Bluetooth (customer)
1 X Bluetooth Headset (staff)
1 X Switching power Supply with 2m cable
1 X Micro USB Charging Cable
1 X Manual
Brief Introduction
The VoiceBridge Bluetooth Kit consists of one headset and one
external unit, mainly used to facilitate conversations when the
speakers are separated by a wall, a piece of glass/plexiglass sheet, ...
etc., for example at cashier or service counters.
Technical Parameters
VoiceBridge Bluetooth
Power Supply
12V DC 3 W
Bluetooth Version
Microphone
with AEC + NR
Operation Temperature
Operation Humidity
Storage Temperature
Protection class
Housing Material
Dimensions
110.5 x 86 x 26mm
This product supports all CE-
marking criteria. The declaration
of conformity certificate can be
obtained from WHD.
Operation
Thank you for buying our VoiceBridge Bluetooth Intercom Kit with headset.
Please read this manual carefully, especially the safety and security information.
External Intercom (Customer)
10
9
8
LED / Status
(Ext. Intercom)
Fast blinking (60 sec.)
Slow blinking
ON
OFF
Switching power Supply description: Input: 100~240V AC, 50/60 Hz
V3.1
Make sure turn off all power at the breaker before performing any
wiring work.
-20~50
Do not apply 110VAC or 230VAC. Use only the power supply
5%~90% RH
unit indicated in document requirement.
The device must only be installed and put into service by qualified
-30~60
electrical personnel.
IP 33
When using this product, basic safety precautions should always
ABS
be followed to reduce the risk of fire electric shock or personal
injury. Do not use this product near water.
WHD are members of the INTERSEROH association.
We participate in the dual system as well as other
industry-specific solutions. Therefore, plastic, metal
and electronic parts can all be recycled.
1 ... Volume Adjust
1
2 ... Speaker
3 ... Bluetooth Key
2
4 ... Blue LED
5/6 ... Green/Red LED
3
7 ... Microphone
4
8 ... Power Switch
5
9 ...12VDC
6
10 ... IR Sensor
7
Bluetooth Key
Press short, Bluetooth ON/OFF
Press long, pairing
BLUE
RED
(Bluetooth)
(Customer)
Pairing
-
BT StandBy
-
Connected
OFF
Not con-
Active
nected
Output: 12V DC, 1A
Safety Instructions
Improper handling may void warranty!
Bluetooth Headset (Staff)
11 ... Micro USB Charge Port
12 ... Microphone
13 ... Multi Function Button (MFB)
14 ... Volume +
16
15 ... LED Indicator
15
16 ... Volume -
MFB
14
11
Press long (3 sec.), Power ON
13
Press long (5 sec.), Power OFF
12
When Off, Press long (5 sec.), Pairing
When Call: double press for MIC MUTE
(on/off)
Vol +/-: Press short
LED Indicator / Mode
Bluetooth Headset
Power ON
Blue
Power OFF
Red
Pairing Mode
Red
Connected STANDBY
Blue
Active / Talking
Blue
Charging
Red
Full charged
Blue
Low battery
Red
Technical Parameters
Bluetooth Version
Operation Range
Battery Capacity
Charging Time
Standby Time
Talking Time
Operating Temperature
Dimensions
WHD - Wilhelm Huber+Söhne GmbH+Co.KG
Bismarckstr. 19
D-78652 Deißlingen
Support +49 74 20 / 8 89-800
Fax +49 74 20 / 8 89-51
Version
(Technical and optical
modifications reserved)
22.10.2020
- Page 1 -
flashes 3 times
on for 1 sec.
and
Blue
flashes alternately
flashes once every 10 sec.
flashes twice every 10 sec.
on
on
flashes
Bluetooth Headset
V5.0, Class II
10 meters
180 mAh / 3.7V
About 2 hours
About 160 hours
About 11 hours
-10~55
151 x 49 x 51 mm
E-Mail:
info@whd.de
Web:
www.whd.de
