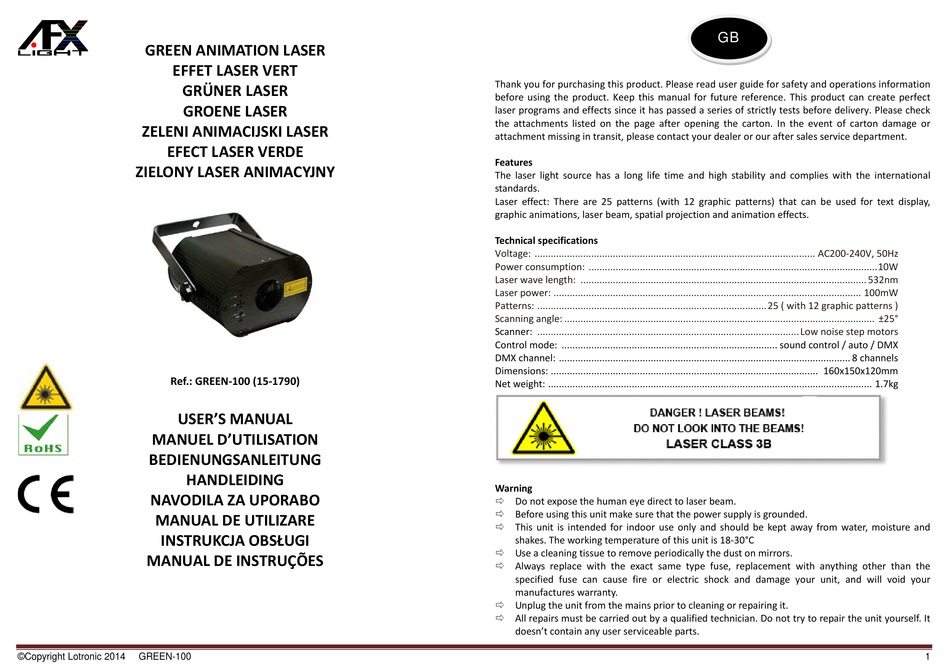

GREEN ANIMATION LASER
EFFET LASER VERT
GRÜNER LASER
GROENE LASER
ZELENI ANIMACIJSKI LASER
EFECT LASER VERDE
ZIELONY LASER ANIMACYJNY
Ref.: GREEN-100 (15-1790)
USER'S MANUAL
MANUEL D'UTILISATION
BEDIENUNGSANLEITUNG
HANDLEIDING
NAVODILA ZA UPORABO
MANUAL DE UTILIZARE
INSTRUKCJA OBSŁUGI
MANUAL DE INSTRUÇÕES
©Copyright Lotronic 2014 GREEN-100
Thank you for purchasing this product. Please read user guide for safety and operations information
before using the product. Keep this manual for future reference. This product can create perfect
laser programs and effects since it has passed a series of strictly tests before delivery. Please check
the attachments listed on the page after opening the carton. In the event of carton damage or
attachment missing in transit, please contact your dealer or our after sales service department.
Features
The laser light source has a long life time and high stability and complies with the international
standards.
Laser effect: There are 25 patterns (with 12 graphic patterns) that can be used for text display,
graphic animations, laser beam, spatial projection and animation effects.
Technical specifications
Voltage: ........................................................................................................ AC200-240V, 50Hz
Power consumption: ........................................................................................................... 10W
Laser wave length: .......................................................................................................... 532nm
Laser power: .................................................................................................................. 100mW
Patterns: ..................................................................................... 25 ( with 12 graphic patterns )
Scanning angle: ................................................................................................................... ±25°
Scanner: ................................................................................................. Low noise step motors
Control mode: ................................................................................ sound control / auto / DMX
DMX channel: ............................................................................................................ 8 channels
Dimensions: ................................................................................................... 160x150x120mm
Net weight: ........................................................................................................................ 1.7kg
Warning
 Do not expose the human eye direct to laser beam.
 Before using this unit make sure that the power supply is grounded.
 This unit is intended for indoor use only and should be kept away from water, moisture and
shakes. The working temperature of this unit is 18-30°C
 Use a cleaning tissue to remove periodically the dust on mirrors.
 Always replace with the exact same type fuse, replacement with anything other than the
specified fuse can cause fire or electric shock and damage your unit, and will void your
manufactures warranty.
 Unplug the unit from the mains prior to cleaning or repairing it.
 All repairs must be carried out by a qualified technician. Do not try to repair the unit yourself. It
doesn't contain any user serviceable parts.
