Team Orion VST2 Pro Bedienungsanleitung Und Warnungen

INSTRUCTION MANUAL AND WARNINGS • READ BEFORE USE!

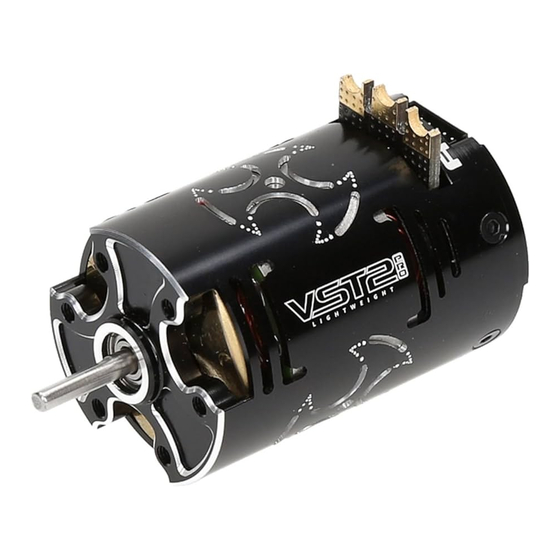

Thank you for choosing this Team Orion VST2 Pro XLW motor. This motor has
been developed using the input of our on-road and off-road world champi-
onship winning team. It features the latest developments in brushless mo-
tor technology.
WARNING
This manual contains instructions for safety, operation and maintenance. It
is essential to read and follow all of the instructions. Failure to operate the
product correctly can result in damage to the product, personal property and
cause serious injury. This is a sophisticated hobby product. It must be oper-
ated with caution and common sense and requires some basic mechanical
ability. This product is not intended for use by children without direct adult
supervision. This is not a toy, not for children under 14 years.
CAUTIONS
• Always verify the required mounting screws type and length before in-
stalling. Using the wrong type of screw can cause damage to the threads
or the motor.
• Check the recommended gear ratios and input voltage for your motor, fail-
ure to do so may cause damage to the motor.
• Allowing motor operating temperature to exceed 80°C (176°F) may cause
permanent damage.
• The motor can become very hot during use, be careful before touching it.
• The motor is not designed to be run in wet conditions. Exposure to water
can damage the motor.
INSTALLATION
When installing a new motor, it is recommended you reset or lower your
ESC's performance settings.
• Attach the motor to chassis using screws with the proper thread and
length type.
• Solder the ESC wires to the motor, respecting the ABC wire order.
• Connect the sensor wire to the sensor port of the motor.
GEARING
Use the correct gearing to avoid damage to the motor and risking voiding the
warranty. Use the gear ratio chart below as a reference.
MAINTENANCE
You can clean out the motor and oil the ball bearings from time to time. Spare
parts are also available.
To disassemble the motor, 1. remove the five screws at the back of the mo-
tor, 2. pull out the back cover by pushing on the motor shaft from the front, 3.
remove the rotor.
Be careful not to lose the rotor spacers and re-install them in the same order.
TROUBLESHOOTING
• If the motor is cogging, remove the sensor wire and test the motor in sen-
sorless mode. If it works in sensorless mode, the ESC, sensor wire or sen-
sor module might be defective.
Usage Voltage
TC (small track) 2S / 7.4V
TC (big track) 2S / 7.4V
1:12 1S / 3.7V
2wd off-road 2S / 7.4V
2wd Short Course 2S / 7.4V
4wd off-road 2S / 7.4V
Copyright 2015 © Team Orion
21.5T 17.5T 13.5T
3.5:1 4.0:1 6.0:1
• If the motor is not spinning, check the ABC wire order, in sensor mode the
order must be respected.
• If the motor is overheating, check the gearing and ESC settings.
LIMITED WARRANTY
Team Orion warrants to the original purchaser that the product purchased
is free from defects in materials and workmanship at the date of purchase.
Team Orion reserves the right to change or modify this warranty without no-
tice and disclaims all other warranties, express or implied. This warranty is
limited to the original purchaser and is not transferable. Replacement as pro-
vided under this warranty is the exclusive remedy of the purchaser. This war-
ranty covers only the products purchased from an authorized dealer. Third
party transactions are not covered by this warranty. Proof of purchase is re-
quired for warranty claims. Team Orion makes no warranty or representation,
express or implied, about non infringement, merchantability or fitness for a
particular purpose of the product.
The purchaser acknowledges that they alone have determined that the prod-
uct will suitably meet the requirements of the purchaser's intended use. Team
Orion's sole obligation hereunder shall be that it will, at its option, repair or
replace any product determined by Team Orion to be defective in the event
of a defect, this is the purchaser's exclusive remedy. Replacement decisions
are at Team Orion's sole discretion. This warranty does not cover cosmetic
damage or damage due to acts of God, accident, misuse, abuse, negligence,
commercial use, or modification of or to any part of the product. This war-
ranty does not cover damage due to improper installation, operation, main-
tenance or attempted repair by anyone. Team Orion will not be liable for spe-
cial, indirect or consequential damages, loss of profits or production or com-
mercial loss in any way connected with the product, whether claim is based
in contract, warranty, negligence, or strict liability. Further, in no event shall
the liability of Team Orion exceed the individual price of the product on which
liability is asserted. As Team Orion has no control over use, setup, final as-
sembly, modification or misuse, no liability shall be assumed nor accepted for
any resulting damage or injury. By the act of use, setup or assembly the us-
er accepts all resulting liability. If you as the purchaser or user are not pre-
pared to accept the liability associated with the use of this product, you are
advised to return this product immediately in new and unused condition to
the place of purchase.
INSTRUCTIONS FOR DISPOSAL OF WEEE
BY USERS IN THE EUROPEAN UNION
This product must not be disposed of with other waste. Instead, it is the us-
er's responsibility to dispose of their waste equipment by handing it over to
a designated collections point for the recycling of waste electrical and elec-
tronic equipment. The separate collection and recycling of your waste equip-
ment at the time of disposal will help to conserve natural resources and en-
sure that it is recycled in a manner that protects human health and the en-
vironment. For more information about where you can drop off your waste
equipment for recycling, please contact your local city office, your household
waste disposal service or where you purchased the product.
All instructions, warranties and other collateral documents are subject to
change at the sole discretion of Team Orion.
10.5T 9.5T 8.5T
6.5:1 7.0:1 7.3:1
6.5:1 7.5:1 8.5:1
8.0:1 9.0:1 10.0:1
9.0:1
www.facebook.com/teamorion
7.5T 6.5T 5.5T
7.7:1 8.0:1 8.5:1
6.3:1 7.0:1 7.5:1
38mm
9.5:1 10.5:1 -
11.0:1 - -
10.0:1 11.0:1 12.0:1
www.teamorion.com
4.5T
9.5:1
8.5:1
34mm
-
-
-
