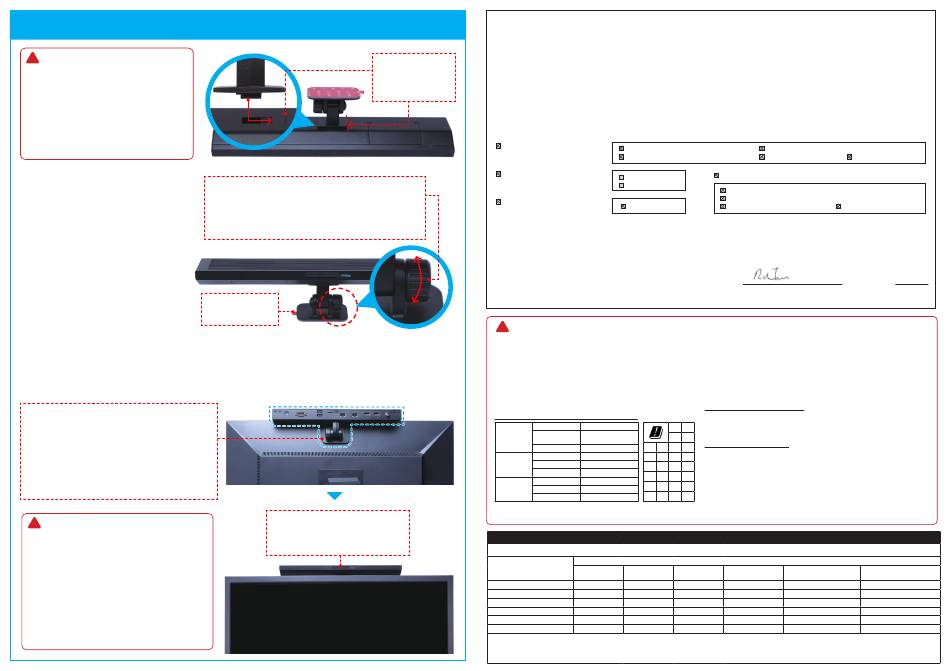

Mount the Smart Computer Stick to display
スティックPCをディスプレイに取り付けます
For safety reasons, please ensure that the power
!
cord is disconnected. Only limited for professional to
install on the top of display when using hinge on this product.
基於安全考量, 請先拔除電源線。
使用此產品支架時, 僅限定由專業人員安裝於螢幕上方。
基于安全考虑, 请先拔除电源线。
使用此产品支架时, 仅限定由专业人员安装于屏幕上方。
安全を考慮して、電源ケーブルが外れている事を確認してく
ださい。ヒンジを使用して本製品をディスプレイに設置する
際は、専門の設置業者へご依頼下さい。
Achten Sie aus Sicherheitsgründen darauf, dass das Netzkabel abg-
ezogen ist. Bei der Verwendung des Gelenkstücks ist die Installation
auf der Display-Oberseite nur vom Fachpersonal durchzuführen.
1. Attach the hinge to the Smart Computer Stick.
Slide it into the hinge holder until it clicks into place.
Make sure the hinge is securely locked in place.
將產品支架推入到智能電腦棒的支架銜接孔,
直至其卡入到位。確保支架已牢固鎖定到位。
将支架铰链推入到智能电脑棒的支架铰链衔接孔,
直至其卡入到。确保支架铰链已牢固锁定到位。
ヒンジ部分にスティックPC に取り付けます。
ヒンジホルダーへ、カチっと音がするまで挿し
入れます。ヒンジ部分がしっかり固定されてい
る事を確認します。
Befestigen Sie das Scharnier am Smart
Computer Stick. Schieben Sie es in den
Scharnierhalter, bis es einrastet.
Vergewissern Sie sich, dass das
Scharnier sicher verriegelt ist.
2. Tear off the adhesive membrane, then affix the Smart Computer Stick on top of your display, as shown.
撕下雙面膠表面的保護紙, 然後將智能電腦棒固定在螢幕上方, 如圖所示。
撕下双面胶表面的保护纸, 然后将智能电脑棒固定在屏幕上方, 如图所示。
図に参照の通り、粘着シートを外してお使いのディスプレイの上にスティックPCを貼り付けます。
Entfernen Sie die Klebefolie und befestigen Sie den Smart Computer Stick an der Display-Oberseite (siehe Bild).
Applicable adhesive material: ABS, PVC, PC / 50% relative humidity
The adhesive area on the back of the display is flat, has no holes
and no rough structure.
適用的黏貼材質: ABS, PVC, PC / 相對濕度: 50%
螢幕背面的粘貼區域為平面且無孔洞和非粗糙結構。
适用的黏贴材质: ABS, PVC, PC/ 相对湿度: 50%
屏幕背面的粘贴区域为平面且无孔洞和非粗糙结构。
接着可能材質: ABS, PVC, PC / 湿度50％
ディスプレイ背面の接着面は、穴や凹凸の無い平面である必要があります。
Verwendetes Klebematerial: ABS, PVC, PC / 50% relative Luftfeuchtigkeit
Der Klebebereich auf der Display-Rückseite ist eben, hat keine Löcher
und keine rauhe Oberfläche.
!
To avoid damaging the cable, do not pull the cable during
operation. The adhesive of the product hinge is one-time
use, if you have replace or installation problem, please go to
http://acer-being-signage.com Customer Service for purchasing.
為避免線材損壞,使用時請勿拉扯線材。產品支架之備膠為一次性黏貼,
如需更換或安裝相關問題請至 http://acer-being-signage.com 客服洽詢購買。
为避免线材损坏,使用时请勿拉扯线材。产品支架之备胶为一次性黏贴,
如需更换或安装相关问题请至 http://acer-being-signage.com 客服洽询购买。
ケーブルの損傷を防ぐ為、取付中にケーブルを引っ張らないようお願
いします。ヒンジに使用されている粘着シートは、再利用できません。
再設置や取付中に問題があった際は、http://acer-being-signage.com
よりカスタマーサービスへお問い合わせ下さい。
Ziehen Sie während der Installation nicht am Kabel, um Kabelschäden
zu vermeiden. Die Klebefläche am Gelenkteil ist nur einmal nutzbar.
Falls beim Tausch oder bei der Installation Probleme auftreben, dann
gehen Sie zum Kundenservice unter http://acer-being-signage.com.
安裝智能電腦棒於螢幕上
安装智能电脑棒于屏幕上
Befestigen Sie den Smart Computer Stick am Display
Alignment guides
對齊定位線
对齐定位线
合わせ位置用ガイドライン
Ausrichtungshilfen
Adjust the Smart Computer Stick position : Loosen the knob to swivel
the Smart Computer Stick vertically, then tighten the knob to make.
調整智能電腦棒的位置 : 鬆開旋鈕以垂直旋轉智能電腦棒, 然後擰緊旋鈕。
调整智能电脑棒的位置 : 松开旋钮以垂直旋转智能电脑棒, 然后拧紧旋钮。
スティックPCの位置調整 : スティックPCを縦方向へ回転させるのにノ
ブをゆるめます。ノブを締める事で位置を固定します。
Position des Smart Computer Stick einstellen: Lösen Sie den Knopf, um den
Smart Computer Stick vertikal zu schwenken, und ziehen Sie ihn dann fest.
Adhesive membrane
雙面膠膜 双面胶膜
粘着シート Klebefolie
Webcam : Tear off the protective membrane.
網路攝影機 : 撕下保護膜。
网络摄影机 : 撕下保护膜。
ウェブカメラ : 保護シートを取り外して下さい。
Webcam: Reißen Sie die Schutzfolie ab.
EU Declaration of Conformity
EU-Konformitätserklärung
We, Acer Being Signage (Taiwan) Inc.
9F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
And, Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: +39-02-939-921 ,Fax: +39-02 9399-2913, www.acer.it
We, Acer Being Signage (Taiwan) Inc., hereby declare under our sole responsibility that the product described above is in conformity with the
relevant Union harmonization legislation: Directive 2014/53/EU on Radio Equipment and RoHS Directive 2011/65/EU. The following harmonized
standards and/or other relevant standards have been applied:
Wir, Acer Being Signage (Taiwan) Inc., erklären hiermit in Alleinverantwortlichkeit, dass das oben beschriebene Produkt folgenden
Harmonisierungsvorgaben der Europäischen Union entspricht: Richtlinie 2014/53/EU zu Funkanlagen und RoHS-Richtlinie 2011/65/EU.
Folgende harmonisierte Normen und/oder weitere relevante Normen wurden angewendet:
Electromagnetic compatibility
EN 55032:2015+AC:2016 Class B/ Klasse B
Elektromagnetische Verträglichkeit
EN61000-3-2:2014 Class D/ Klasse D
Radio frequency spectrum usage
EN 300 328 V2.1.1
Strahlungsspektrum
EN 301 893 V2.1.1
RoHS
EN 50581:2012
RoHS
Operation frequency and radio-frequency power are listed as below:
Bluetooth: 2402 - 2480MHz; output power < 10 dBm
WLAN 2.4GHz: 2412MHz - 2462MHz; output power < 20dBm
WLAN 5GHz: 5.15 GHz - 5.725 GHz; output power < 23dBm
Software version: Android 7.1
Year to begin affixing CE marking: 2018.
Jahr der ersten CE-Kennzeichnungsanbringung: 2018.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
!
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Wireless operation channels for different domains:
2.412-2.462 GHz
Ch01 through CH11
5.150-5.350 GHz
N.America
Ch36 through CH116
5.470-5.600 GHz
AT BE BG HR
5.650-5.850 GHz
2.412-2.484 GHz
Ch01 through Ch14
EE
FI
Japan
5.150-5.350 GHz
IT
LV
5.470-5.725 GHz
Ch36 through CH140
PT RO SK
2.412-2.472 GHz
Ch01 through Ch13
MT NL PL DK
Europe ETSI
5.150-5.350 GHz
ES SE UK
5.470-5.725 GHz
Ch36 through CH140
Note: This device is restricted to indoor use only when operation
in the 5150 to 5350MHz frequency range.
限用物質含有情況標示聲明 / Declaration of the Presence Condition of the Restricted Substances Marking
設備名稱 / Equipment name：智能電腦棒 / Smart Computer Stick 型號 (型式) / Type designation (Type)：ABS-3G1
限用物質及其化學符號 / Restricted substances and its chemical symbols
單元Ｕnit
鉛 Lead
汞 Mercury
(Pb)
(Hg)
塑膠外殼 / Plastic Enclosure
O
O
電路板 / PCB
O
O
線材 / Wire
O
O
金屬外殼 / Metal Enclosure
O
−
電源供應器 / Adaptor
O
O
支架 / Hinge
O
O
備考 1 / Note 1："超出0.1 wt %" 及 "超出0.01 wt %" 係指限用物質之百分比含量超出百分比含量基準值。
"Exceeding 0.1 wt %" and "exceeding 0.01 wt %" indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
備考 2 / Note 2："O" 係指該項限用物質之百分比含量未超出百分比含量基準值。/ "O" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
備考 3 / Note 3："−" 係指該項限用物質為排除項目。/ The "−" indicates that the restricted substance corresponds to the exemption.
Product: Smart Computer Stick
Produkt: Smart Computer Stick
Trade Name: acer / BYOC
Model Number: ABS-3G1
Handelsname: acer / BYOC
Modellnummer: ABS-3G1
EN55024: 2010+A1:2015
EN 301 489-1 V2.2.0
Healthy and Safety / Gesundheit und Sicherheit
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
EN 62368-1:2014/A11:2017
EN 62311:2008
EN 62479:2010
Betriebsfrequenzen und Sendeleistungen werden nachstehend angegeben:
Bluetooth: 2402 - 2480 MHz, Ausgangsleistung < 10 dBm
WLAN, 2,4 GHz: 2412 - 2462 MHz, Ausgangsleistung < 20 dBm
WLAN, 5GHz: 5,15 - 5,725 GHz, Ausgangsleistung < 23 dBm
Softwareversion: Android 7.1
RU Jan / Sr. Manager
Acer Being Signage (Taiwan) Inc. (Taipei, Taiwan)
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Operation on the 5.15-5.25 GHz frequency band is restricted to indoor use only.
RF Radiation Exposure Statement: This Transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. This equipment
complies with FCC RF radiation exposure limits set forth for an uncontrolled
CY CZ
environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
EL HU
CE declaration of Conformity: The Smart Computer Stick is declaring as in
compliance with the essential requirements and other relevant provisions of
FR DE
Radio Equipment Directive 2014/53/EU and RoHS Directive 2011/65/EU.
LT
LU
無線資訊傳輸設備避免影響附近雷達系統之操作。
SI
經型式認證合格之低功率射頻電機, 非經許可, 公司、商號或使用者均不得擅自變更
頻率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影響飛航
安全及干擾合法通信; 經發現有干擾現象時, 應立即停用, 並改善至無干擾時方得繼
IE
續使用。前項合法通信, 指依電信法規定作業之無線電通信。低功率射頻電機須忍
受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。在5.25-5.35 GHz
頻帶內操作之無線資訊傳輸設備, 限於室內使用。減少電磁波影響, 請妥善使用。
鎘 Cadmium
六價鉻 Hexavalent
多溴聯苯 Polybrominated
(Cd)
chromium (Cr
)
biphenyls (PBB)
+6
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
EN 301 489-17 V3.2.0
2018/06/23
Date
多溴二苯醚 Polybrominated
diphenyl ethers (PBDE)
O
O
O
O
O
O
