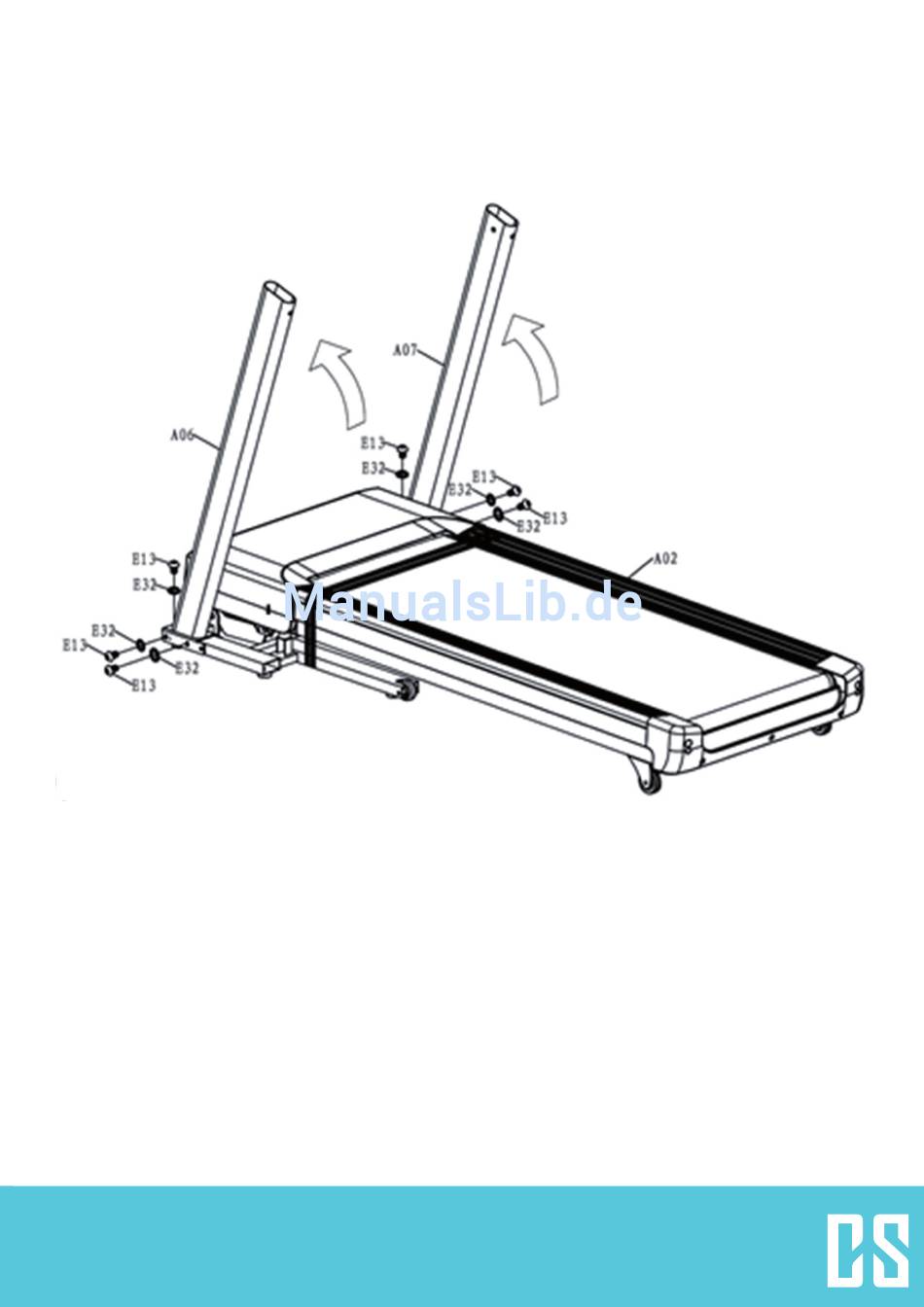

• Open the column A06 up first;
• And then fix the column A06 to the mainframe with inner hex pan head bolt E13 and serrated gasket E32.
• At last fix the column A07 to the mainframe according to the steps above.
ATTENTION: Hold the column steadily during assembling.
Step 2
