MITKO CATANIA LED Gebrauchsanweisung Seite 5

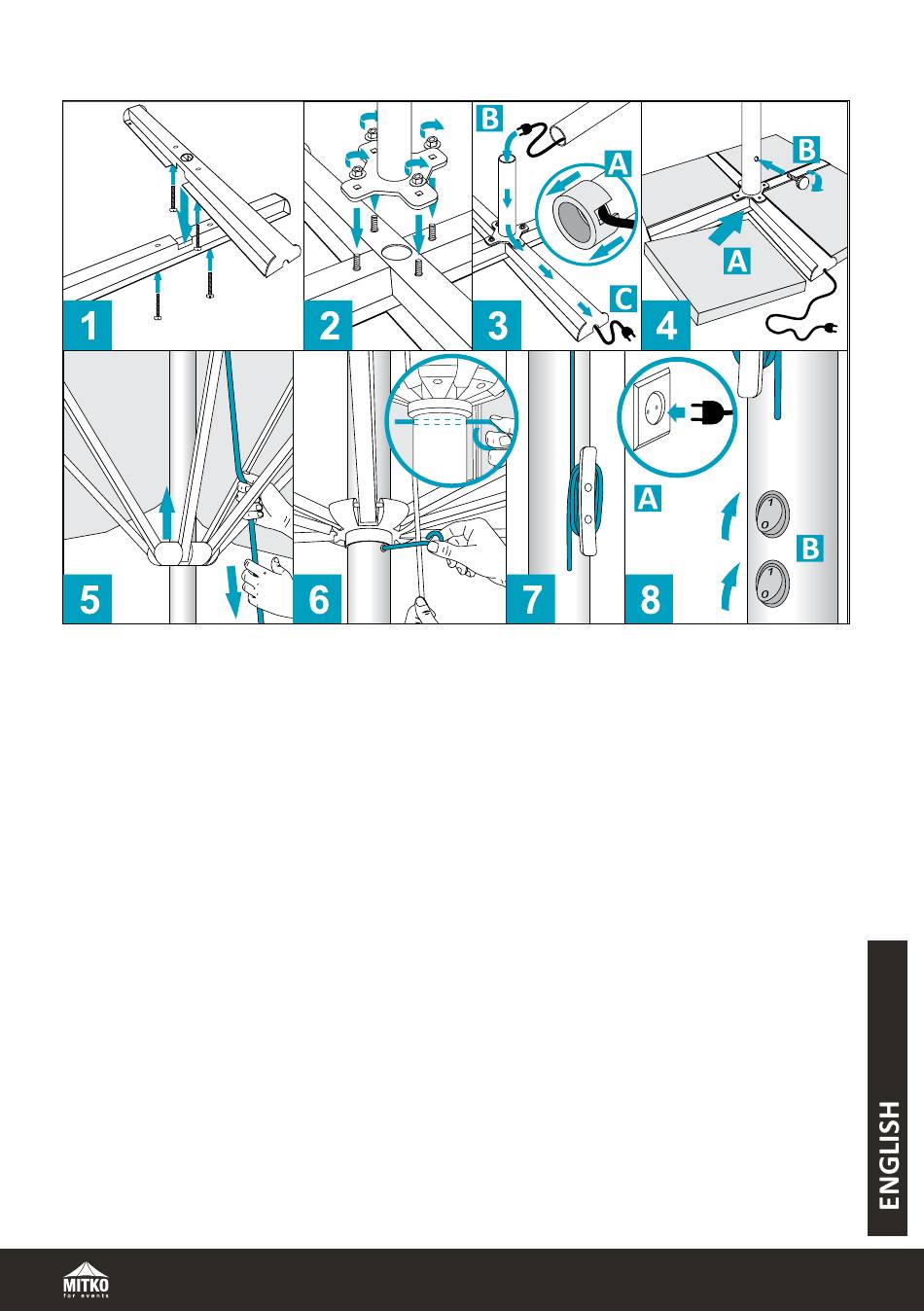

Fig. 2. Mounting process
DEMONTAGE
1. Prior to disassembling the umbrella, remove the AC 230 V power supply.
2. Unfasten the cord from the hook and pull it down to make it easier to remove
the safety bolt.
3. Slowly release the cord until the umbrella is folded down.
4. After closing the umbrella, unscrew the safety knob, remove the umbrella from
the base and store it in the cover.
5. Slowly remove the mast from the base and disconnect the power plug.
NOTE ! Put the cap on the mast end, protecting the cable from damage (as
shown in Fig. 3 -A)
6. Store the umbrella in the cover.
The Producer reserves the right to implement changes to above information.
THE PRODUCER:
MITKO Sp. z o.o.
Osiedle 1 Maja 16G | 44-304 Wodzisław Śląski | Poland | TIN: PL6470509572
Tel. +48 32 444 66 16 | Fax: +48 32 757 09 20 | kontakt@mitko.pl | www.mitko.pl
5/24
