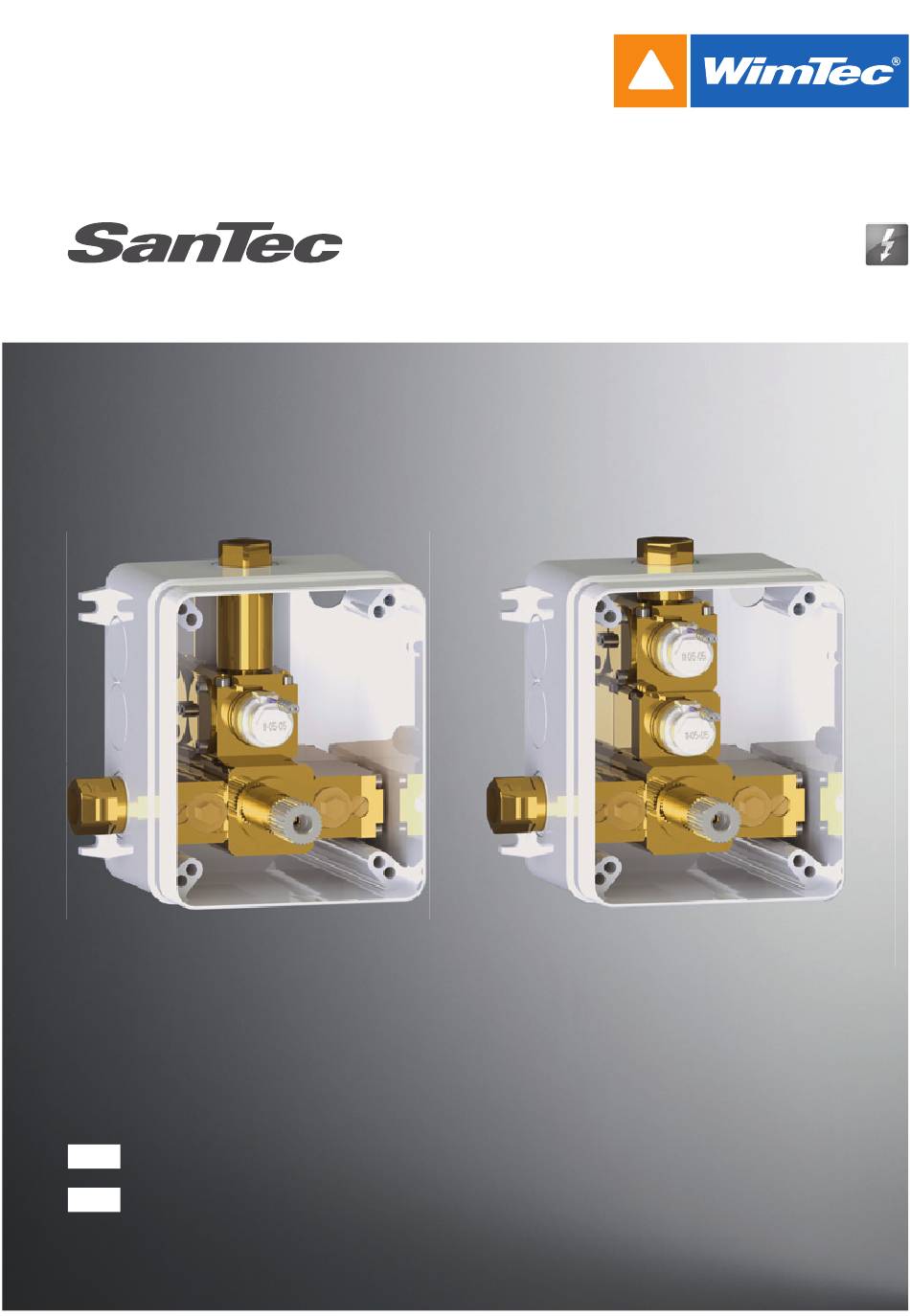

Allgemeine Hinweise: Diese Anleitung ist gültig für folgende Produkte: Art.Nr. 118 889 SanTec S6 Rohbauset Art.Nr. 118 896 SanTec S6 Rohbauset mit thermischer Desinfektion Lieferumfang: Wandeinbaukasten mit 2 Absperrventilen und integrierten Schmutzsie- ben mit Rückflussverhinderer, Thermostat mit Adapter, 1 Magnetventil (2 Stk.
Seite 3
Putz Elektro Installations- rohr für 12 V= R 1/2“ IG R 1/2“ IG min 95 max 120 Art.Nr. 118 896 - SanTec S6 Rohbauset mit thermischer Desinfektion Mauerwerk Abgang Kopfbrause Fliese R 1/2“ IG Putz Elektro Installations- rohr für 12 V= R 1/2“...
S6 Rohbaumontage Bei der Montage zu beachten: max. 10 mm Waagrecht / Lotrecht: Fliesenabstand: Waagrecht / Lotrecht Fliesen Abstand Das Rohbauset muss waag- Der Abstand der Fliesen zum Horizontal /vertical Tile distance recht und lotrecht ausge- Rohbauset darf max. 10 mm richtet werden! betragen! Verdrahtungsschema für thermische Desinfektion:...
Delivery scope: Wall box with 2 shut-off valves and integrated dirt filters and reflux filter, thermostat with adapter, 1 magnetic valve (2 magnetic valves for thermal disinfection), SanTec supply cable 3m for SanTec S6 and cover plate. Important installation notes: Mounting and installation may only be performed by a qualified ser- The “General installation...
Seite 7
Electric installation tube for 12 V= R 1/2“ IG R 1/2“ IG min 95 max 120 Art.No. 118 896 - SanTec S6 fl ush-mount set with thermal disinfection masonry Outlet rain shower tile R 1/2“ IG plaster Electric installation tube for 12 V= R 1/2“...
Seite 8
S6 flush-mount set Observe during assembly max. 10 mm Horizontal / vertical alignment: Distance to tiles: Waagrecht / Lotrecht Fliesen Abstand Align the flush-mount set both The tiles may be no more than Horizontal /vertical Tile distance horizontally and vertically! max.
