Manual
VoiceBridge Set BTS
Applicable for
111-020-03-200-00
VoiceBridge Standard&Bluetooth
Internal Intercom (Staff)
17 ... Volume Adjust
17
18 ... Speaker
18
19/20 ... Green/Red LED
21 ... Microphone
22 ... Connection Sockets
23 ... Power Switch
19
25
20
24 ... 12VDC
21
25 ... Mute Key
24
Mute Key
23
22
Touch to activate/deactivate
the microphone.
LED Status
RED
(int. intercom)
ON
Mic OFF
OFF
Mic ON

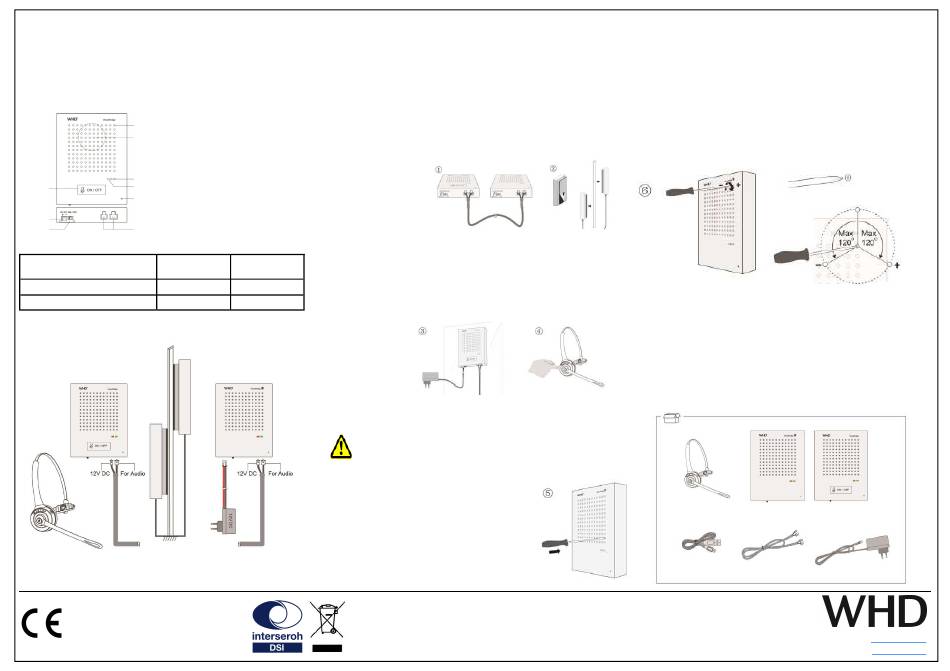

Installation Diagramm
Staff
Input: 100~240V AC, 50/60 Hz
Output: 12V DC, 1A
This product supports all CE-
marking criteria. The declaration
of conformity certificate can be
obtained from WHD.
Operation
Thank you for buying our VoiceBridge Standard&Bluetooth Kit with two intercoms and one headset.
Please read this manual carefully, especially the safety and security information.
Installation and setting
Step 1. Connect the internal unit and the external unit with the cable
supplied.
Step 2. Tear off the protection paper on the back of the units, and
then put the devices to
the right position (as
close as possible to the
speaking persons) and
press them tightly.
Step 3. Connect the internal unit to the power supply and plug in.
The Intercom Kit measures itself briefly on the environment and is
then ready for use.
GREEN
StandBy
Step 4. As the supplied headset was already paired with the external
unit at factory, the headset is ready for use after being turned on. A
Off
double press of the button mutes the microphone or switches it on
again and an
acoustic feedback
sounds.
Customer
The volume can be
adjusted using the
"+/- buttons" on
the headset.
Notes:
Please charge the headset at least one time every 2 months
when you don't use it.
Plug charging cable for charging.
Step 5. If other Bluetooth headset has to be
paired with the external unit, long press the
Bluetooth key at the external unit and it will be
in pairing status as the blue LED flashes fast.
After the new Bluetooth device is found and
connected, the blue LED will be constant on an
the green LED will be off. Totally 7 extra Blue-
tooth headsets can be paired and stored in the
external unit.
WHD are members of the INTERSEROH association.
We participate in the dual system as well as other
industry-specific solutions. Therefore, plastic, metal
and electronic parts can all be recycled.
Step 6. Adjust the volume of the devices with a mini Phillips screw-
driver when necessary.
Note: the volume of the devices has been adjusted before leaving the
factory.
Note:
The external unit for the customer comes with an included infra-
red sensor that activates the microphone, if a person at a distance
from about 80-100 cm is detected.
Contents of package
WHD - Wilhelm Huber+Söhne
GmbH+Co.KG
Bismarckstr. 19
D-78652 Deißlingen
Support +49 74 20 / 8 89-800
Version
(Technical and optical
modifications reserved)
22.10.2020
