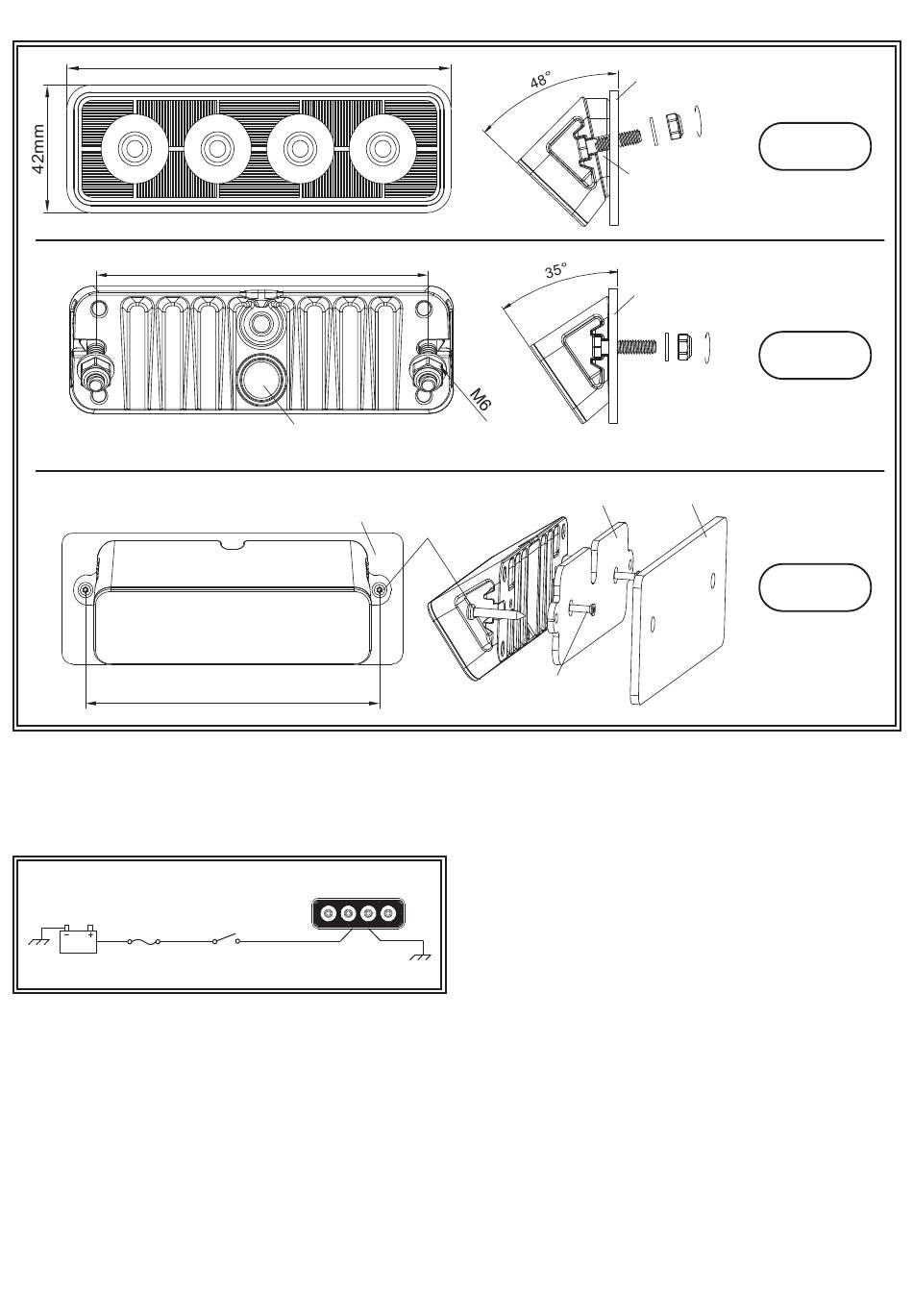

Mounting Assembly
Wiring Instructions:
Black Wire:
Ground
Red Wire:
Connect to fused power
See wiring diagram for further instruction
5A
130mm
113mm
Breather
Vehicle Panel
138mm
Worklamp
Light
RED
Flush Mounting Plate
M4
M3
BLK
Vehicle Panel
Lock
OPTION-01
Rubber block
Vehicle Panel
Lock
OPTION-02
Vehicle Panel
OPTION-03
