3

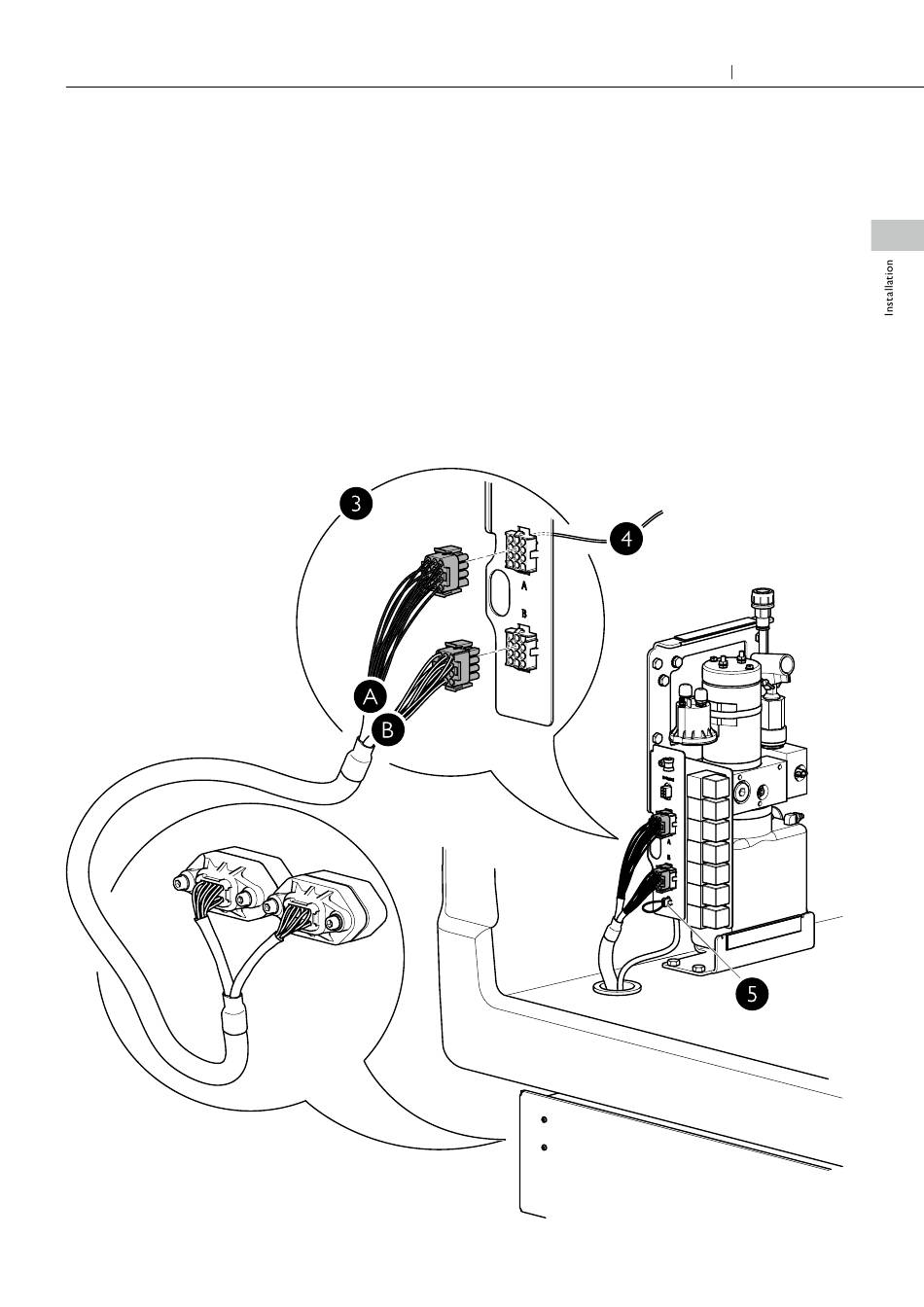

Lay the wiring loom from the cassette to the pump module in an appropriate man-
ner. The connectors are marked A and B. Plug into the corresponding sockets on
the pump module.
4
When the lift is fully inserted into the cassette, wire C36 gives a + (plus) 12V
signal. If a - (minus) 12V signal is desired via the vehicle ignition, see the connection
diagram at the end of this manual.
Note! Cable C36 is only intended for connecting the lamp.
5
Connector to the Interlock kit (option). See separate instruction with the kit.
Wheelchair lifts A-Series, under vehicle
Wire C36
