INSTALLATION

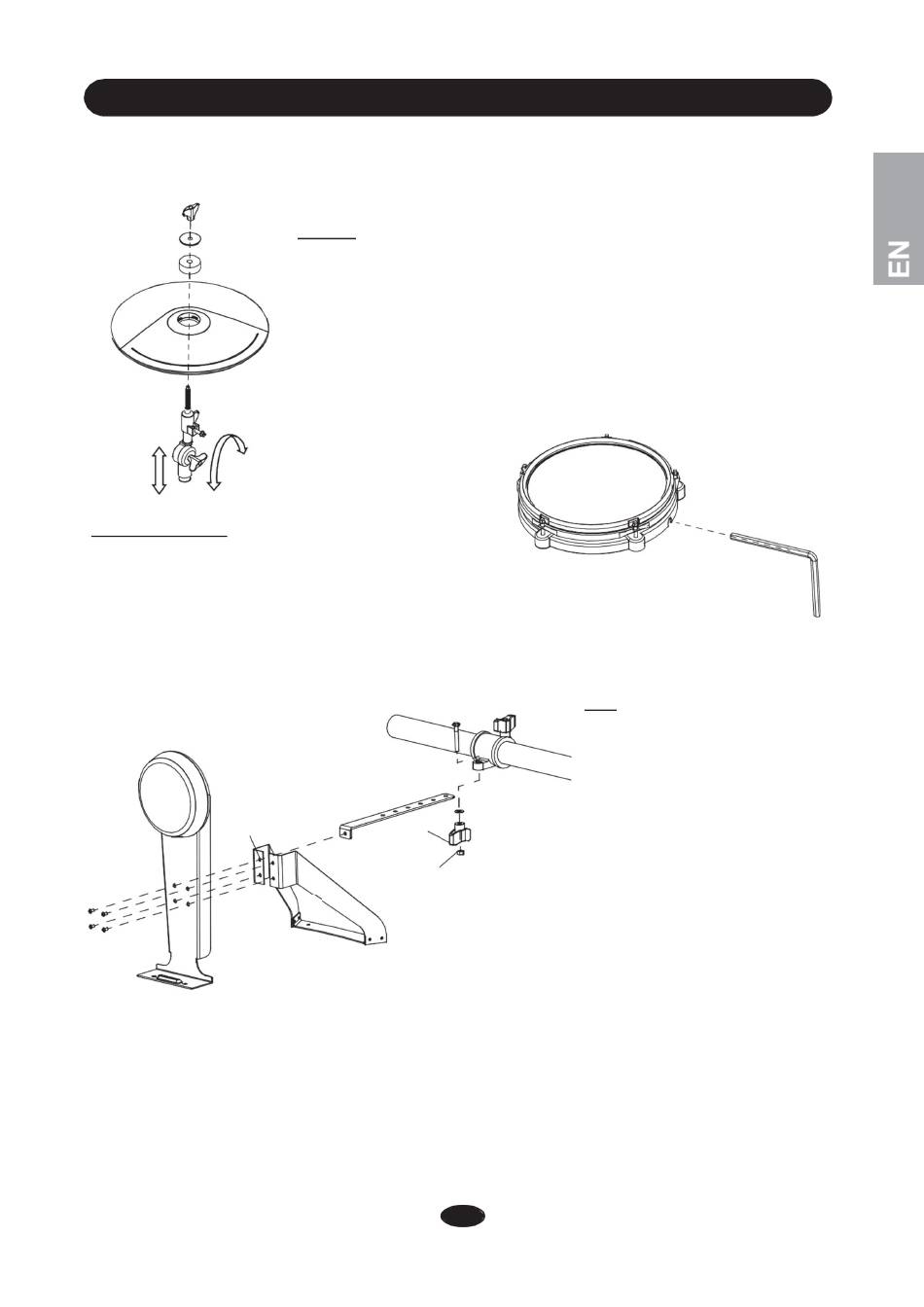

COMPONENTS INSTALLATION - 2
①
②
③
Snare & Tom Pad
1. Adjust the support hex rod to suitable position.
2. Loosen the bottom wing nut of the pad and insert it onto the support hex rod.
Push the wing nut up a little bit and shake the pad to insert it successfully.
3. Fasten the bottom wing nut after the pad has been adjusted to a suitable position.
①
③
Cymbal
1. Remove the wing nut, washer and felt pad from the top of the rod.
2. Put the cymbal pad into the rod, then place back parts removed in
step 1. Fasten the wing nut, but not too tightly. It allows the pad to
pivot a little bit—just like a real acoustic cymbal.
3. Adjust the pad position then re-tighten the wing nut.
④
⑦
⑥
②
8
⑤
Kick
Align Kick pad (1) with support
1.
stand (2), fix 3 of them by screws,
but leave the screw hole on the top
left corner (3).
Remove the screw on support
2.
strip (4), align support strip (4) with
top left screw hole (3), and then fix
them together.
Release screws on one side of
3.
the clamp (5) according to the
picture. Be careful of dropping
components.
Move Kick pad (1) to desired
4.
position and fix support strip (4) to
clamp (5). Don't forget to put the
screw nut (6) in the wing nut (7)
before that.
