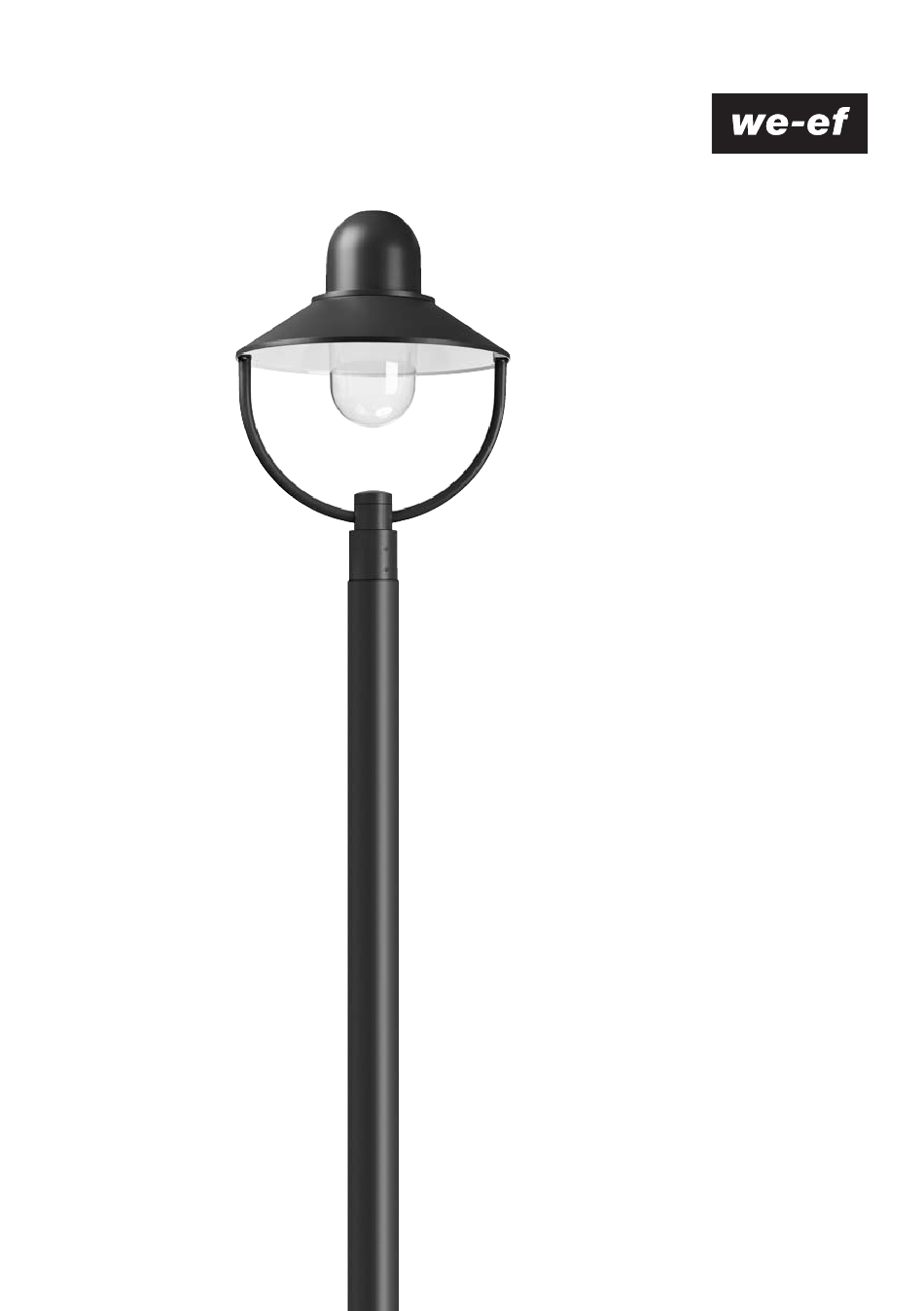

WE-EF LEUCHTEN Montage- und Wartungshinweise für Mastaufsatzleuchte AL534 LED Installation and Maintenance Instructions for Post Top Luminaire AL534 LED...
Seite 2
Lampen / Lamps LED 17W / 24W* Nominalleistung, aktualisierte Daten siehe www.we-ef.com Nominal power, for latest data refer to www.we-ef.com Schutzart / Protection IP55, IK10 Schutzklasse / Class I, II, ta = 25°C Lichtpunkthöhe / Mounting height ... . 3-4,5 m Gewicht / Weight .
Neutral (N) to 3 and Earthing Neutralleiter (N) an 3 Class II Phase (L1) to 1, Control Phase (L2) to 2, 1-10V / DALI / WE-EF Eco Step Dim® Dynamic Neutral (N) to 3 SKI Phase (L1) an 1, Neutralleiter (N) an N, 1-10V / DALI / WE-EF Eco Step Dim®...
Seite 4
All the parts needed for retrofitting with LED are available Alle für die Umrüstung auf LED notwendigen Teile sind als Kit von WE-EF erhältlich. as a kit from WE-EF. Achtung: Die Umrüstung einer Leuchte mit Gasentladung Important: It is possible to retrofit a HID luminaire with LED auf LED ist möglich, wenn die Leuchte ein zweigeteiltes...
Seite 5
Produkthinweis / Überspannungsschutz Product Information / Surge Protection Diese Leuchte ist mit einem Überspannungsschutz Typ 2-3 ausgestattet. Die This luminaire is fitted with a surge protector of Type 2-3. The technical data technischen Daten finden Sie in diesem Fall direkt auf dem eingebauten Gerät. can be found directly on the installed device.
