CableMaster CM600/650
NETWORK / POE DETECTION
• Power on the CableMaster 600/650.
• Connect the CableMaster 600/650 to an acti ve Network
cable or port.
• Use the left or right arrow butt ons to select the Network/
PoE icon and press the enter butt on or press the Network/
POE soft key.

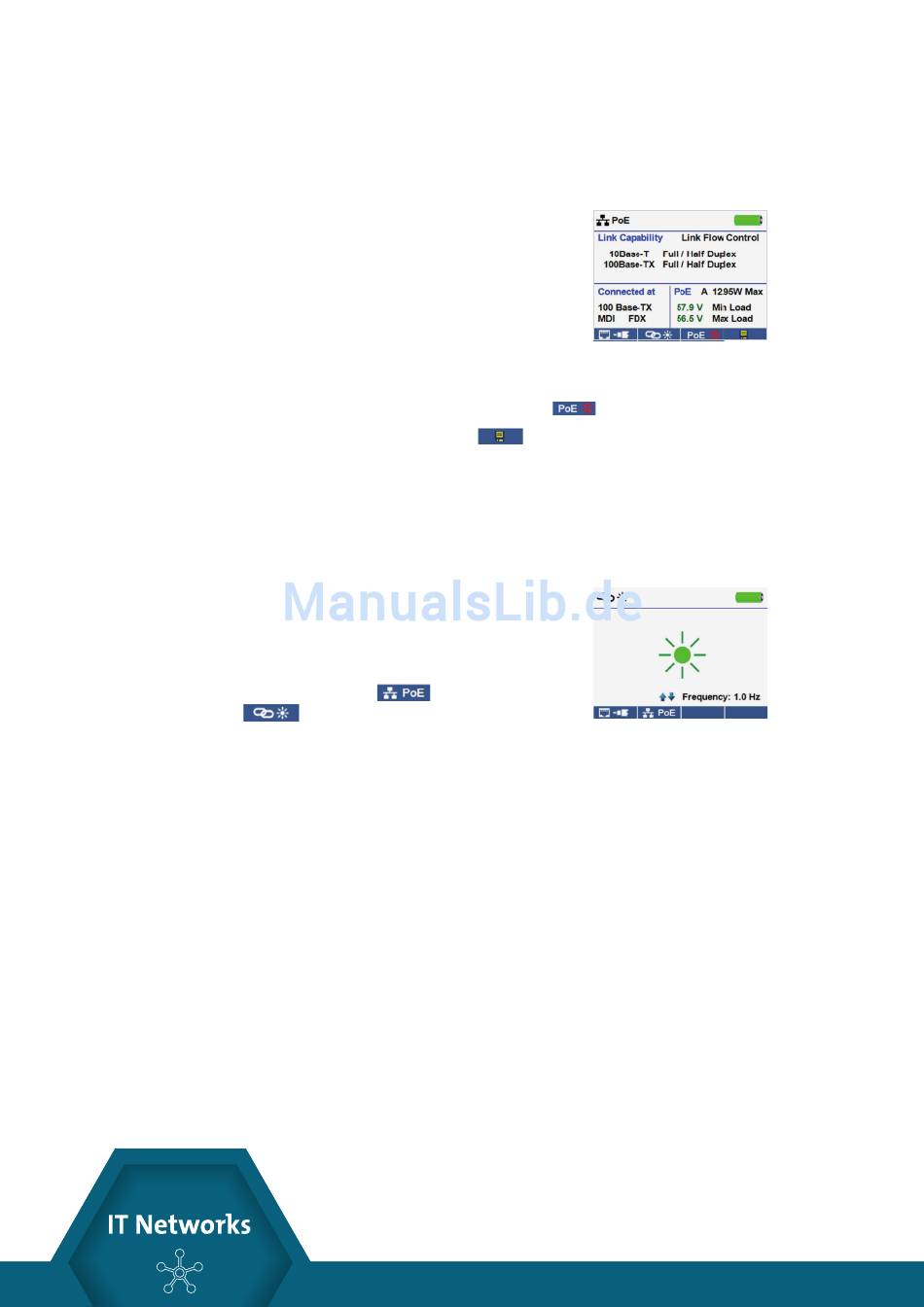

• The CableMaster 600/650 will automati cally detect and display link capability,
connecti on speed, PoE class, and PoE Min/Max voltages.
• To perform a Network Test only, press the PoE soft key.
• To save the PoE data, press the Save soft key.
• Use the arrow butt ons and the enter butt on to name the PoEfile.
• Press the Save soft key to save the PoEfile.

LINK LIGHT

• Power on the CableMaster 600/650.
• Connect the CableMaster 600/650 to an active Network
cable or port.
• Press the Network/Poe soft key
Light soft key.
• The Link Light will automatically begin upon entering the Link Blink menu.
• The Link LED above the LCD screen will flash at the same cadence as the port light.
• Use the up and down arrows to adjust the transmit frequency to suit the
switchcharacteristics.
4 4
then press the Link
