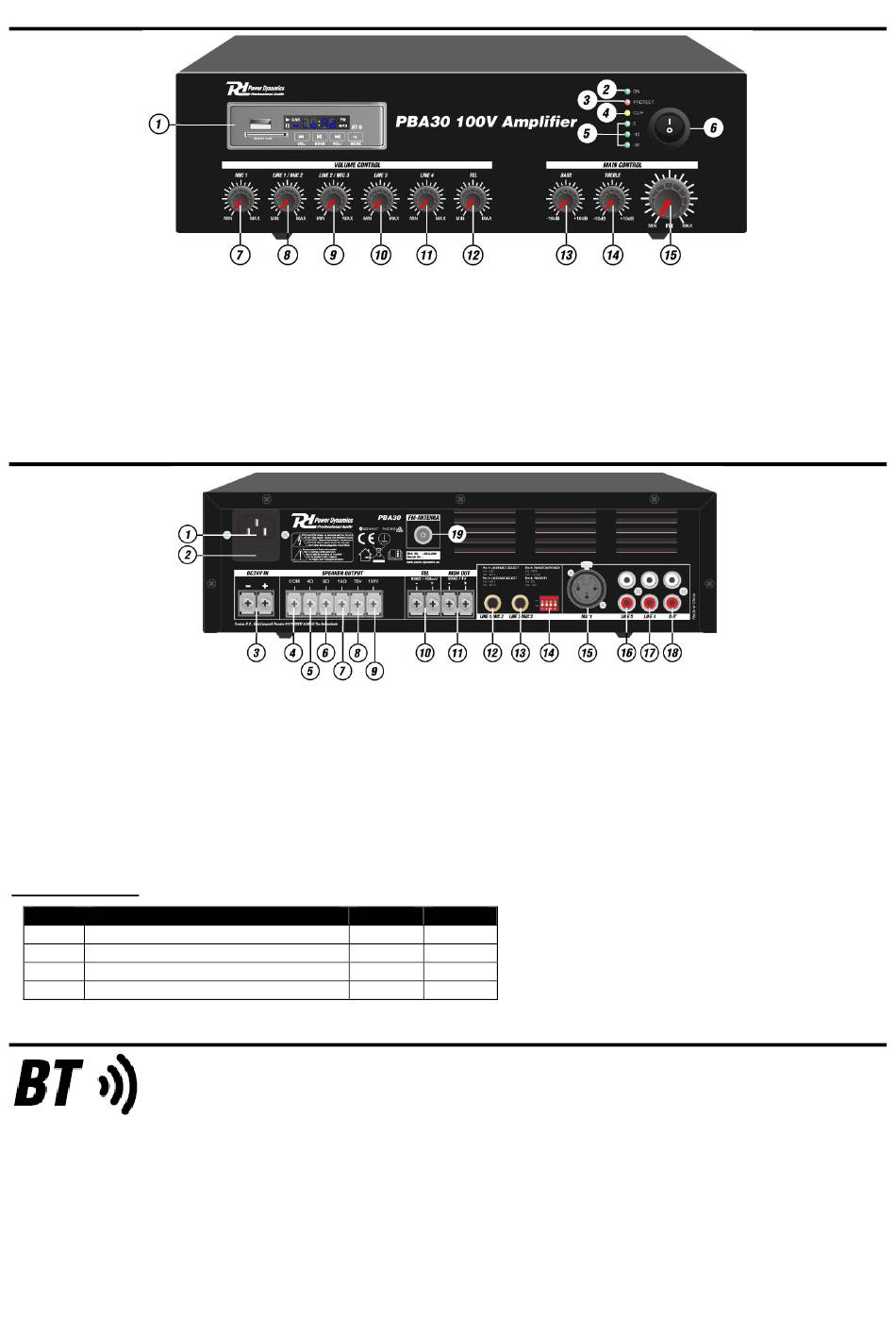

FRONTPANEL
1. Media player
2. LED Power indicator
3. LED Protection indicator
4. LED Clip indicator
5. Output Level meter
6. AC Power Switch
7. Microphone 1 Volume control
8. Line 1 / Microphone 2 Volume control
BACKPANEL
1. AC power Socket
2. AC Fuse
3. Extern Battery input 24V DC
4. Speaker output COM (-)
5. Speaker output 4Ohm (+)
6. Speaker output 8Ohm (+)
7. Speaker output 16Ohm (+)
8. Speaker output 70V (+)
9. Speaker output 100V (+)
10. Telephone input
Dipswitch setting
PIN FUNCTION
Pin 1 Line 1 / Microphone 2 selection
Pin 2 Line 2 / Microphone 3 selection
Pin 3 Phantom Power
Pin 4 Priority
CONNECTING WITH BT-DEVICE
If password is required, you can enter "0000".
Attention: The BT distance is approx. 10 meter without any barrier.
1. Activate the BT-function on your device (Mobile phone, tablet etc.) which you want to play the
music. See the operating instructions for that device.
2. Press the "MODE" button and activate BT-function in your amplifier.
3. Select "PD PBA" on your BT-device and make the BT-connection
9.
10. Line 3 Volume control
11. Line 4 Volume control
12. Telephone Volume control
13. Bass control
14. Treble control
15. Master Volume control
11. MOH output (Music on Hold)
12. Line 1 / Microphone 2 Input
13. Line 2 / Microphone 3 Input
14. Dipswitch for microphone, Line, phantom
15. Microphone 1 Input
16. Line 3 Input
17. Line 4 Input
18. Line Output
19. FM Antenna
ON OFF
Line 1 MIC 2
Line 2 MIC 3
Open Close
Tel Mic
4
Line 2 / Microphone 3 Volume control
power and priority setting.
