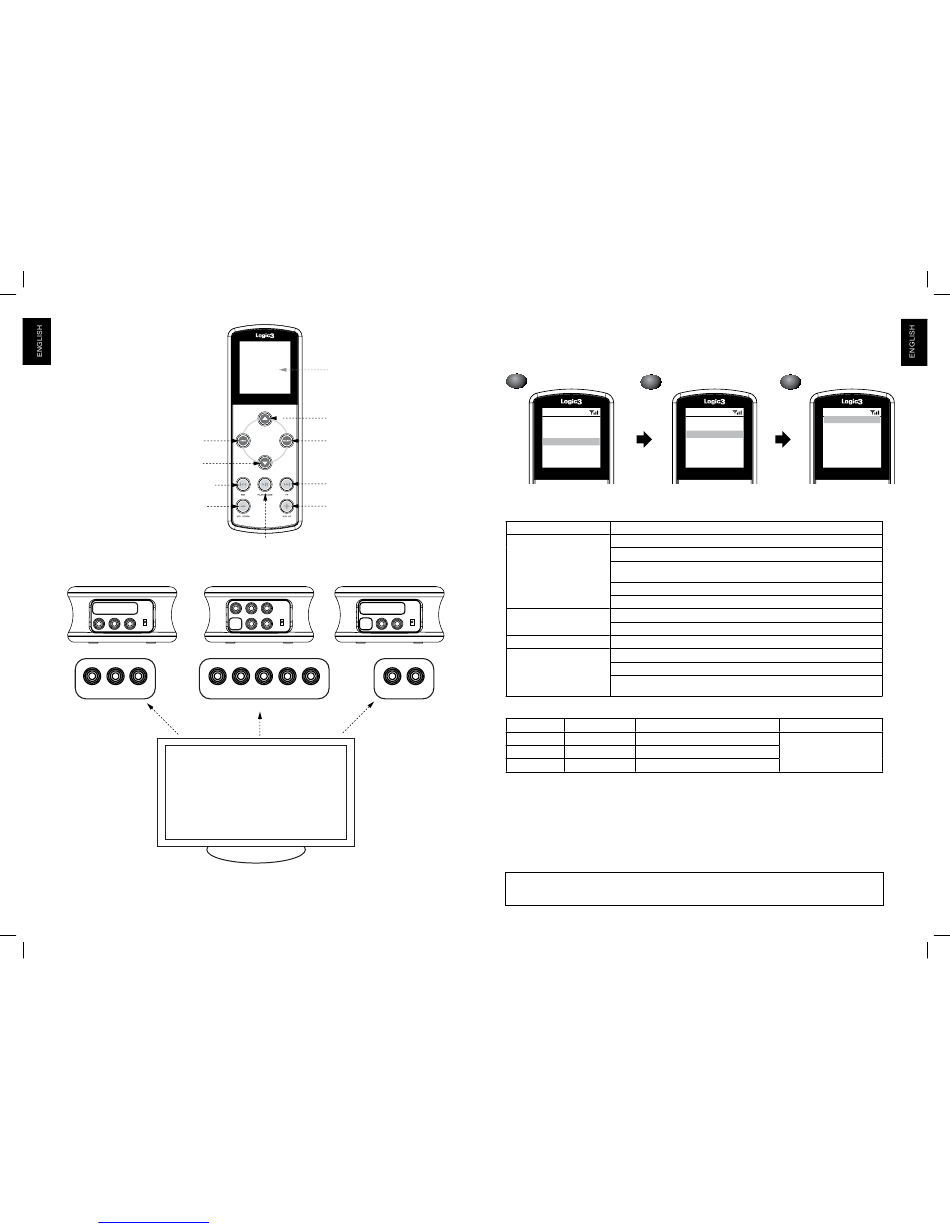

lcD remote control Function
Menu button
Scroll Down
Prev/Rw Search
Volume Down
Video connection of ProDock
CONNECTING C/V
(COMPOSITE VIDEO)
VIDEO l r
AUDIO
AV IN
NOTE: It is important that after connecting your ProDock to your TV, the settings on the ProDock are set correctly
corresponding to your Video connection.
Some TV's may not allow you to play music without the video; if this is the case, please connect the Audio output from the
LCD ProDock to the Stereo System; such as Hi-Fi or Stereo Amplifier.
Downloaded from www.Manualslib.com
Remote screen
(display iPod
navigation menu)
Scroll Up
Select button
Skip/ Fwd Search
Volume Up
Play/Pause
On/OFF
CONNECTING TO Y/Pr/Pb CONNECTING TO
(COMPONENT VIDEO) STEREO AMPLIFIER
l r Y/G Pb/B Pr/R l
AUDIO
COMPONENT IN AUDIO IN
4
manuals search engine
selecting your Video connection on your ProDock
NOTE : As the ProDock can display both Composite and Component Video, the correct output setting must be
selected as shown below.
1
1
Name of iPod
Music
Videos
Photos
Settings
Now Playing
trouble shooting
Problem
No Sound/Picture
iPhone/Pod is not recharging
Cradle will not fix into the Dock
Remote Control is not working
r
AUDIO

spare Part list

Part No.
1
2
3
Please use Item Codes above, when searching for Spare Parts on our Website www.logic3.com
Should you have any setup problems with the LCD ProDock (WIP043) please contact our Technical Support Hotline on +44
(01923)471000 – National/International call rates apply or Email support@logic3.com - Spare parts are available for some
models at our website www.logic3.com
2 2
Settings
Shuffle Songs
Repeat Off
Video Setting
Enter Pairing mode
What Should I do?
Ensure the correct cradle is used with your iPhone/iPod.
Check play status on the iPhone/iPod
Ensure you have selected the correct video settings (refer to Selecting your Video
connection on your ProDock in this manual)
Check your iPod is set to TV out (refer to your iPhone/iPod manual for settings)
Check your format settings (PAL, NTSC refer to your iPhone/iPod manual for settings)
Ensure the correct cradle is used with your iPhone/iPod.
Ensure your LCD ProDock is connected to the AC Mains
Remove any inserted cradles
Replace Batteries
Check the Battery is inserted correctly (Polarity)
Ensure the LCD Remote is paired with the ProDock (refer to Pairing of LCD Remote and
ProDock in this manual)
Item code Item Name
YAD191K AC Power Adaptor (UK 3PIN PLUG)
YCB012 Component RGB Cable
YCB011 Audio/Video Cable
5
3 3
Settings
Video Out: C/V
TV Signal: PAL
Screen: Wide
Fit to Screen: Off
Alt Audio: On
Captions: Off
Subtitles: On
C/V – Composite Video Y/Pr/
Pb - Component Video
Price
For prices visit our website at
www.logic3.com
