Precor Plate Loaded Handbuch Seite 32

3. Insert an M8 x 15 mm buttonhead screw with 9mm flat washer into the
screw hole near the top of the bracket, as shown in the following figure.
Tighten the screw completely.

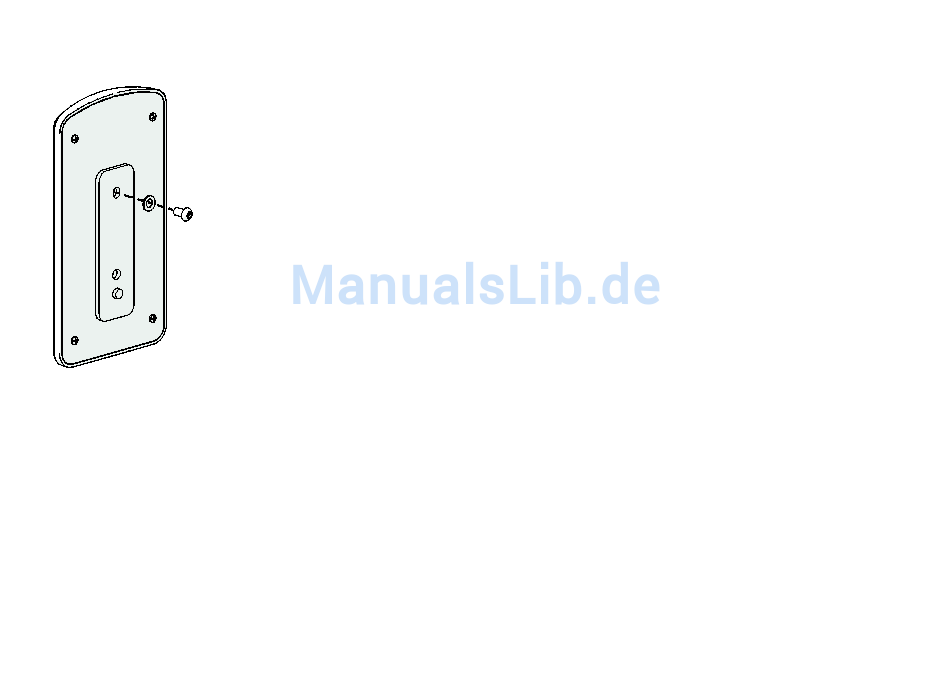

Figure 16: Securing the placard in place
Calf Raise Assembly Guide: Assembling the Equipment
Note: If you are installing labels in a language other than English, remove
the general warning label attached to the equipment. Apply the general
warning label in the appropriate language where the English label was
originally applied.
14
