Attaching the Weight Horn

Once the stop arm is in place and the movement arm is stable, you can attach
the weight horn to the end of the movement arm.
To attach the weight horn:
1. Insert the horn into the outward side of the weight horn fitting on the
movement arm. Slide the weight horn into the fitting until it stops.
2. Insert a M12 x 35 mm socket head machine screw with 13 mm flat washer
through the movement arm and into the weight horn. Tighten the screw
completely.

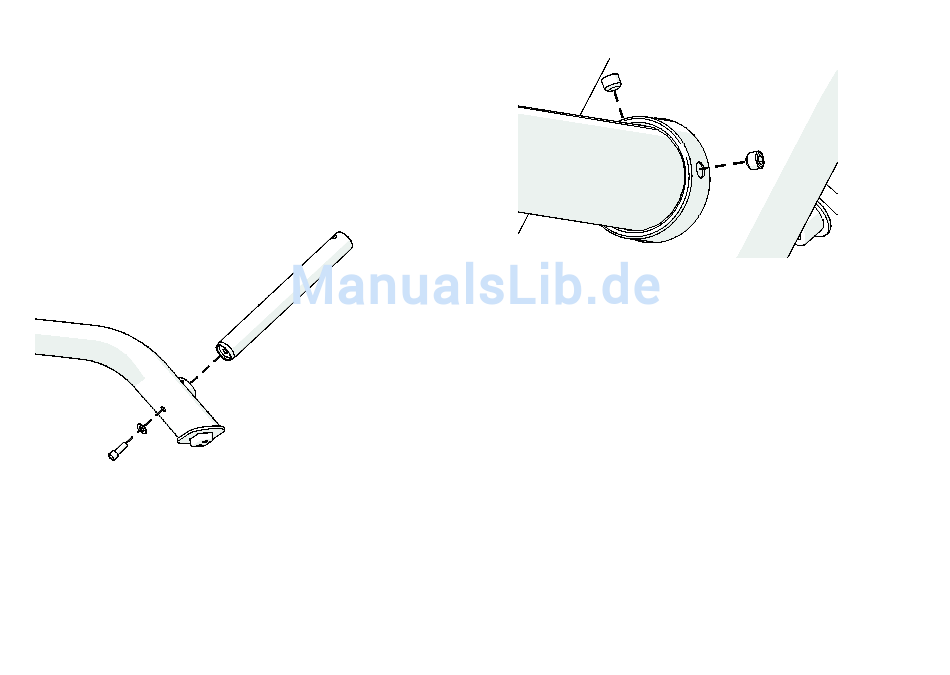

Figure 9: Weight horn attachment
Calf Raise Assembly Guide: Assembling the Equipment
3. Insert two M8 x 6 mm set screws into the screw holes on the weight horn
fitting. Tighten the set screws completely.
Figure 10: Set screw positioning
