Handicare RiseAtlas450T Gebrauchsanweisung

RiseAtlas450T
RiseAtlas625T
SystemRoMedic
TM

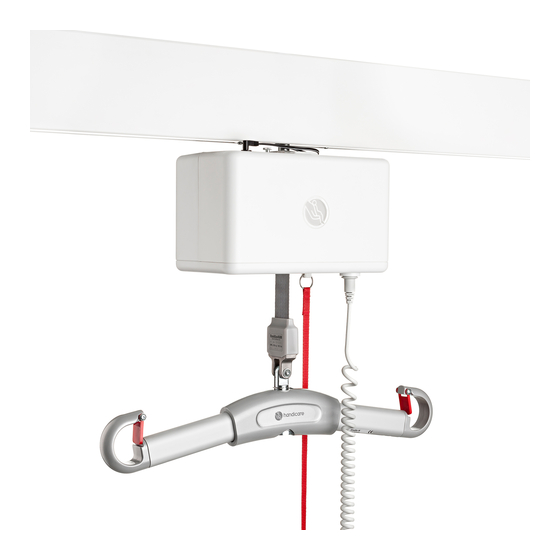

RiseAtlas450T/625T is a safe and easy-to-use stationary ceiling lift unit which can be used in all settings and in all types
of rooms, both on permanent rail systems and on portable, freestanding lift stands. When used with the appropriate
lifting accessories, RiseAtlas450T/625T provides secure, comfortable and individually adapted lifting of users in
connection with seated or horizontal transfers to and from the bed, wheelchair or toilet.
RiseAtlas450T/625T offers a large lifting area and the possibility of both very low and very high lifting, making it an excellent
solution also for lifting from the floor and for gait training and standing training. RiseAtlas450T/625T can also be used for
convenient transfer of users from one room to another. RiseAtlas450T/625T is equipped with a built-in transfer motor.
Functional inspection
Visual inspection
Inspect lift functions regularly. Check to ensure that product is free from damage.
Before use
Ensure that the product is correctly mounted in the trolley.
Check rail end stops.
Check sling bar connection and safety latch function.
Check lifting movement.
Inspect the lift for signs of wear and damage.
Check the hand control cable for signs of wear.
Check to ensure that hand control markings coincide with lift functions.
Check battery charge level.
Always read the user manual
Always read the user manuals for all assistive devices used during a transfer.
Keep the user manual where it is accessible to users of the product.
Under no circumstances may the lift be used by persons who have not received instruction in the operation of the lift.
It is strongly prohibited to modify the original product.
Manual nr: 707-ML Rev 9 Aug 2020
User manual - English
50100058 (RiseAtlas450T)
50100060 (RiseAtlas625T)
SWL:
RiseAtlas450T: 205 kg/450 lbs
RiseAtlas625T: 285 kg/625 lbs
