Eaton ZB4-209-DS2 Montageanweisung

Diese Anleitung herunterladen

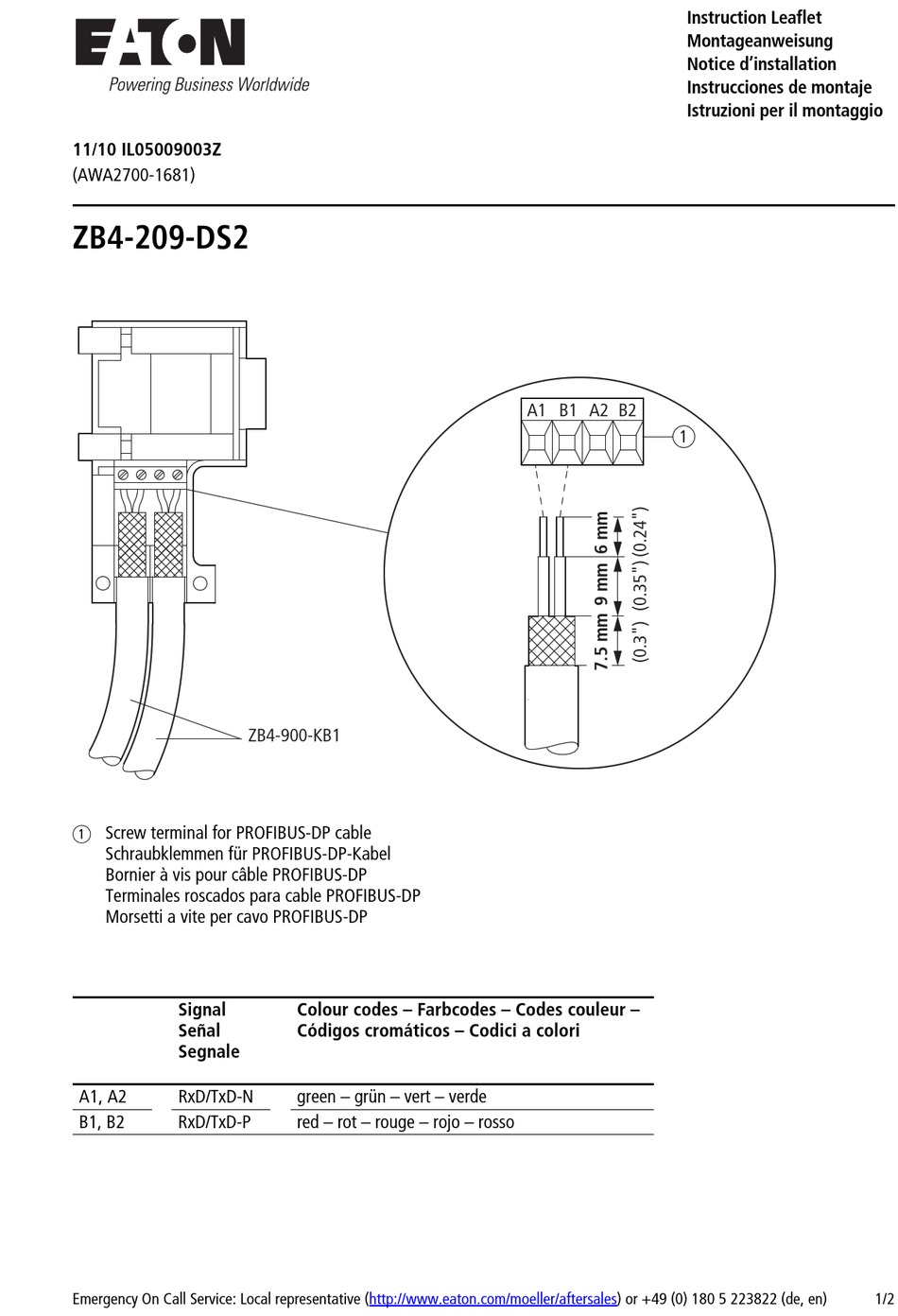

11/10 IL05009003Z

(AWA2700-1681)

ZB4-209-DS2

a Screw terminal for PROFIBUS-DP cable

Schraubklemmen für PROFIBUS-DP-Kabel

Bornier à vis pour câble PROFIBUS-DP

Terminales roscados para cable PROFIBUS-DP

Morsetti a vite per cavo PROFIBUS-DP

Signal

Señal

Segnale

A1, A2

RxD/TxD-N

B1, B2

RxD/TxD-P

Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en)

ZB4-900-KB1

Colour codes – Farbcodes – Codes couleur –

Códigos cromáticos – Codici a colori

green – grün – vert – verde

red – rot – rouge – rojo – rosso

Instruction Leaflet

Montageanweisung

Notice d'installation

Instrucciones de montaje

Istruzioni per il montaggio

A1 B1 A2 B2

1/2

Seite 1 Códigos cromáticos – Codici a colori Segnale A1, A2 RxD/TxD-N green – grün – vert – verde B1, B2 RxD/TxD-P red – rot – rouge – rojo – rosso Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en)
Seite 2 PROFIBUS. Il cavo deve essere collegato sempre a sinistra (vedi contrassegno dello spinotto A1, B1). Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en) Eaton Industries GmbH, Hein-Moeller-Straße 7-11, 53115 Bonn, Germany 11/10 IL05009003Z DE13 DHW/Eb ©...
