1. Safety instructions
NOTICE! The system should not be used for biologically
contaminated water and water of unknown origin.
The device should be installed only by trained hydraulic
service technicians. Use only original spare parts, filter elements
and accessories by Aquafilter .
Complying with the instruction guarantees the following:
- failure-free operation,
- resolving any claims resulting from the malfunction.
1) Read the assembly instruction before installing the system.
2) Check if the packaging contains all elements required for the
installation (see point 5. – packaging content).
3) After the system is installed, and after replacing initial filtration
cartridges, in-line cartridges, RO membrane and when the system
is idle for a long period of time (e.g. during leave)
remember to rinse it and then leave for 5 - 6 hours in order to
activate the filtering environment.
4) Before removing the tubing first take out the safety clip for the
quick connector, and then symmetrically press the collets.
5) While removing and installing the tubing pay particular attention
not to bend them (properly mounted tubing embeds 1,5 cm in the
quick connector).
6) While removing and installing the tubing do not change the
position of the fittings screwed into the casing of the RO
membrane.
7) After installing the tubing in the quick connector secure
the connection with a clip.
8) To seal the plastic threads use only a teflon tape.
Do not use a tow.
2. Filtration technology with a reverse osmosis method
The membrane stops 96% - 99% of organic and non-organic pollutants
dissolved in water, as well as bacteria and viruses. The semi-
permeable RO membrane consists of many layers winded around a
perforated mandrel located inside the membrane. The contaminated
water is pressed under pressure to the Surface of the membrane,
where water particles pass through the microscopic pores in the
membrane. Pollutants are separated and removed to the drain.
3. System technical parameters – general information
Dimensions of the PRO4000W tank (height x diameter)............380 mm x 280 mm
Dimensions of the PRO3200P tank (height x diameter)...................345mm x 235 mm
Capacity of the PRO4000W* tank.................................................................15 litres
Capacity of the PRO3200P* tank..........................................................12 litres
Work temperature.....................................................from 2 C to 45 C (35 F - 113 F)
Work pressure...........................................................2,8 bar - 6 bar (40.6 psi - 90 psi)
Capacity**.................................................................280 l / day (TFC-75 membrane)
Water connection................................................................................................1/2"
* nominal capacity
** nominal capacity
Pump specification
Nominal flow.................................................................................................1.5 l/min
Work pressure..........................................................................5.5 bara (+/- 0,5 bara)
Inlet pressure...................................................................................................2 bary
Amperage..........................................................................................................1.2 A
Power supply.............................................................................24 V/DC transformer
®
O
O
9) Do not use aggressive cleaning agents to clean the housing.
Before inserting a new cartridge make sure the housing is
properly rinsed.
10) When installing a new in-line cartridge in the system remember
about the proper direction of water flow (the proper direction is
marked with an arrow on the label of every in-line cartridge).
11) Before and after replacing the cartridge or RO membrane make
sure you wash your hands.
12) Take out the RO membrane just before installing it in the
housing.
13) In case of any leaks, immediately disconnect the system from
water supply. In case of systems equipped with a pump,
disconnect the system from the electric power supply.
14) The four-way valve should be cleaned every time the initial
filtration cartridges are being replaced, at least every 6 months.
15) Disinfect the system's tank at least once a year. Do not rinse the
elements inside the tank with running water since it might be
contaminated. Disinfection should be conducted with the
PDEZYN2 set offered by Aquafilter.
16) Water after osmotic filtration must comply with proper conditions
(see point 4.). Complaints will not be recognized.
17) The manufacturer is not responsible for any damages resulting
from using the systems for purposes other than water filtration.
Use only the original Aquafilter cartridges and filtering membranes.
When using elements of a different company, the manufacturer is
not responsible for the incorrect operation of the system and for any
damages resulting from it.

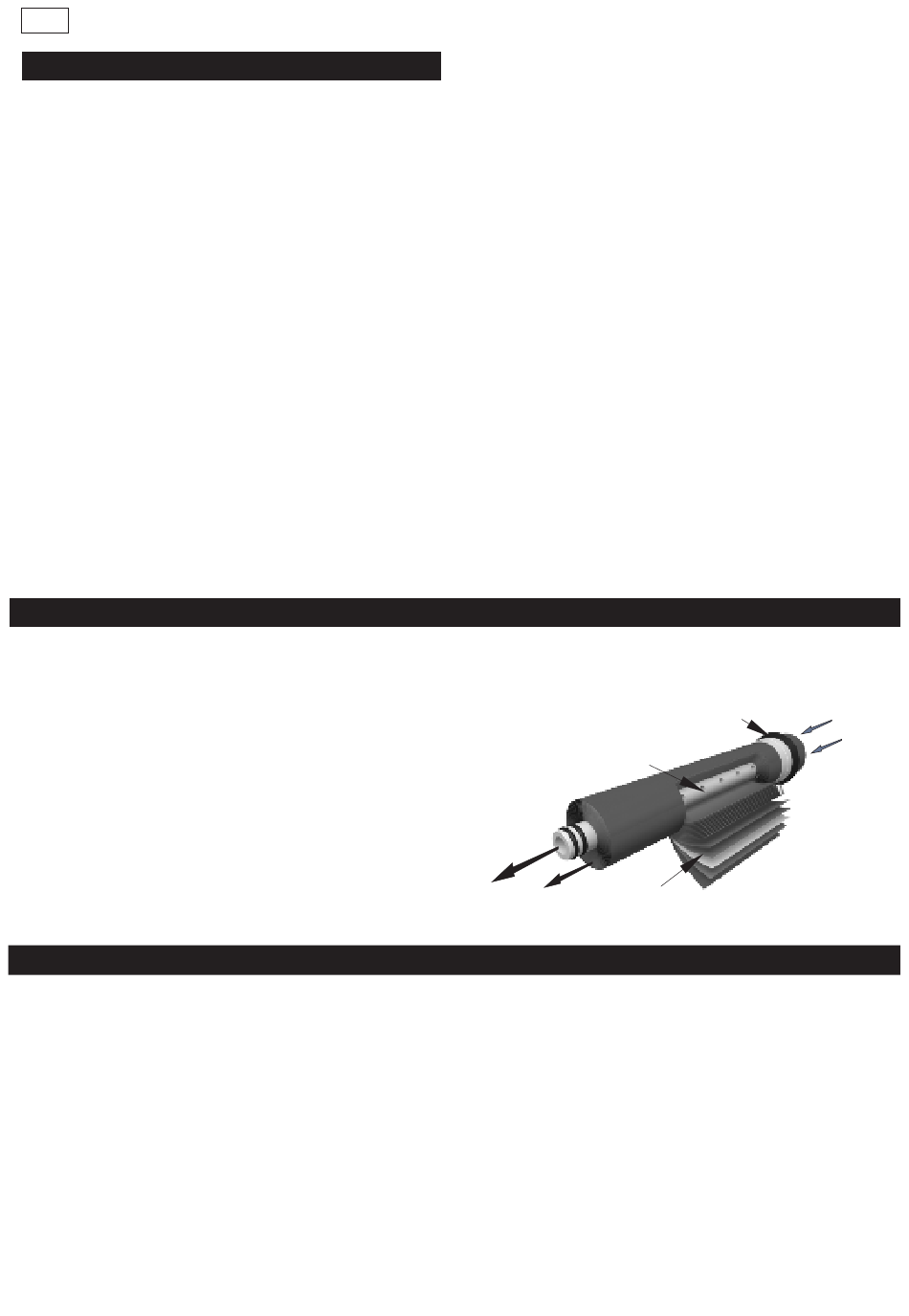

Cross-section of the TFC membrane
PERFORATED MANDREL
PERMEATE
WATER
REJECT
UV lamp specification
Nominal flow.................................................................................................1.9 l/min
Work pressure............................................................................................2 - 5,3 bar
Amperage..............................................................................................0,02A
O
O
Power supply...................................................................230V AC 50Hz transformer
Filament power.....................................................................................................4W
NOTICE! The system will work properly if the pressure limiting valve is installed. For
RX and RP systems it is the PLV-0104-80 model (5.3 bar - 80 psi – not included in the
set). The device protects the system from pressure jumps, water hammer and too
high pressure in the installation. Without the pressure regulator you warranty for
elements working under pressure will be void.
®
SEAL
PERMEABLE LAYERS
WATER INLET
