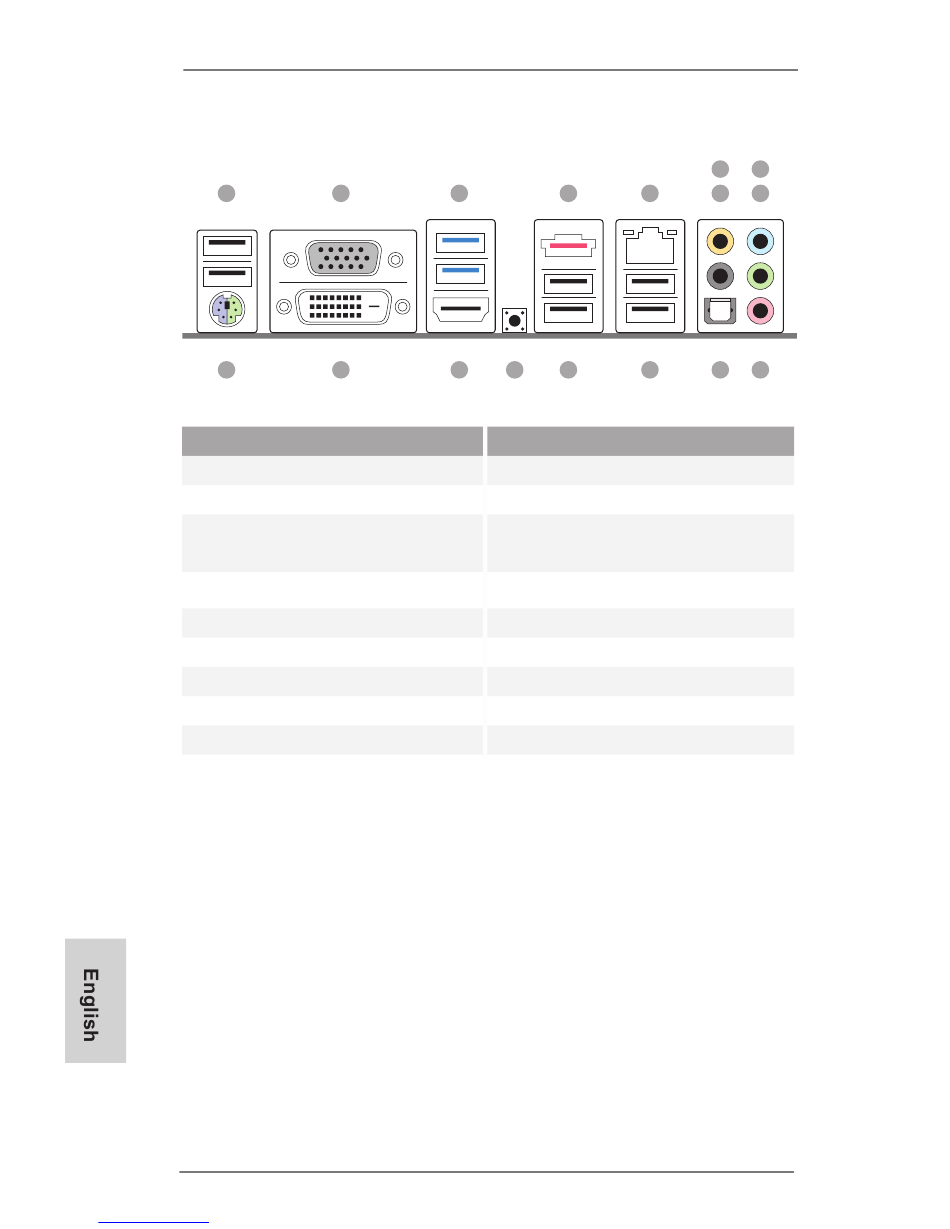

I/O Panel
4
Downloaded from
www.Manualslib.com
1
2
17
16
No. Description
1
USB 2.0 Ports (USB_1_2)*
2
D-Sub Port
USB 3.0 Ports (USB3_34)
3
(AMD A78 FCH (Bolton-D3))
4
eSATA Connector
5
LAN RJ-45 Port**
6
Central / Bass (Orange)
7
Rear Speaker (Black)
8
Line In (Light Blue)
9
Front Speaker (Lime)***
ASRock FM2A78 Pro4+ Motherboard
manuals search engine
3
4
15
14
13
No. Description
10
Microphone (Pink)
11
Optical SPDIF Out Port
12
USB 2.0 Ports (USB_78)
13
USB 2.0 Ports (USB_5_6)
14
Clear CMOS Button
15
HDMI Port
16
DVI-D Port
17
PS/2 Mouse/Keyboard Port
6
8
5
7
9
12
11
10
