CONNECTIONS

4.1

Connection principle

EN
„
„
4.2

Using the optical socket

„
„
„
„
4.3

Using the coaxial socket

„
„
Downloaded from www.Manualslib.com
Make sure the power cord
connection.
During operation, if the cables/wires require to be reconnected, the power plug
be disconnected first. Otherwise damage to the appliance may result.

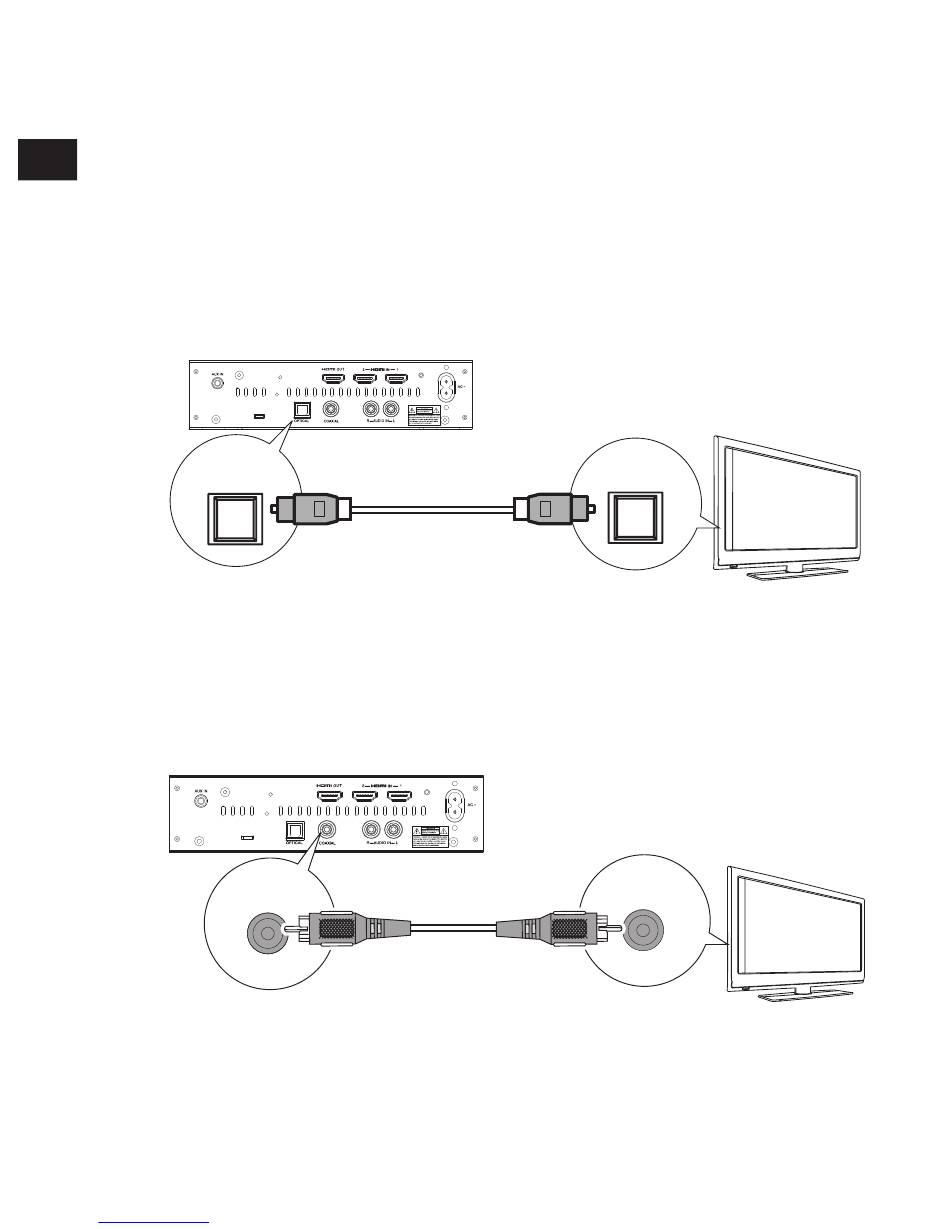

Use an optical cable (not included) to create a digital connection to a TV, DVD, Blu-Ray
player or other suitable devices.
Connect an optical cable (not included).
OPTICAL
(not included)
Note: In order to receive digital signals, you need to activate PCM (Downmix) in the
settings menu of your source device.
The digital optical cable or connector might be labelled as SPDIF OUT or OPTICAL OUT.
Connect a coaxial cable (not included).
COAXIAL
Note: In order to receive digital signals, you need to activate PCM (Downmix) in the
settings menu of your source device.
