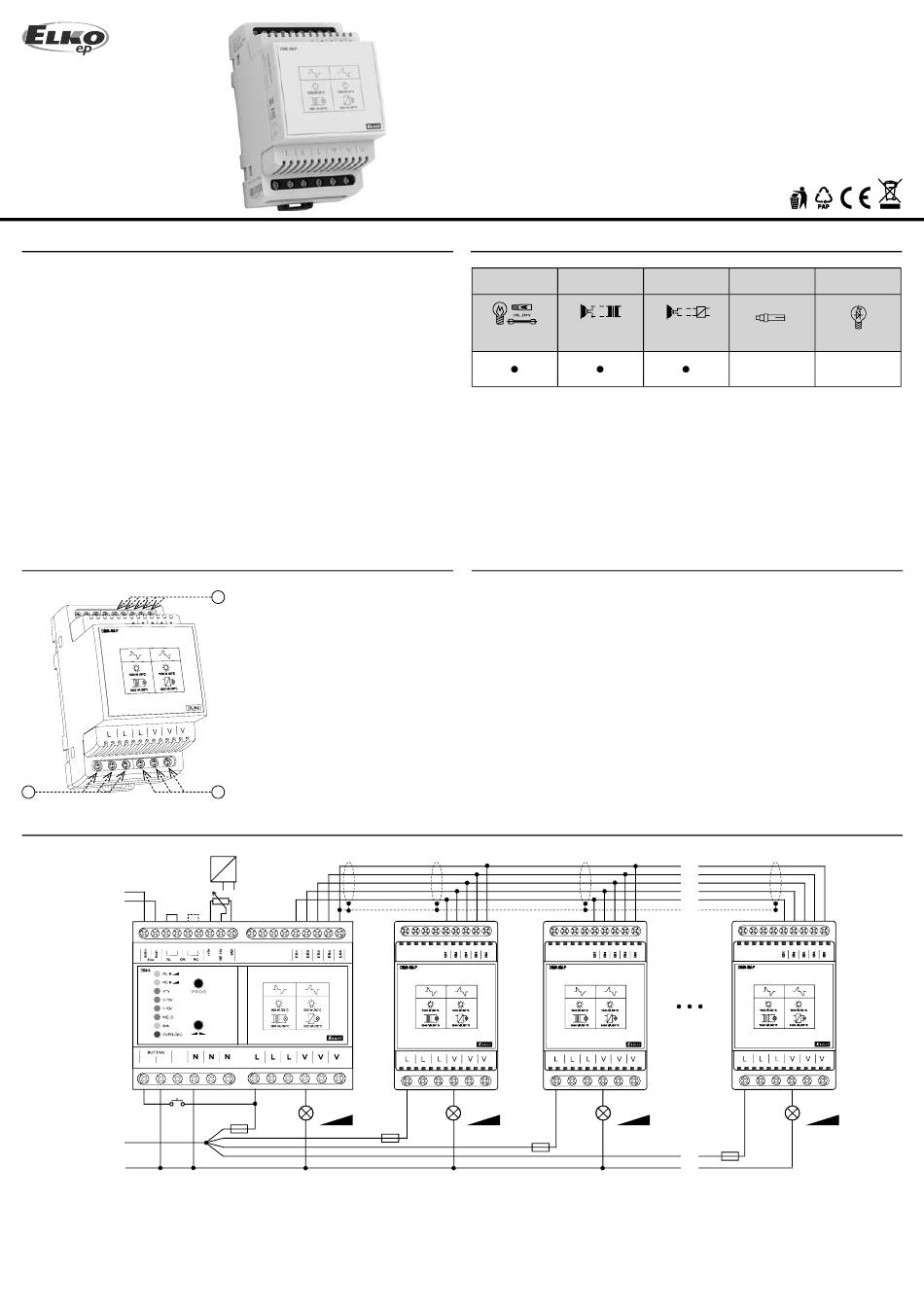

Characteristics
• Expansion power module for DIM-6, selfstand not aplicable.
• DIM6-3M-P provides power increasement (of about 1000 VA) of load connected
to DIM-6 (it means: 2 000 VA (DIM-6) + 1 000 VA (DIM6-3M-P) = 3 000 VA).
• The DIM-6 can connect up to 8 pieces of DIM6-3M-P and control up to 10.000 VA
(the load must be divided into individual power blocks so that their maximum
power is not exceeded).
• Attention - device has to be protected by series breaker unit, compatable to size
of connecting load.
• DIM-6 in installation is cooled b y natural air fl ow. If the natural air fl ow access is
reduced, cooling has to be provided by ventilator. Rated operating temperature
is 35 °C.
• If there are several DIM6-3M-P connected to DIM-6, the distance between them
has to be min. 2 cm.
• Max. lenght of bus EB is 1 m and the connection has to be realized by schielded cable.
Description
2
Connection
BUS+
BUS -
S - S+
L
N
A quick fuse corresponding to the power of each module must be included in the L supply for each module.
1. Terminal for additional modul
1
conductor bar
2. Phase connection term
3. Output terminals
3
0(1)-10 V
50k
2 2
2 2
max. 2 kW
F 10A
R, L, C, LED
L
DIM6-3M-P
Dimmer expander module
Product loadability
a
R
a) lamp,halogen light
b) low-voltage el. bulbs 12/24V wound transformers
c) low-voltage el. bulbs 12/24V electronic transformers
d) energy saving bulbs
e) dimmable LED bulbs
Note
The DIM-6 dimmer (L, V) terminals and the DIM6-3M-P expansion module are three-
-fold for easier multi-part loads.
max. 1 kW
F 5A
R, L, C, LED
F 5A
1 / 2
b c d
L C ESL
-
max. 8
DIM6-3M-P
max. 1 kW
R, L, C, LED
F 5A
EN
e
LED
-
max. 1 kW
R, L, C, LED
