Inhaltszusammenfassung für SIMES S.2498

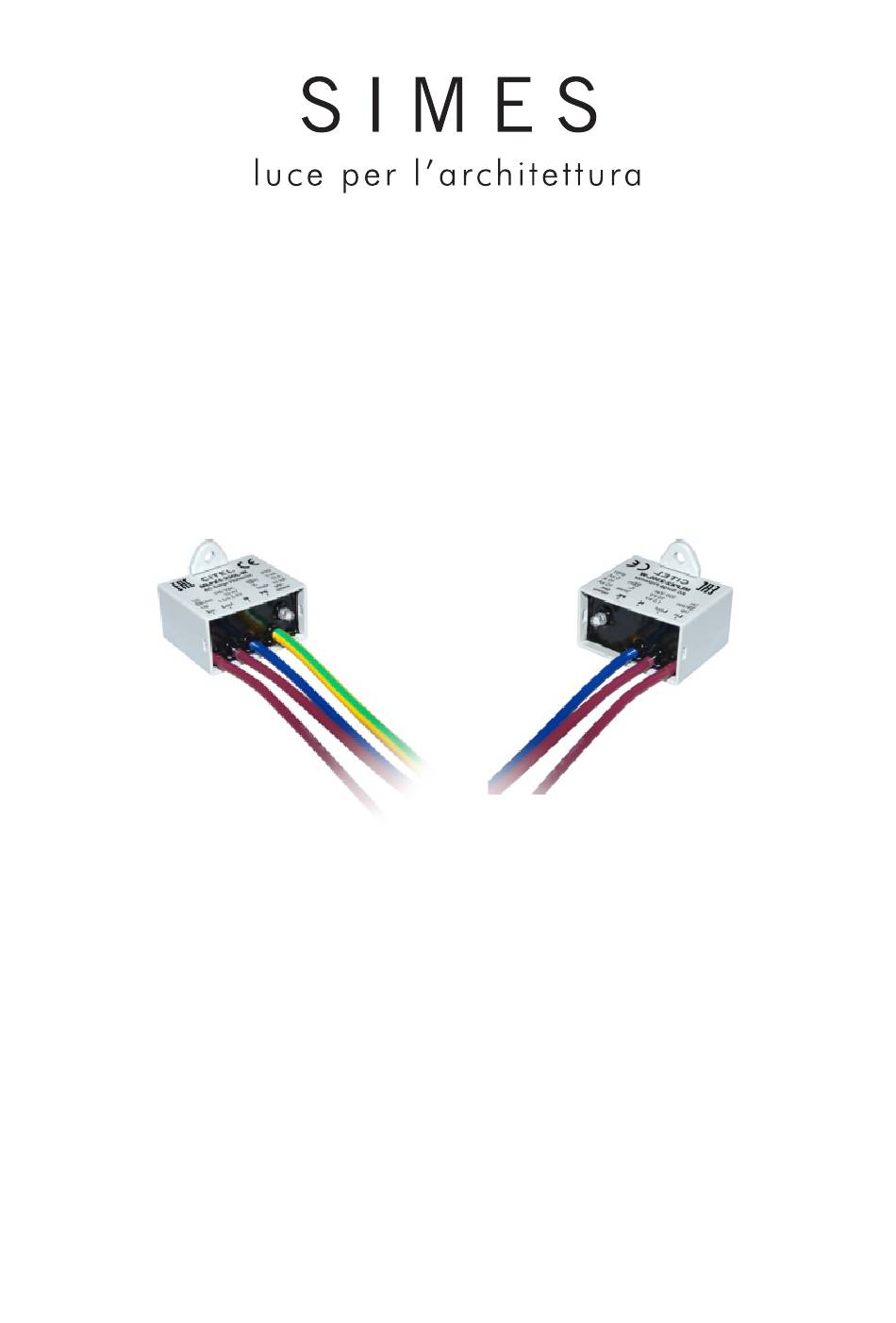

- Seite 1 SURGE PROTECTION DEVICE ISTRSPDIP67 REV. 0 - 05/19...
- Seite 2 S.2498 S.2499 Isolation classification SPD Type 2 + 3 2 + 3 follow test IEC 61643-11 230-277V 230-277V Network 230V 230V Nominal line voltage Max. AC operting voltage L-N 320Vac 320Vac TT/TN AC system TT/TN TT/TN Temporary Over voltage (TOV) Charateristics -5 sec.
- Seite 3 S.2499 S.2498 MLPX2 MLPX1 0,7 kg TABLE 1 S.2498 MLPX1 2000 m max. 6500 ft max. -40/+85°C max. -40/+185°F max. AC network S.2499 230 Vac single phase MLPX2 277 Vac single phase Characteristics Connection by wires Max. Load current 10 A...
- Seite 4 ANY MODIFICATION TO THIS FITTING IS FORBIDDEN WITHOUT AUTHORIZATION ! The safety of the fitting is guaranteed only respecting the electrical European norms and the mounting instructions in this box; therefore it is important to conserve them. The respect of these instructions is very important for the fitting and the main line life.
- Seite 5 - Installation must be performed only by electrically skilled operator. - National electrical installation rules must be followed. - The unit must be used only as surge protector and according the conditions described in this document. - The device must be selected according to the application and the voltage ( refer to table 1 ). - In case of default, the LED turns OFF and the surge protector must be replaced.
- Seite 6 Wall or plate mounting 1.5 mm² 16 AWG S.2498 Possibility to break 2.5 mm² 13 AWG the bracket Lout L (in) L (out) Protected side AC network Wall or plate mounting S.2498 version with cover L (in) L (out) Protected side AC network...
- Seite 7 S.2499 Protected side AC network * FE : Functional Earth S.2499 Wall or plate mounting 1.5 mm² 16 AWG Possibility to break S.2499 2.5 mm² 13 AWG the bracket Lout L (in) L (out) Protected side AC network Wall or plate mounting S.2499 (version with cover) L (in) L (out)
- Seite 8 S.2498 Max. 10mt L (in)L (out) S.2498 SPD LED on = OK LED on and replace by S.2499...
- Seite 9 S.2499 Max. 10mt (out) L (in)L S.2499 SPD LED on = OK LED on and replace by S.2498...
- Seite 10 RAEE - WEEE Directive 2002/96/CE (Waste Electrical and Electronic Equipment - WEEE): information for users The crossed out wheeled bin label that can be found on your product indicates that this product should not be disposed of via the normal household waste stream. To prevent possible harm to the environment or human health please separate this product from other waste streams to ensure that it can be recycled in an environmentally sound manner.
- Seite 12 SIMES S.p.A. VIA G. PASTORE 2/4 - 25040 CORTE FRANCA (BS) - ITALY TEL. +39 0309860430 - FAX +39 0309860439 E-mail: simes@simes.it - http://www.simes.it...
