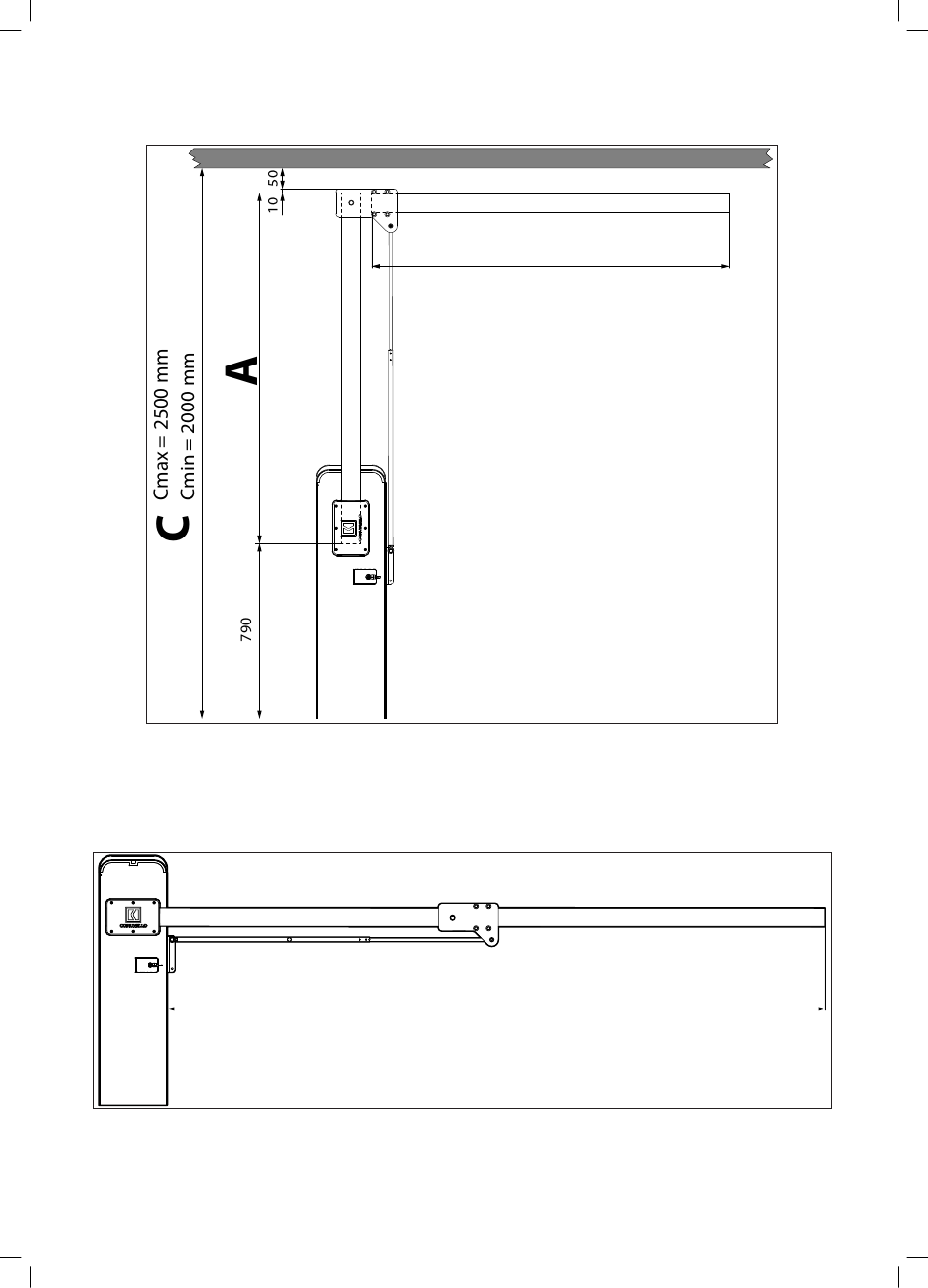

FIG. D - ASTA PIEGATA / BAR - OPEN POSITION
FIG. E - ASTA ALLUNGATA / BAR - CLOSED POSITION
B
A = C - 790 - 60
B = D - A - 208
D
Dmax = 4800 mm
