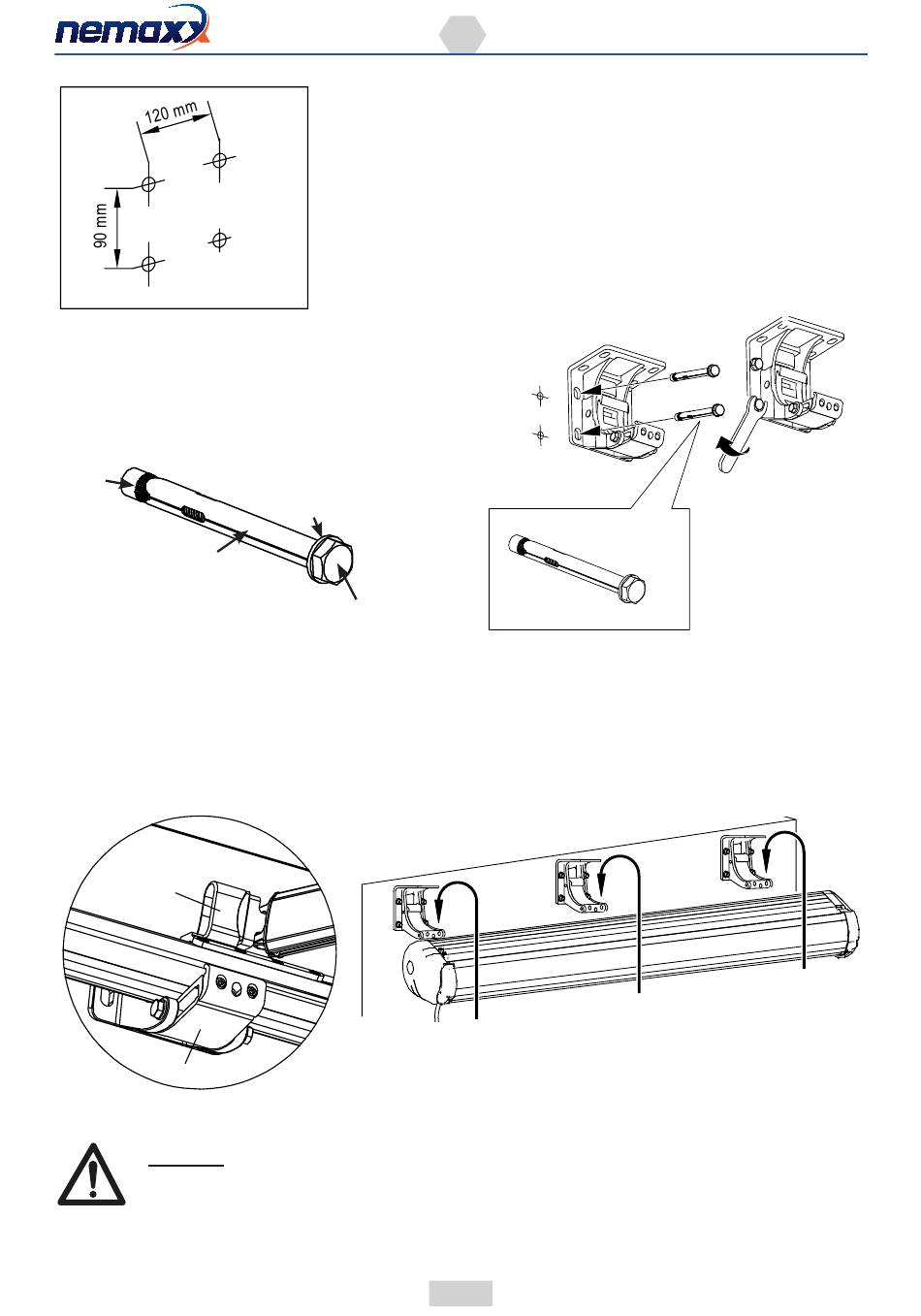

STEP 4
Screw the wall brackets as shown using the bolt anchors.
(Installation sequence: wall bracket, washer, bolt anchor)
nut
expansion bolt
STEP 5
Note: the wall brackets are used to hold the awning in place. Warning : The arm shoulder on both side (7)
must be installed on top of the wall bracket (8). Failure to do so can lead to the deformation of the awning and
reduce the service life of the products.
7
8
With three people, place the awning into the wall brackets (8)
CAUTION
● Pay attention to ensure that the rear fixture rail (12) is hooked into the wall brackets (8).
Align the awning by careful sliding laterally.
EN
washer
bolt
