INPUT POWER
120V 60Hz
100W
H. POWER INPUT: Connect included power cord to a
grounded outlet in accordance with voltage and frequency
ratings listed on rear panel of amplifier.
I. FUSE: With power disconnected, replace a blown fuse only
with one of the type and rating specified on rear panel of
amplifier.
J. POWER: Turns amp on and off. When first turning amplifier
on, leave OPERATE/STANDBY switch (K) in STANDBY (down)
position for 30 seconds while tubes warm, then set switch
to OPERATE (up) position to take amp out of STANDBY
mode. Before turning POWER switch off (down position),
put amp in STANDBY mode for 10 seconds
K. OPERATE/STANDBY: When taking a break from playing
and before turning amplifier off as noted above (J), put amp
in STANDBY mode—which helps prolong tube life—by
setting this switch to the STANDBY (down) position. Return
switch to OPERATE (up) position when resuming play after
a break. Also as noted above (J), amp should remain in
STANDBY mode for 30 seconds after initial power-up.
CAUTION: To prevent electric shock hazard, do not connect to mains power supply while top cover is removed.
Type
Part Numbers
Power Requirement
Power Output
Input Impedance
Output Impedance
Fuses
Footswitch
Tubes
Dimensions
Weight
Downloaded from www.Manualslib.com

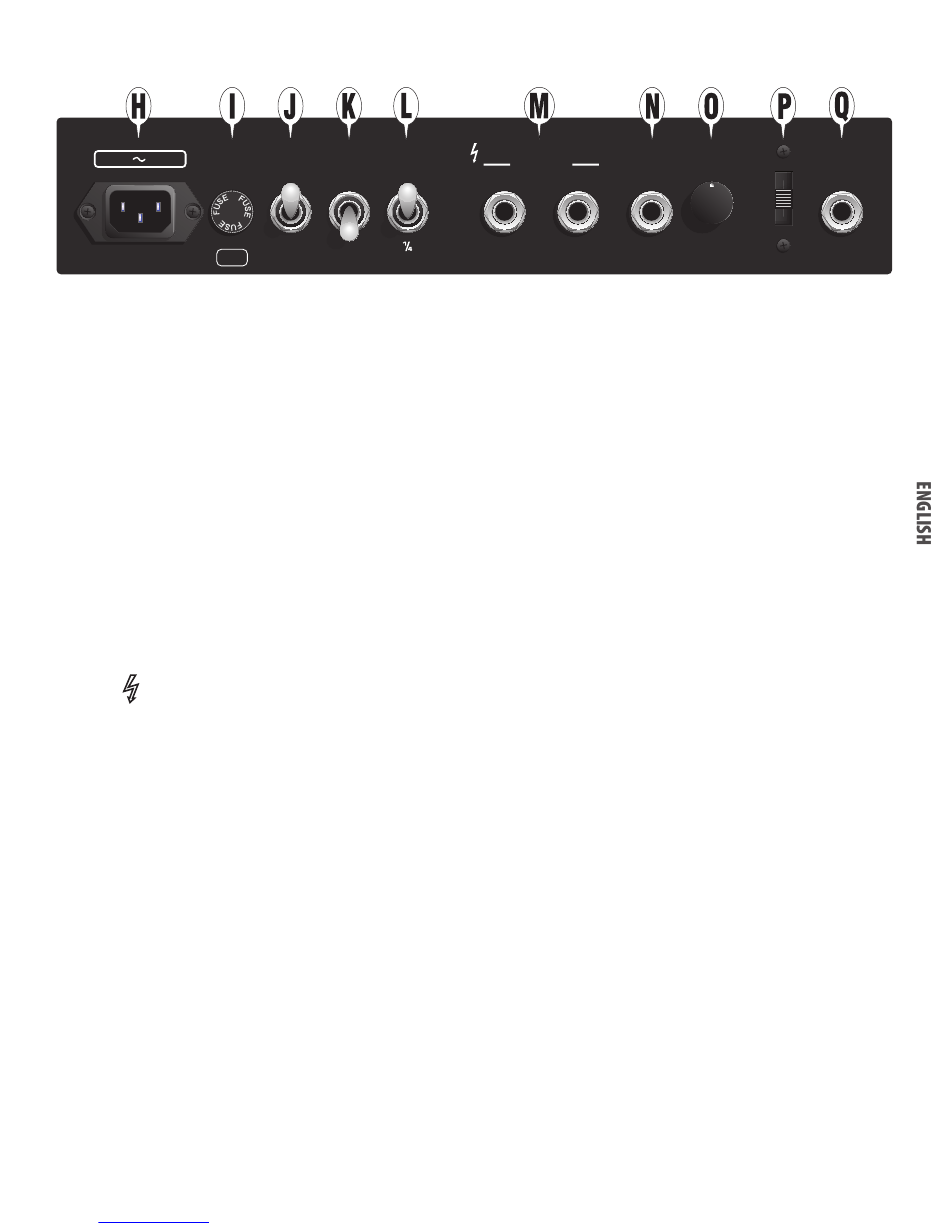

REAR PANEL FEATURES

FUSE POWER POWER LEVEL
ON OPERATE
OFF STANDBY
FUSE
F1.25A L
250V

SPECIFICATIONS

PR 3736
2256000000 (120V, 60Hz)
2256004000 (230V, 50Hz) UK
2256007000 (100V, 50Hz) JPN
100 watts
15 watts RMS into 4, 8 or 16 ohms
>1MΩ
4Ω/8Ω/16Ω (selectable)
100V units, F1.6A L, 250V
Single-button channel-switching footswitch (included)
Two EL84 output tubes, five ECC83S preamp tubes
Height: 7" (17.8 cm)
15 lbs. (6.8 kg)
Product specifications subject to change without notice.
manuals search engine
EFFECTS LOOP
FULL SEND RETURN
L. POWER LEVEL: FULL position provides maximum output
power; 1/4 position reduces power to approximately four watts.
M. EFFECTS LOOP: Connect SEND to effects input and
RETURN to effects output.
N. FOOTSWITCH: Connect included single-button footswitch
here for channel switching (overrides front panel switch).
O. RESONANCE: Adjusts the power amp's low-frequency
response.
P. LOAD IMPEDANCE: Selects output impedance (4, 8 or 16
ohms) to match speaker load.
Q. SPEAKER OUTPUT: For connection to speaker cabinet.
NOTE: A speaker must always be plugged into the speaker jack
when amplifier is on, or damage may occur. Switch amplifier
off or to STANDBY (K) when changing speaker connections or
impedance settings.
2256001000 (110V, 60Hz) TW
2256005000 (220V, 50Hz) ARG
2256009000 (220V, 60Hz) ROK
120V units, F1.25A L, 250V
Width: 12.5" (31.2 cm)
RESONANCE IMPEDANCE
16Ω
FOOTSWITCH
8Ω
4Ω
PANEL REAR EVH 5150 III 15W
7707973000
REV
2.0
2256003000 (240V, 50Hz) AUS
2256006000 (230V, 50Hz) EUR
220-240V units, F0.63A L, 250V
Depth: 6" (15.3 cm)
SPEAKER
OUTPUT
15W
Ω
4 min
