HDX Hard Disk Player Quick Start Guide

1 In s t a lli n g, C o nnect i ng a n d Sw i tchi n g On

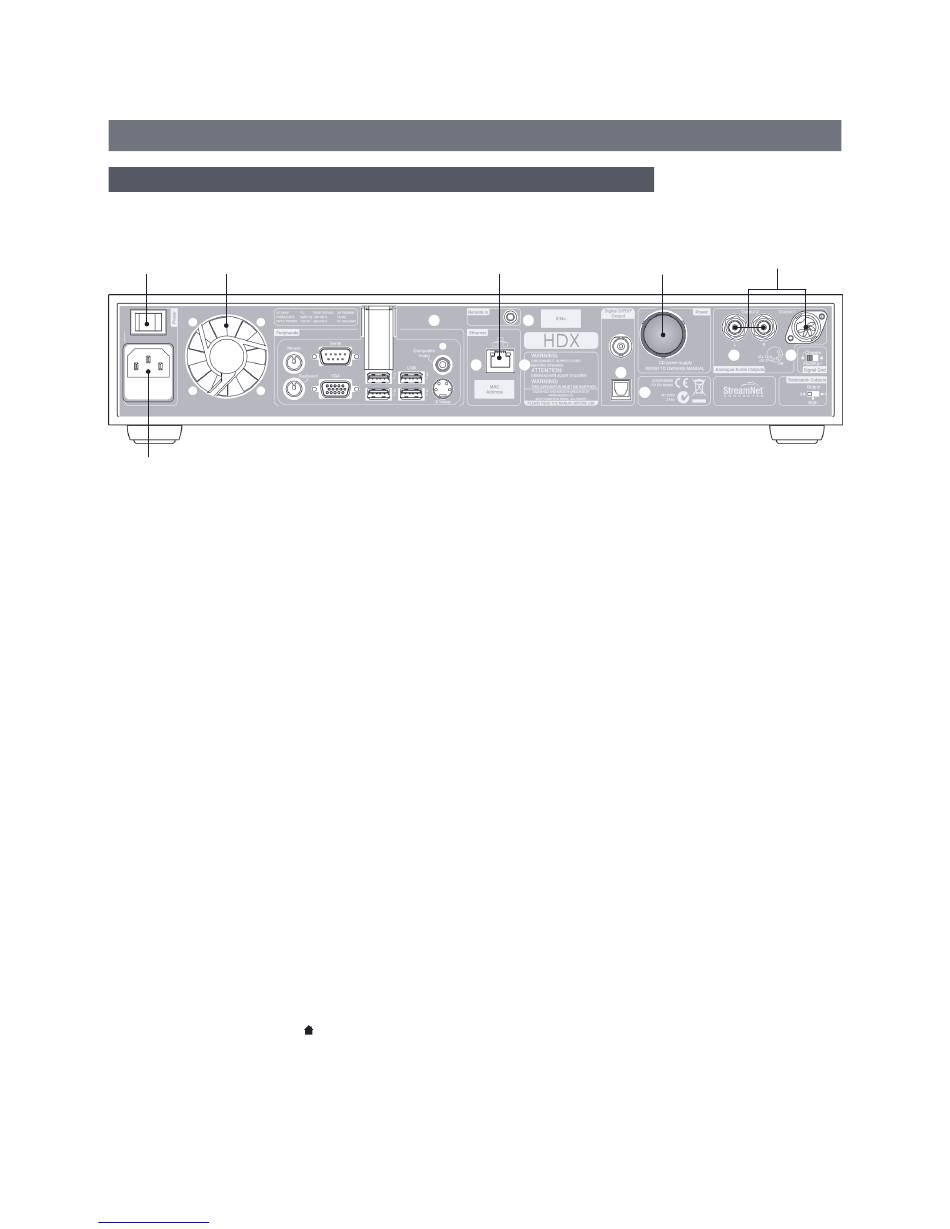

Install your HDX on an equipment stand or rack intended for the purpose. Ensure that the
fan aperture is not obstructed.
power
switch
mains input
Identify the
Connect one or both of the
to an audio system. Set the rear panel
or Phono sockets. Unless connecting to a system that includes another earthed source
component (a Naim CD player, DVD player or AV processor for example), switch the rear
panel
Signal Ground
"hum" is heard through the speakers or if the audio system includes another earthed source
item.
If the HDX is to be connected to a network, use a standard RJ45 ethernet cable to connect
Network
the
Wired network connection is strongly recommended for the most consistent and secure
HDX operation. Ethernet-over-mains hardware may be used and provides a simple and
convenient method of home network connection. However, the presence of network data
on the mains supply may compromise overall system sound quality.
If the HDX is to be used with an XPS or CD555PS power supply remove the rear panel
plug
and connect the power supply using the appropriate Burndy cable. Switch on the
XPS or CD555PS before switching on the HDX. The link plug must be fitted if the HDX internal
power supply only is used.
XPS OR 555PS POWER SUPPLIES.
Connect the HDX
Ensure that the network (if present), and peripheral audio equipment is connected,
switched on and working. Switch on the HDX using the rear panel
After a delay of approximately one minute the user interface
the front panel display.
The HDX display language can be changed. Touch
Menu, followed by
menu by touching the
The HDX is configured when originally shipped not to require any network setup but to
connect to a network automatically. However, if your HDX has been previously used, its
network configuration may have been altered, leaving it unable to connect automatically.
Refer to the HDX Reference Manual or contact your retailer or installer if this appears to be
the case.
