PROLED RF RGBW2 REMOTE CONTROLLER Bedienungsanleitung Seite 7

2. Technical Data
Modell
Input Voltage
Output
Power consumption
Ambient temperature
Dimensions
Net-weight
3. Specifications
1. Nearly smooth adjustment of mixed colour (RGB) by a colour wheel
2. Control of up to 4 zones, separately or parallel
3. 10 dynamic scenes
4. 4 separately dimmable channels
IP 20

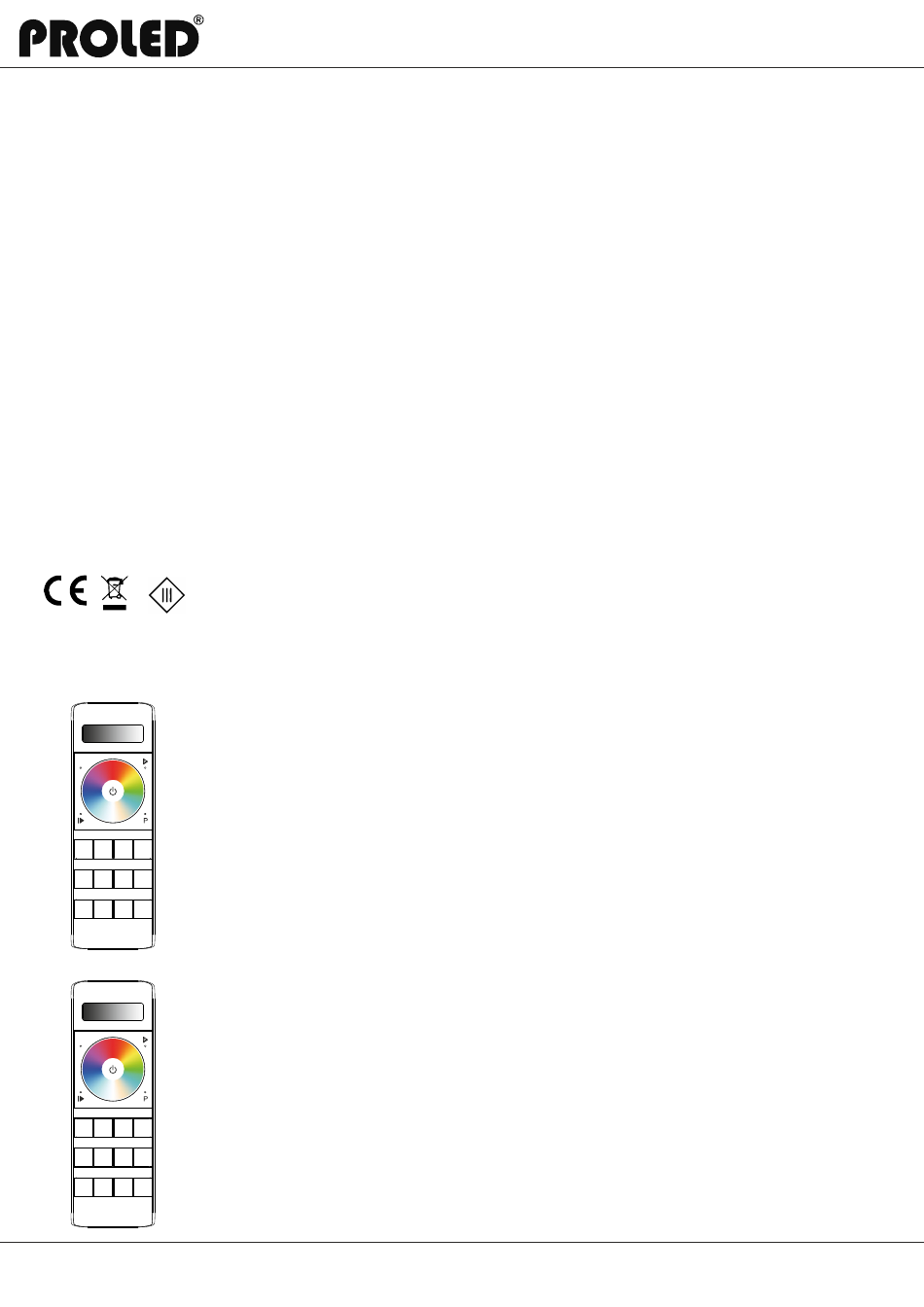

4. Connection to RF Receiver
W+
zone
1 2 3 4
R G B W
scene
S1 S2 S3 S4
W+
zone
1 2 3 4
R G B W
scene
S1 S2 S3 S4
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
07.19. Technical amendments reserved
PROLED RF RGBW2 REMOTE CONTROLLER
3x AAA Battery
Radio Frequency Signal 868 MHz
< 1 W
-10°C – 45°C
153 mm x 52 mm x 20 mm (LxWxH)
100 g
Connecting RF remote controller with RF receiver (Method 1):
a. Connect the RF-receiver according to wiring diagram. Receiver is not part of
delivery. Please order separately.
b. Switch the RF remote controller by touching ON/OFF button.
c. Press learning key (Learning) at receiver.
d. Press desired zone button on the remote control.
e. Touch the colour wheel.
f. Connected LED blink to confirm zone connection.
g. A longer press (>5 sec.) on learning key untill LED blinks confirms, that
remote controllers will be deleted.
Connecting RF remote controller with RF receiver (Method 2):
a. Connect the RF-receiver according to wiring diagram. Receiver is not part of
delivery. Please order separately.
b. Switch the RF remote controller by touching ON/OFF button.
c. Press learning key (Learning) at receiver.
d. Press desired zone button twice on the remote control.
e. Press and hold the same zone button immidiately for around 10 seconds.
f. Connected LED blink to confirm zone connection.
g. A longer press (>5 sec.) on learning key untill LED blinks confirms, that
remote controllers will be deleted.
