Claypaky XTYLOS Bedienungsanleitung

Page Contents
1. Safety information
2
2. Unpacking and preparation
4
3. Installation and start-up
7
7 3.1 Installing the fixture
7 3.2 Connecting to mains supply
8 3.3 Connecting the control signal line: DMX / Art-Net
8 3.4 Switching on the fixture and basic SetUp
4. Data Sheet
10
XTY OS
USER INFORMATION
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the rich
Claypaky range, has been designed and made with total quality
to ensure excellent performance and best meet your
expectations and requirements.

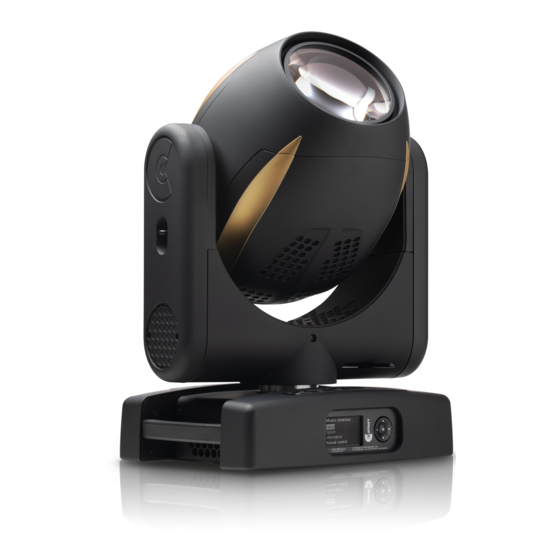

The Xtylos is a compact beam moving light with unique optical and
chromatic characteristics, making use of a tailor-made laser source
(Patent Application filed). This laser source, lasting for 10,000
hours, is enclosed in a reliable, safe and fully sealed module and it
is the powerful engine of an incredible array of colors.
The beam aperture is less than 2° and it can be decreased
further to 0.5°. The Xtylos uses laser technology with RGB
additive color mixing. In contrast to the subtractive mixing used
with discharge lamps, colored light beams are as bright as a
white light beam The range of effects features two gobo wheels
- with 7 rotating gobos and 12 fixed gobos (including 7 beam
diameter reducers) - a wheel with 3 prisms, and a sixteen facet
prism on a dedicated channel which can be overlapped with the
prism wheel.
The Xtylos is definitely the most dynamic light on the market. It
is the first moving head light with a laser light source, and this
opens up new, surprising prospects for the development of the
entire entertainment lighting world.
