iRoom iTop OnWall Anleitung Seite 6

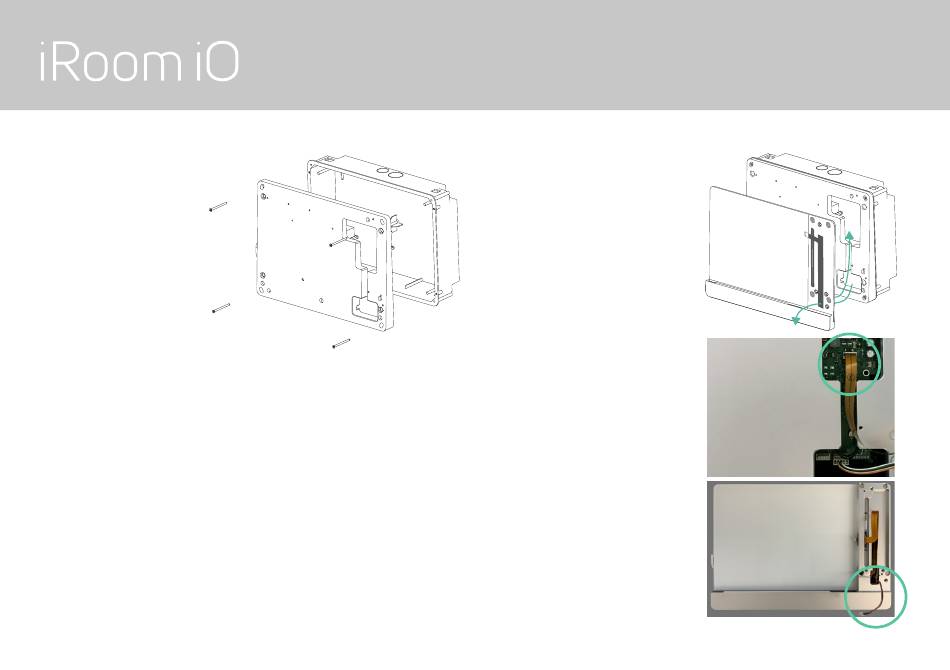

2. Attach the back panel
of the unit to the back
box and tighten the
4 screws (3 x 45) in
each corner.
intelligence. on.
3. Connect the ribbon charging
cable cable that's attached
to the charging connector on
the front panel to the upper
4-pin connector on the circuit
board of the base panel.
4. Align the markers of
connector and port.
5. Feed keypad cable that's
connected to the circuit board
through the opening in the
front panel
Page 6
