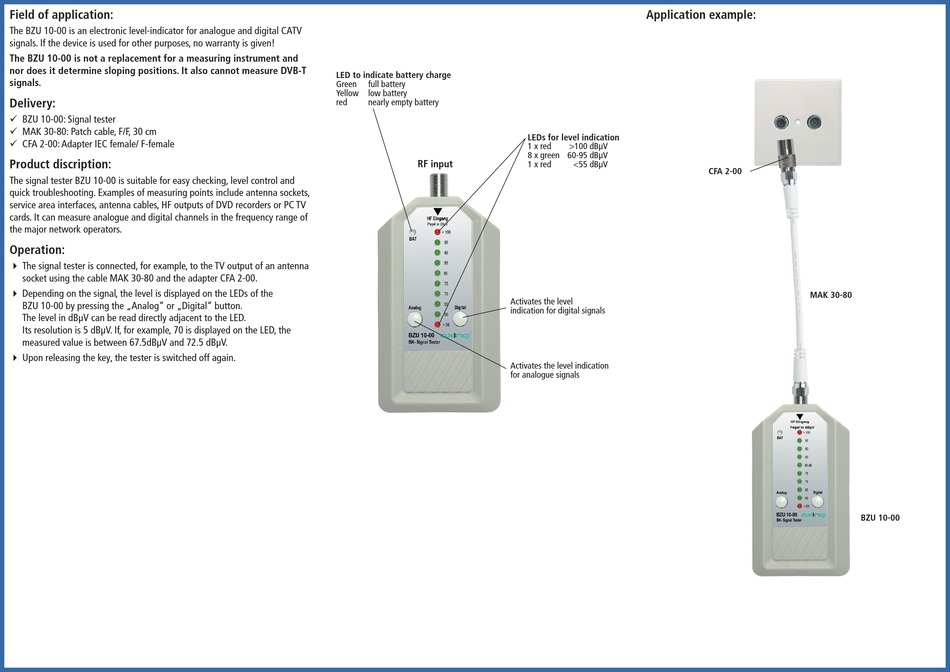

axing BZU 10-00 Betriebsanleitung Seite 4

Field of application:
The BZU 10-00 is an electronic level-indicator for analogue and digital CATV
signals. If the device is used for other purposes, no warranty is given!
The BZU 10-00 is not a replacement for a measuring instrument and
nor does it determine sloping positions. It also cannot measure DVB-T
signals.
Delivery:
9 BZU 10-00: Signal tester
9 MAK 30-80: Patch cable, F/F, 30 cm
9 CFA 2-00: Adapter IEC female/ F-female
Product discription:
The signal tester BZU 10-00 is suitable for easy checking, level control and
quick troubleshooting. Examples of measuring points include antenna sockets,
service area interfaces, antenna cables, HF outputs of DVD recorders or PC TV
cards. It can measure analogue and digital channels in the frequency range of
the major network operators.
Operation:
 The signal tester is connected, for example, to the TV output of an antenna
socket using the cable MAK 30-80 and the adapter CFA 2-00.
 Depending on the signal, the level is displayed on the LEDs of the
BZU 10-00 by pressing the „Analog" or „Digital" button.
The level in dBµV can be read directly adjacent to the LED.
Its resolution is 5 dBµV. If, for example, 70 is displayed on the LED, the
measured value is between 67.5dBµV and 72.5 dBµV.
 Upon releasing the key, the tester is switched off again.
LED to indicate battery charge
Green full battery
Yellow low battery
red nearly empty battery
RF input
Activates the level
indication for digital signals
Activates the level indication
for analogue signals
Application example:
LEDs for level indication
1 x red >100 dBµV
8 x green 60-95 dBµV
1 x red <55 dBµV
CFA 2-00
MAK 30-80
BZU 10-00
